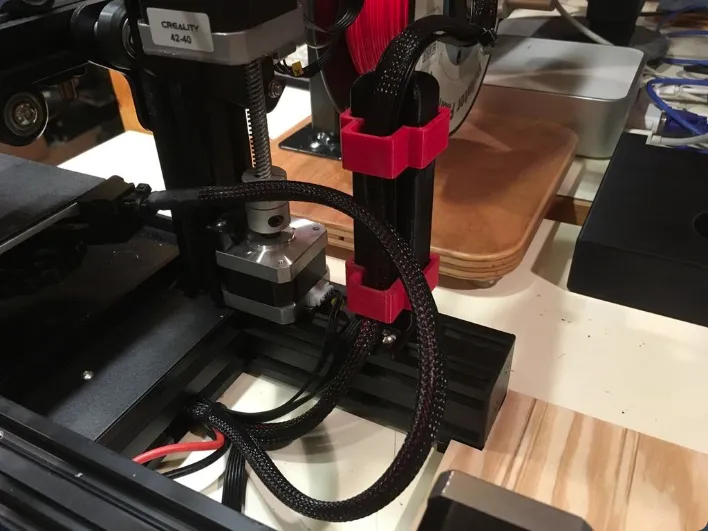

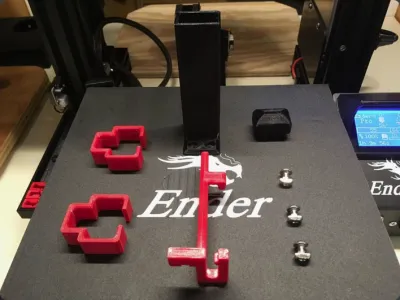

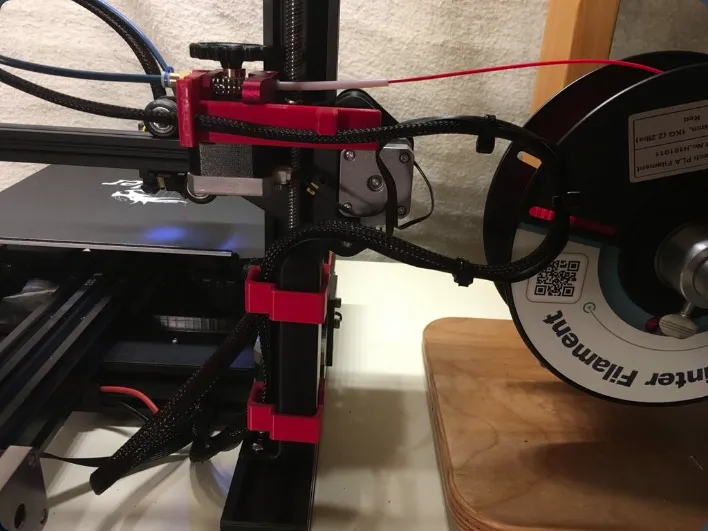

I made this to organize the extruder & hot end cables. Included is a wire holder for those with a metal drive feed kit. The tower should be mounted back 22mm from z axis motor. The hold down bolts are 5 x 8 mm. The screw for wire holder is 3 x 16mm. Cable clamps are positioned to top and bottom of tower so as not to rub against bed wires. A few cable ties gently securing extruder & hot end wires after the wire holder finishes things off. If cable clamps seem too tight make sure ribbon cable has not slipped in between clamp and tower. Have fun!

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
xmrgwx

This model is licensed under the following terms:

Credit must be given to the creator

Models(4)

  • Ender_Wire_Tower_v10.stl

    717.37 KB

    2025-07-17

  • New_Extruder_Wire_Guide_v3.stl

    219.03 KB

    2025-07-17

  • Top_Cap2.stl

    763.56 KB

    2025-07-17

  • Wire_Tower_Clamp_2.stl

    200.86 KB

    2025-07-17
