Fixture for Triton Dial Gauge Indicator
Print Profile(0)

  • Earn points by adding print configurations

1

1

17

2

Released 2025-07-17
Details
Files(2)
Makes & Comments (0)

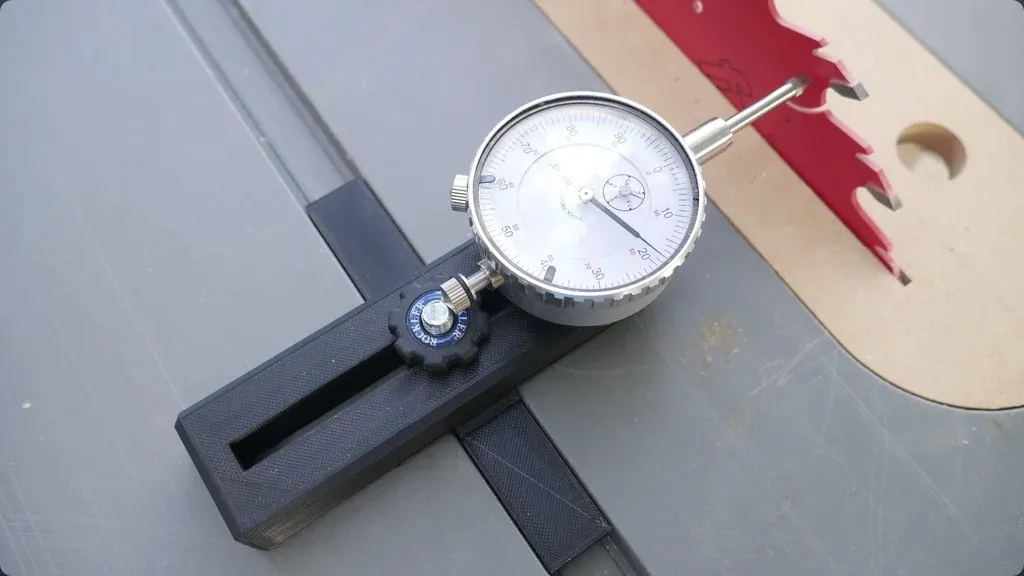

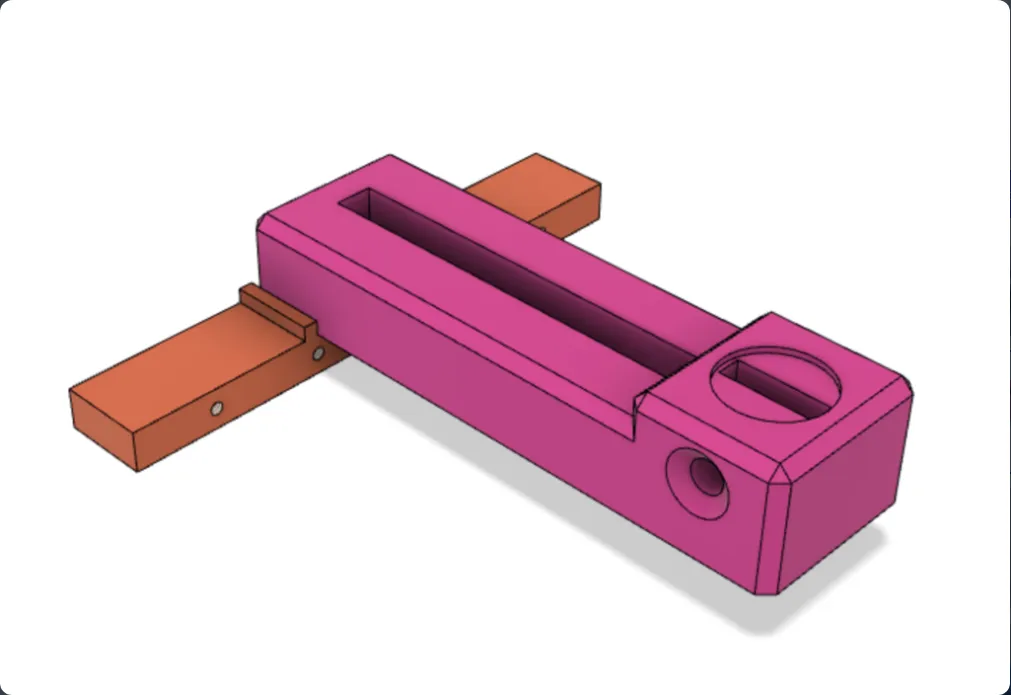

Fixture for Triton dial gauge to be used for table saw calibration. Miter bar accepts 6-32 set screws for exact fit to miter slot. A 5/16" T-bolt is used to connect the miter bar to the main fixture. The gauge friction fits into the fixture, but can be reinforced with a 1/4" flat head machine screw with nut if needed.

Dial Gauge: https://www.amazon.com/Triton-Indicator-0-001-Graduation-Travel/dp/B016R3GLB0/ref=as_li_ss_tl?dchild=1&keywords=triton+dial+gauge&qid=1596074383&sr=8-2&linkCode=sl1&tag=holdentranqui-20&linkId=2f550e45971121b6880ce2e71c228bf8&language=en_US

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
holdy97
Reprint source:https://www.thingiverse.com/thing:4556646

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • miterBar.stl

    39.93 KB

    2025-07-04

  • main.stl

    29.48 KB

    2025-07-04
