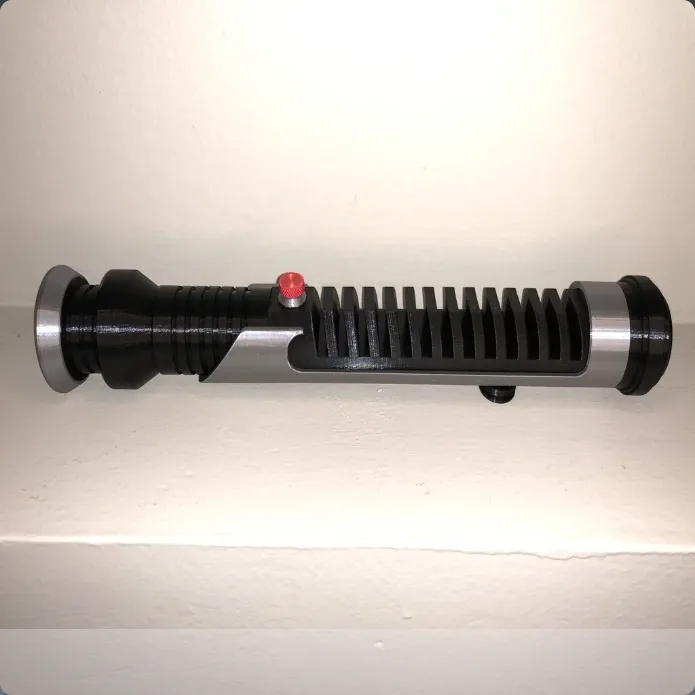

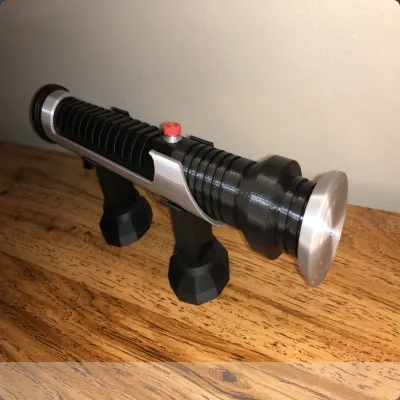

I wanted to share the modified parts I used by CaseStudyno8 to make a more accurate-looking Qui-Gon lightsaber in addition to making some parts cleaner to print. The original model's outer handle was too tall by a few mm's to print on my printer, so while tweaking that, I went around and changed some other items. Here's a quick breakdown:

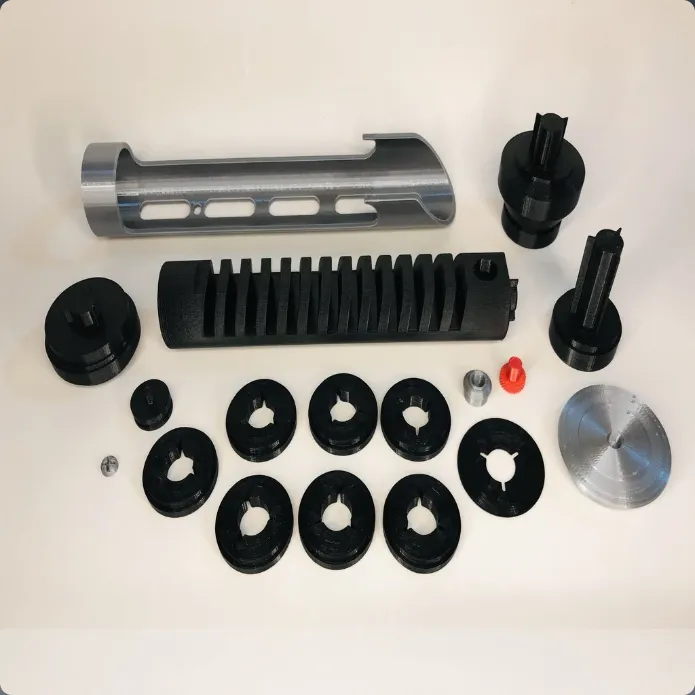

-Outer Handle - changed to 4 cutouts, rounded lower corners, and shortened to fit printer (use supports)
-Handle - curved ridges, shortened to fit new Outer Handle
-On/Off button - added knurling
-On/Off Shroud - added slight lip to raise the button to look press-able (use supports)
-Emitter Alt 2 - added an emitter with a simple hole opening for an alternate look.
-Emitter Bottom Black - added thin black disc that goes immediately below the emitter as an alternative.
-Middle Chamber Spindle and Sections - Uses a spindle with 5 sections as an alternative to removing supports from a solid piece.
-Upper Chamber Spindle and Sections - Uses a spindle with 2 sections, reshaped the chamber slightly to balance the overall width.
-Black Button Outer/Inner - Added a screw for a different look.
The pommel is unaltered.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(13)
- Qui-Gon_Jinn_LS_Mod_-_Black_button_inner.stl
116.59 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Chamber_section_x7.stl
64.14 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_black_button_outer.stl
58.58 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Emitter_alternative_2.stl
257.99 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Emitter_bottom_black.stl
140.12 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Handle_outer_revised.stl
142.07 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Handle_revised.stl
575.77 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Mid_Chamber_spindle.stl
234.60 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_On_Off.stl
519.22 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_On_Off_shroud.stl
96.18 KB
2025-07-14
- Upper_Chamber_section_x7_revised.stl
64.14 KB
2025-07-14
- Qui-Gon_Jinn_LS_Mod_-_Upper_chamber_spindle.stl
298.42 KB
2025-07-14
- Qui-Gon_Pommel.STL
134.55 KB
2025-07-14
