UPDATE March 19 2023:

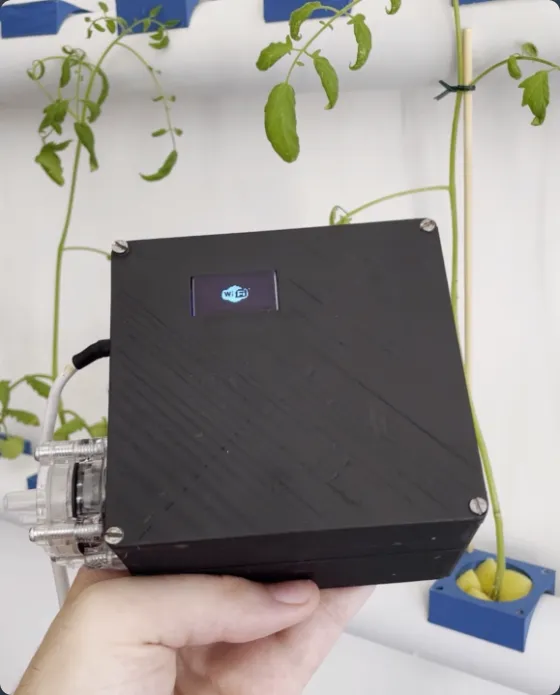

My original project simply featured a fish tank water pump and Air pump which were manually turned off and on every day, since then I have created a box to hold the water pump, air pump as well as a micro-controller to automate the daily switching on and off of the pumps. These newly added 3D files are the:
- Automation Box Lid
- Automation Box Middle
- Automation Box Base
Please note that these files are not needed if you plan to run the hydroponics on a simple fish tank water and air pump, you'll only need to print these if you want to automate the care of your hydroponics. Info on the hardware I used and my code can be found in the link below (if this link doesn't work try a different browser, I have had reports that it doesn't work on Brave but should work on Firefox, Edge or Chrome)

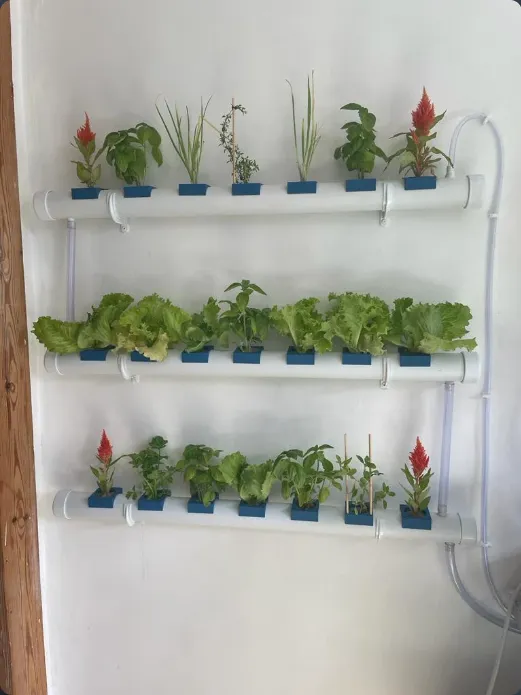

A fairly basic and modular indoor hydroponics setup using standard 5cm PVC piping, tubing, and some 3D printed parts. Currently, its powered by a simple pump on a timer, hoping to add IoT controls soon.
More info on how it was built here: https://apps.appshed.com/buildithydro/
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(6)
- Automation_Box_Base.stl
46.76 KB
2025-07-01
- Automation_Box_Lid.stl
37.19 KB
2025-07-01
- Automation_Box_Middle.stl
64.34 KB
2025-07-01
- Basket.stl
801.25 KB
2025-07-01
- Connector.stl
149.01 KB
2025-07-01
- Cover.stl
167.76 KB
2025-07-01
View all(6)
