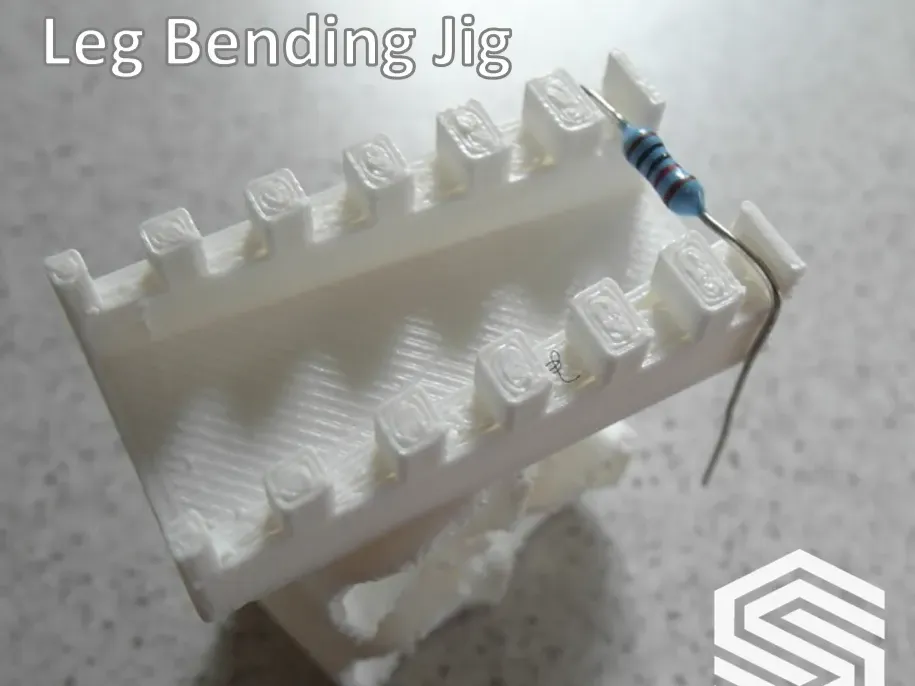

Parametric Bending gauge for electronics
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

1

3

16

3

Released 2025-06-24
Details
Files(1)
Makes & Comments (0)

Introducing the Parametric Bending Gauge for Electronics—a versatile tool designed to streamline the process of bending electronic components before soldering. This innovative gauge allows you to precisely bend resistors, capacitors, and other components to the desired angles, ensuring optimal fit and alignment on your PCB. With customizable parameters, you can adjust the gauge to accommodate various component sizes and bending angles, making it suitable for a wide range of projects. Enhance your soldering workflow and achieve professional results with the Parametric Bending Gauge for Electronics—a must-have tool for electronics enthusiasts and professionals alike.



Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    bending_gauge.3mfDesigner

    650.15 KB

    2025-06-24
