modular_base_v1_servo_mount
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

1

11

0

Released 2025-06-16
Details
Files(2)
Makes & Comments (0)

📝 Short Description

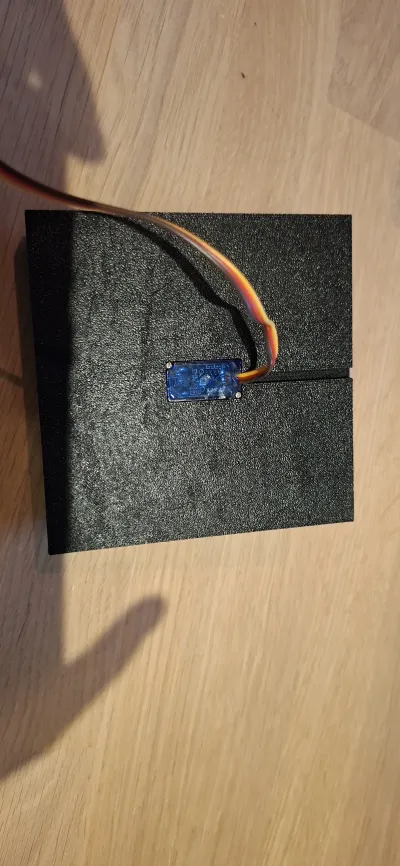

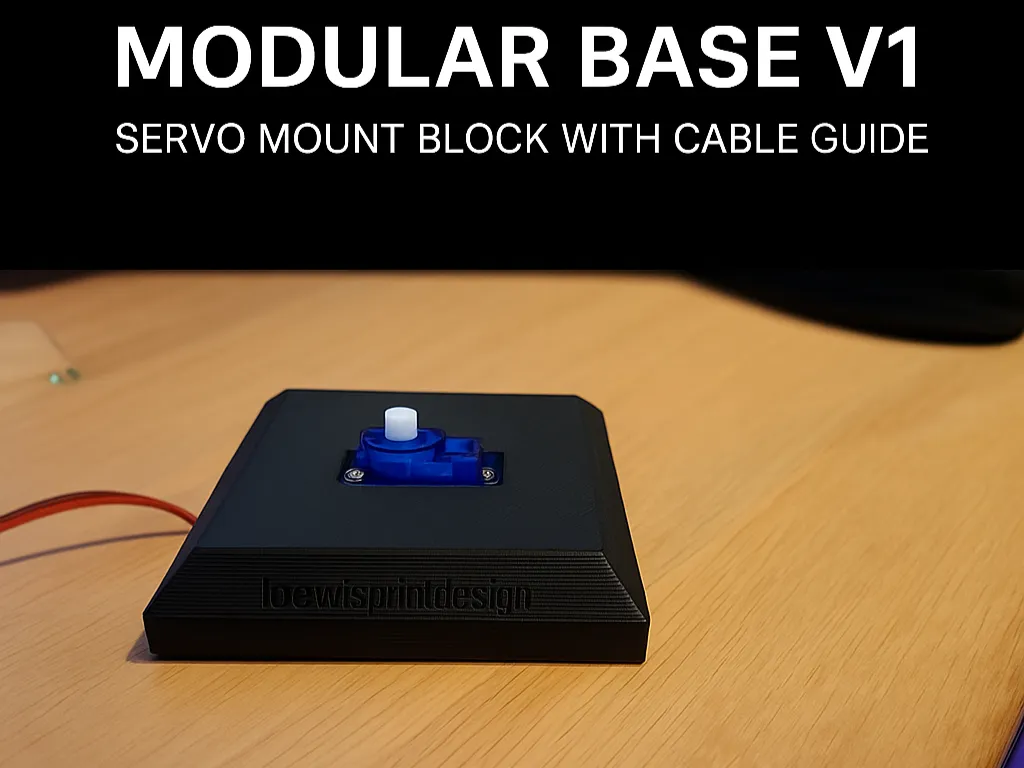

A sleek and modular 3D-printed base block designed to securely house an SG90 servo motor. Features a built-in cable slot on the underside for clean cable management. Perfect as the first layer of a modular camera rotation system.


---

📃 Full Product Description

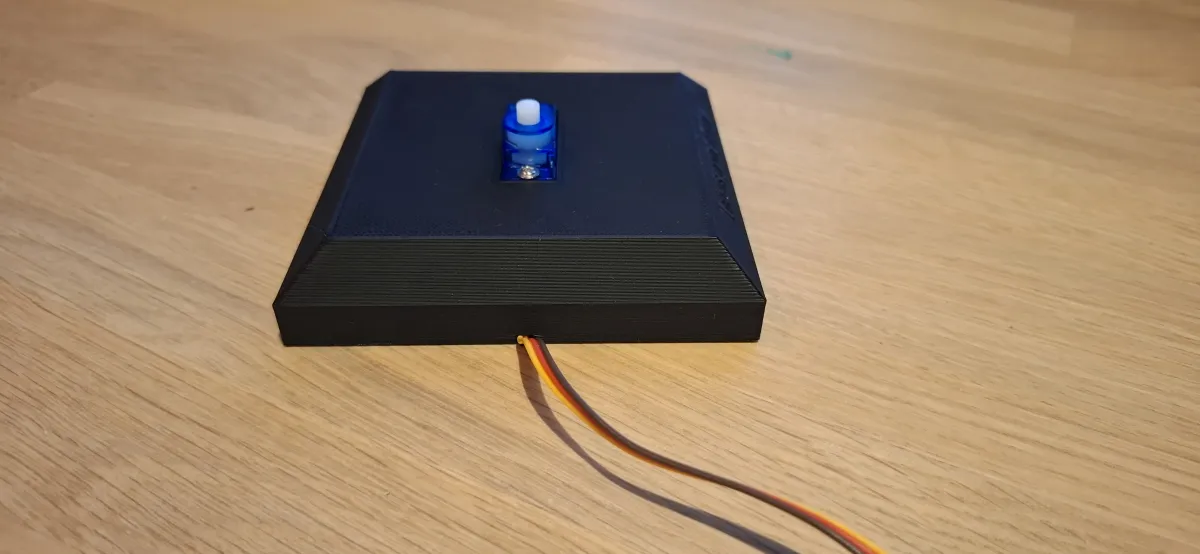

Modular Base V1 by glitchxperience is the foundation element of a modular pan-tilt system intended for camera modules. This version is specifically designed to fit an SG90 micro servo motor. The mount is recessed for flush installation, and the bottom includes an integrated horizontal cable channel for a professional finish without dangling wires.

The next levels (V2 and V3) will include:

A top plate with an integrated rotating mount

Compatibility with a camera module

Full 360° motion support using standard SG90 or MG90S servos


Ideal for robotics, home automation, or security camera projects.
