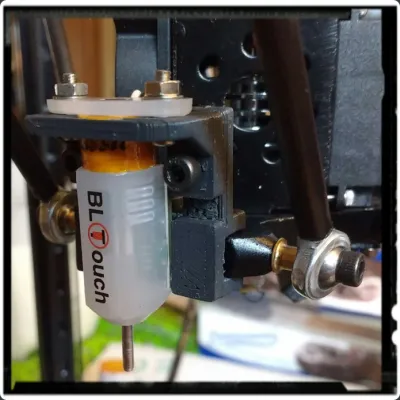

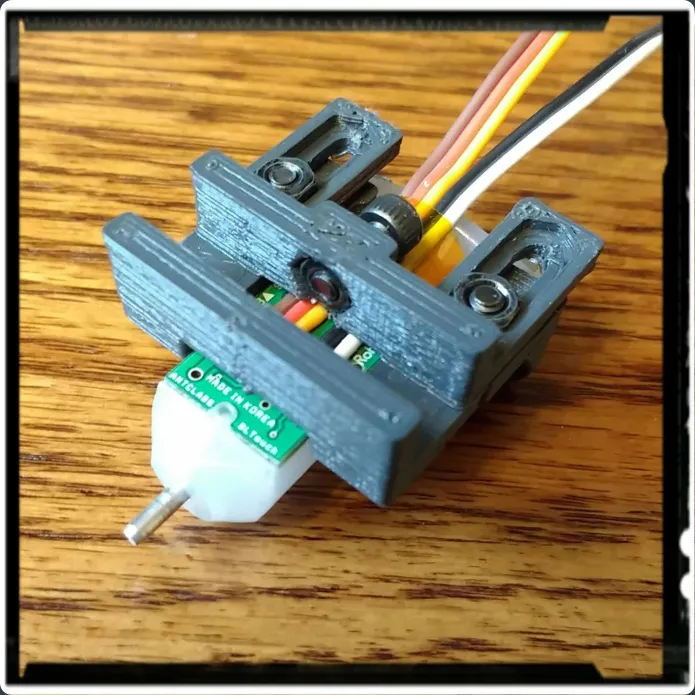

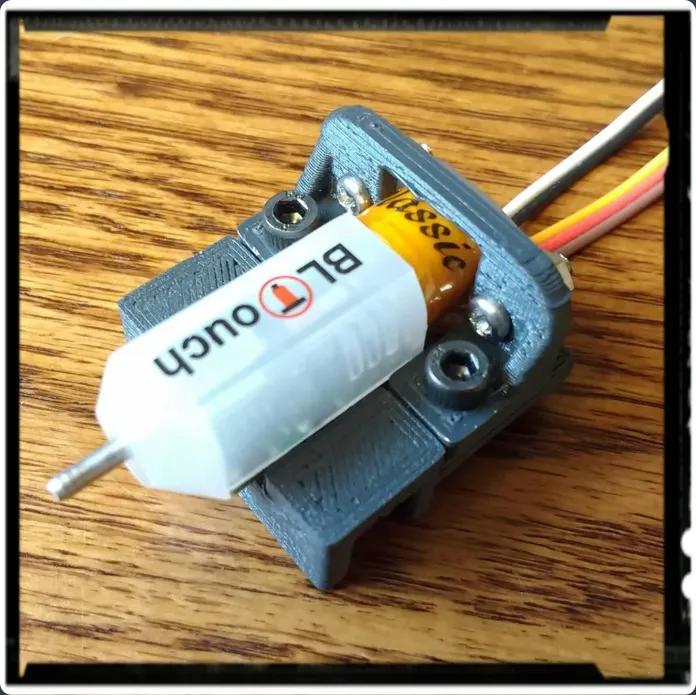

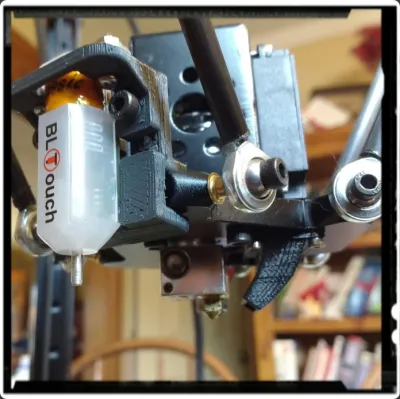

I made this BLTouch adjustable mount for the Anycubic Kossel. It clips onto the effector and has a screw to hold it in place tightly. You will need (3) M3 x 8mm socket head cap screw w/ nut, two for the adjustable portion and one for tightening the mount to the effector. Secure the BLTouch to the slider first, then connect the slider to the clip. Lastly attach and tighten the clip to the effector and adjust the slider to achieve 8.3mm from the plastic end of the bl touch to the end of the hot end nozzle tip.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
Ebb_Flow

This model is licensed under the following terms:

No Copyright.

Models(2)

  • bltouch2.stl

    25.67 KB

    2025-06-14

  • bltouch1.stl

    23.91 KB

    2025-06-14
