The model has passed printing and assembly tests, so you can print it with confidence.

It has also successfully undergone a load-bearing test—withstanding 25 kg without any deformation—fully meeting camping requirements.

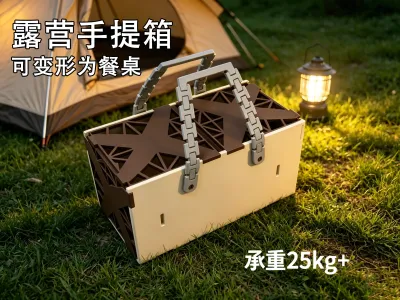

Featuring an original transformable structure, this piece can be converted from a storage box into a table. The box measures 455 mm × 225 mm × 230 mm, while the tabletop is 460 mm × 670 mm and stands 210 mm tall.

The box body and handle hinges are designed as a single integrated component and printed in one go. It employs a mortise-and-tenon assembly structure.

Printing notes: We recommend sealing the box during printing and cleaning the build platform, especially since the model is large and relatively tall. Using a cold bed plate is advised to prevent warping; even slight warping can lead to print failure.

A cylindrical locating pin is required for assembling the tabletop, with dimensions M3 × 22 mm.

For detailed assembly and transformation instructions, please refer to the accompanying documentation.
