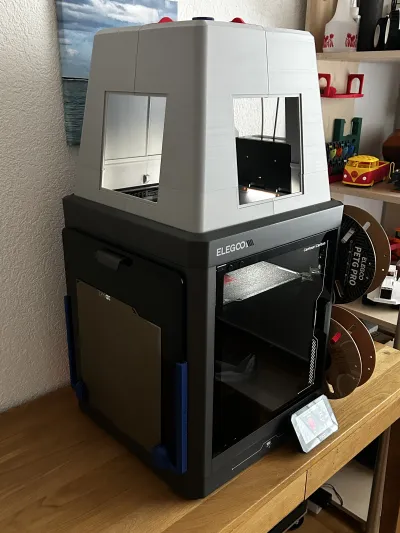

Elegoo CC1 with CANVAS top hood

Assembled with M3 screws, heat inserts and glue.

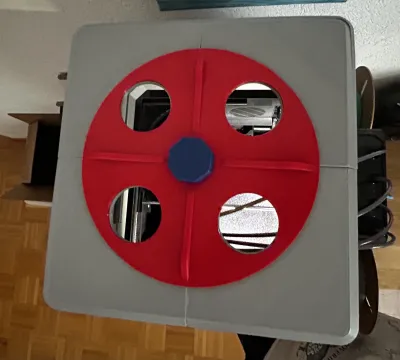

Adjustable vented top

Need 12 M3x4 or M3x6 heat inserts, 12 M3x8 screws

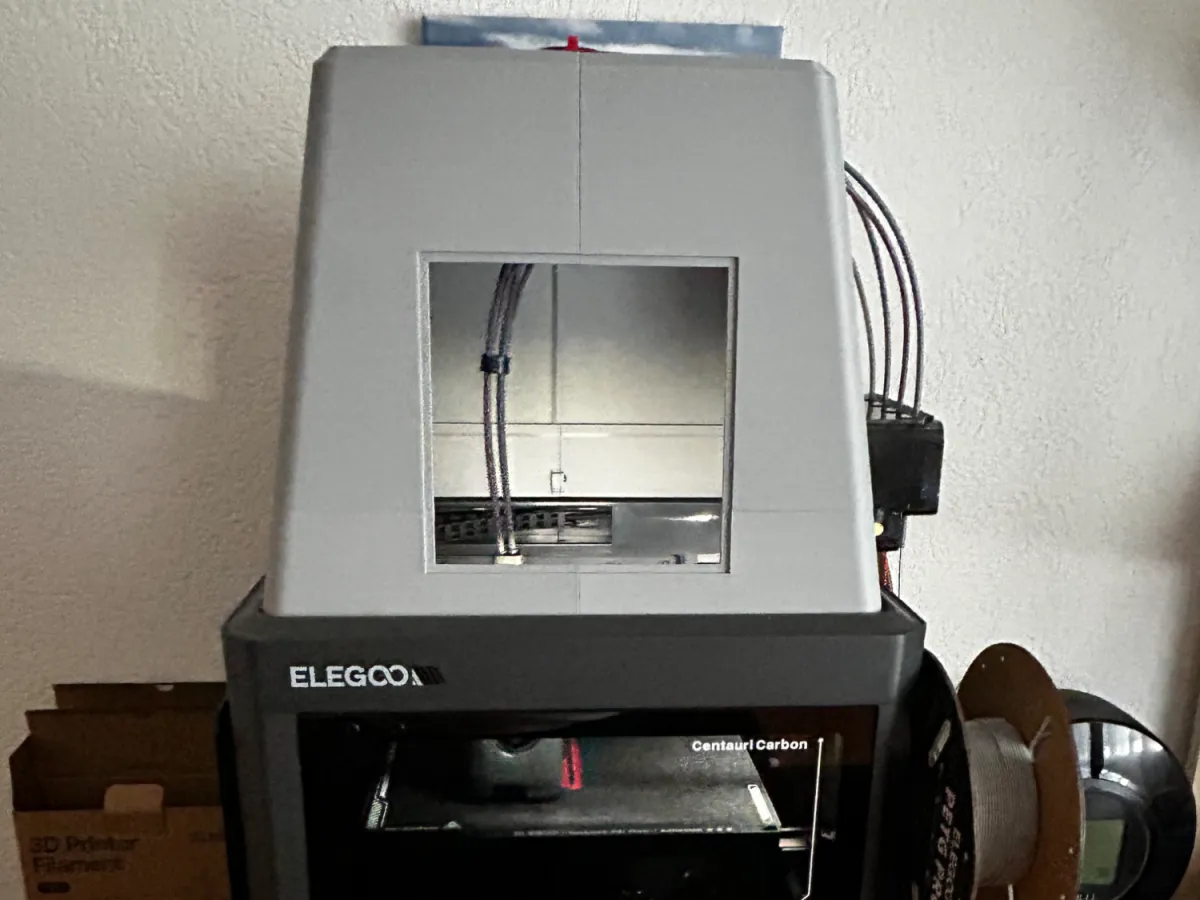

Need 2x 168x168 plexiglas for the windows or print 2x the plexi_window part using clear PETG.

• Print the cover_assembly, the screw_M12 and the Air_flow_control
• Print the 4 coverbase parts and assemble them using 3 M3 heat inserts and screws
  Put this assembly on the printer and verify adjustment
• Print the 4 cover parts upside down (no supports) and assemble them on the cover_assembly (see picture) using 4 M3 screws, screw the 4 cover parts together with 3xM3 screws

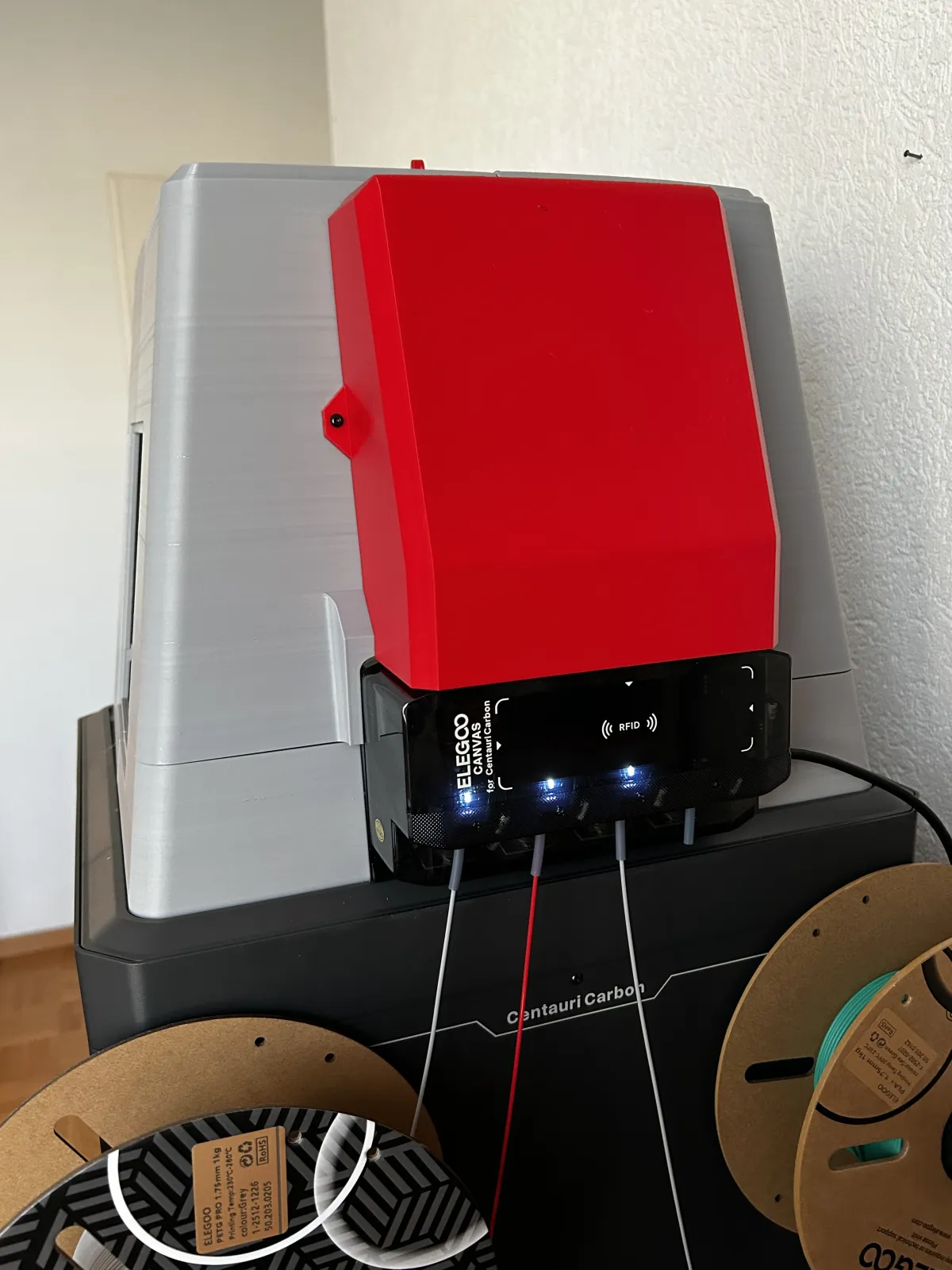

• Print the PTFE_cover and assemble it using 2 M3x8 screws
• Put the big cover assembly on the base cover_assembly on the printer. You can glue the top over assembly on the horizontal surface of the base and using the guide pins.
• Screw the Air flow control on the top of the hood using printed M12_screw
