🐎 3D Printed Standing Cartoon Pony: Design Inspiration, Printing Configuration & Assembly Guide

1. Design Inspiration

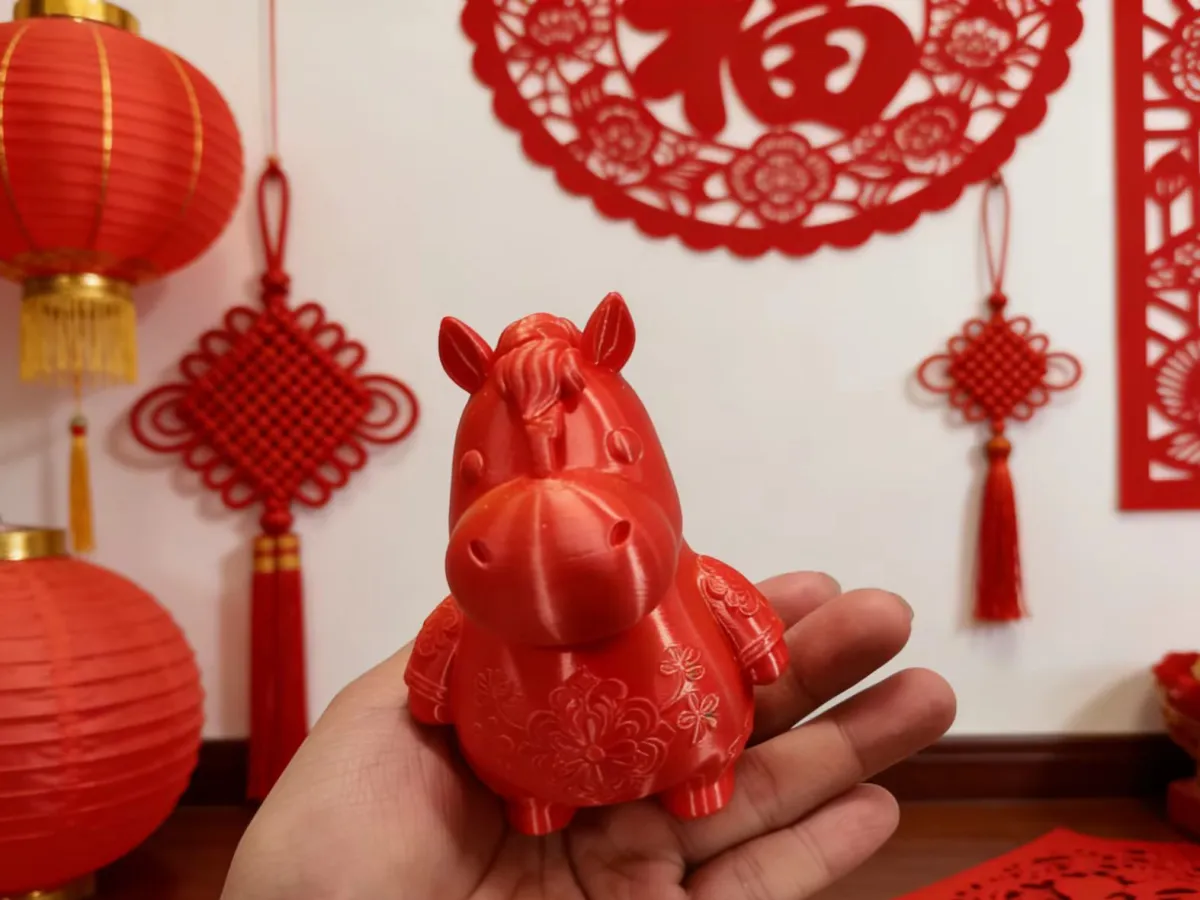

This 3D printed standing cartoon pony draws its inspiration from a delightful fusion of traditional Chinese festive symbolism and modern kawaii aesthetics. As a mascot for the Year of the Horse, it embodies the cultural values of strength, perseverance, and good fortune that the horse represents in Chinese zodiac tradition. The vibrant red color, adorned with intricate floral patterns, is a direct nod to Lunar New Year celebrations, where red symbolizes luck, joy, and prosperity.

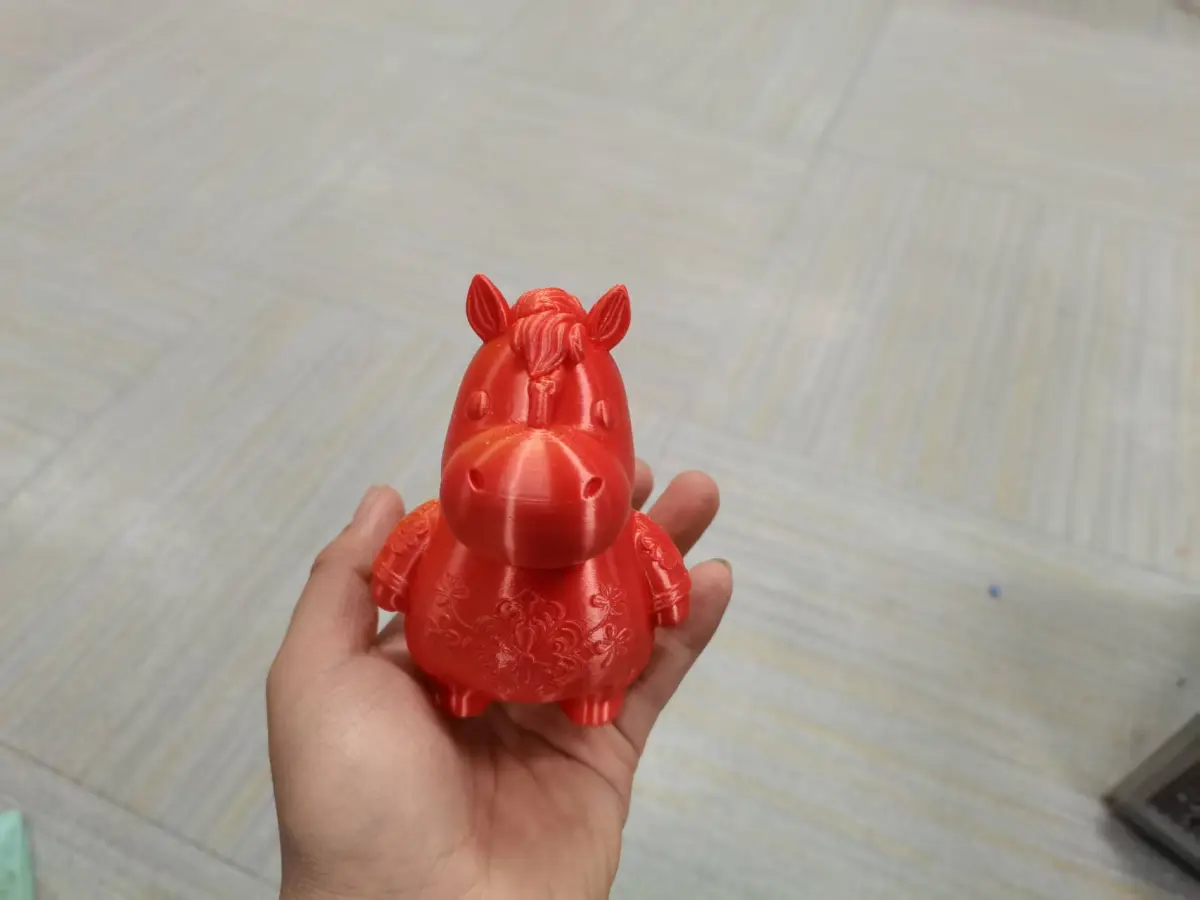

The design reimagines the horse in a charming, stylized form, with a rotund, huggable body and a friendly, expressive face that appeals to both children and adults. Its exaggerated proportions—large head, sturdy legs, and flowing mane—are influenced by contemporary cartoon and character design, creating a playful yet dignified presence. The goal was to create a festive decorative piece that is both culturally meaningful and universally endearing, suitable for display during holiday seasons or as a year-round symbol of positivity.

Functionally, the design was optimized for 3D printing. Its solid, self-supporting stance minimizes the need for complex supports, while the smooth, curved surfaces were engineered to showcase the beautiful silk finish of the filament. The subtle embossed patterns on its body add visual interest without compromising printability, making it a rewarding project for makers of all skill levels.

2. Printing Configuration

This setup is optimized to achieve a smooth finish, vibrant color, and structural integrity for your standing cartoon pony.

Core Material & Extruder Settings

- Primary Material: Silk PLA or Silk PETG (1.75mm)
- The silk filament is chosen for its luxurious, satin-like sheen that beautifully mimics the look of ceramic or lacquered wood, enhancing the festive aesthetic.
- Nozzle Temperature:
- Silk PLA: 190-210°C
- Silk PETG: 230-240°C
- Bed Temperature:
- Silk PLA: 50-60°C
- Silk PETG: 60-70°C

Support & Adhesion Strategy

- Support Type: Tree Supports (only for the mane and head overhangs)
- The pony’s mostly vertical design requires minimal supports. Focus supports only on the areas where the mane overhangs the neck and where the jawline curves forward.
- Support Density: 15-20%
- Z Gap Between Model & Support: 0.15mm
- This small gap ensures supports can be removed cleanly without damaging the model’s surface.
- Brim: Enabled (8-10mm width)
- A brim provides excellent bed adhesion for the wide, flat feet, preventing warping and ensuring the pony stands perfectly straight.
- Bed Adhesion Aid: PVA glue stick
- Apply a thin, even layer to the glass bed for a reliable bond that releases easily once cooled.

Speed & Cooling Settings

- Print Speed: 50-60 mm/s for the main body, 30-40 mm/s for detailed areas like the mane and facial features.
- Cooling Fan: 100% for PLA (after the first 2 layers), 50-70% for PETG.
- This ensures crisp details and prevents stringing on the silk filament.

3. Assembly Instructions

The standing cartoon pony is designed as a single, integrated print, making assembly straightforward. Follow these steps for a perfect finish:

1. Post-Print Removal & Cooling
- Allow the print to cool completely on the bed (15-20 minutes) before removing it. Use a plastic spatula to gently lift the model by its base.
- The brim can be easily peeled away from the feet once the model is off the bed.
2. Support Removal
- Start by removing the larger support structures from the mane area. PLA supports can often be snapped off cleanly by hand.
- For any small, stubborn support residues, use fine-tipped tweezers or a sharp hobby knife to carefully scrape them away. Take extra care around the delicate edges of the mane and ears.
3. Finishing Touches
- Inspect the model for any minor imperfections. If needed, use 400-600 grit sandpaper to lightly smooth any rough spots, then wipe with a microfiber cloth.
- For an even more polished look, you can apply a thin coat of clear acrylic spray to enhance the silk finish and add a layer of protection.
4. Display
- The pony is self-supporting and ready to be displayed. Its flat, wide base ensures it stands securely on any shelf, desk, or mantel. For maximum effect, pair it with other festive decorations during the holiday season.
