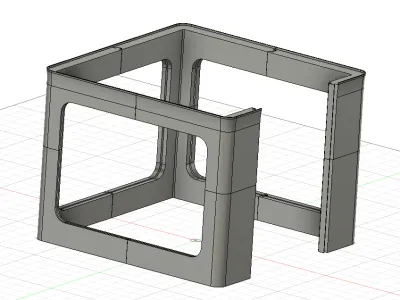

For three A4 plexiglass sheets without cuts (original dimensions 210 x 297 mm)

The mounts for the plexiglass sheets are 3 mm thick, since the sheets themselves have an actual thickness of 2.8 mm (please verify your measurements)

UPDATED VERSION

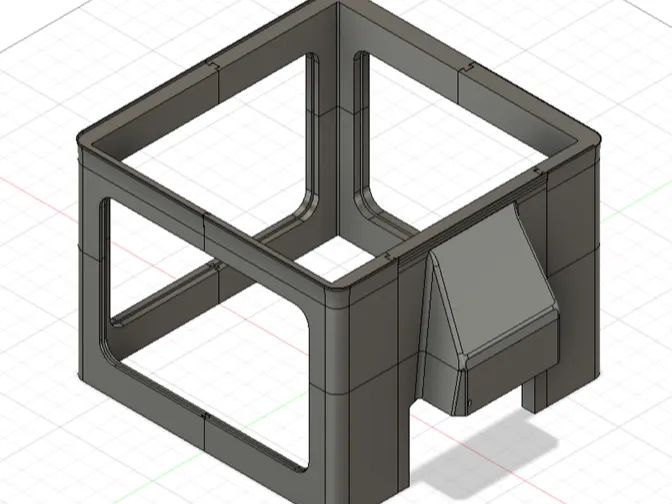

• The right side has been redesigned for improved aesthetics and a better fit compared to the previous version.
• The right side is pre‑prepared to attach the single‑filament splitter.
• The rear side is edgeless, allowing you to simply slide on the original cover and enable external airflow (for those like me who have already printed the first version, just trim the rear edges with a utility knife).

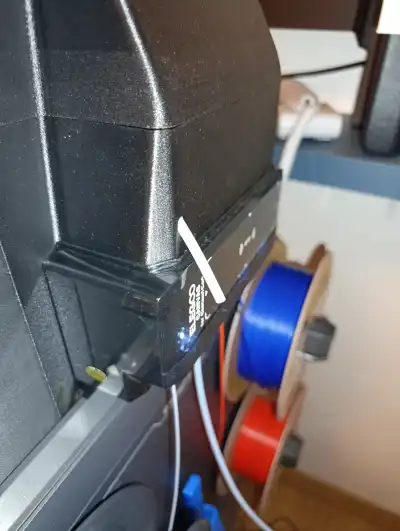

The Splitter uses one of the three spare connectors included with the Canvas kit and must be printed separately to better check the hole tolerances (I increased the hole clearance by 0.1 mm). It is then glued onto the lower right cover, using the dedicated recesses as reference points.

Obtain a 33–34 mm length of Teflon tubing to connect the first slot of the CANVAS to the single‑filament splitter (during installation, insert this tubing into the splitter first).

Cut off approximately 5 cm of the existing tubing.

Print using standard supports (adhesive type).
