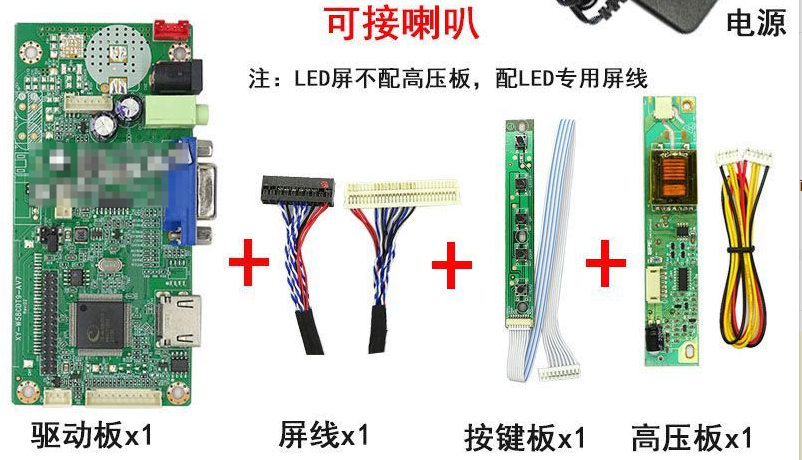

Previously, I replaced the laptop’s screen myself. The model is a Samsung LTN156HL02-301, and with its 98% sRGB color gamut, I decided to continue reusing it. The driver board was a generic 30-pin eDF board I casually purchased from Taobao.

I used Simplify3D’s PETG-CF10 filament; I recommend that anyone in need also try carbon-fiber-reinforced filaments—they offer better strength and a superior texture.

I drew inspiration from the ideas and structural layout of @YongyangYang and @Mr.MingMingMing, and all the models were designed by me personally.

You’ll need several M3×6mm screws and four M3×30mm screws.

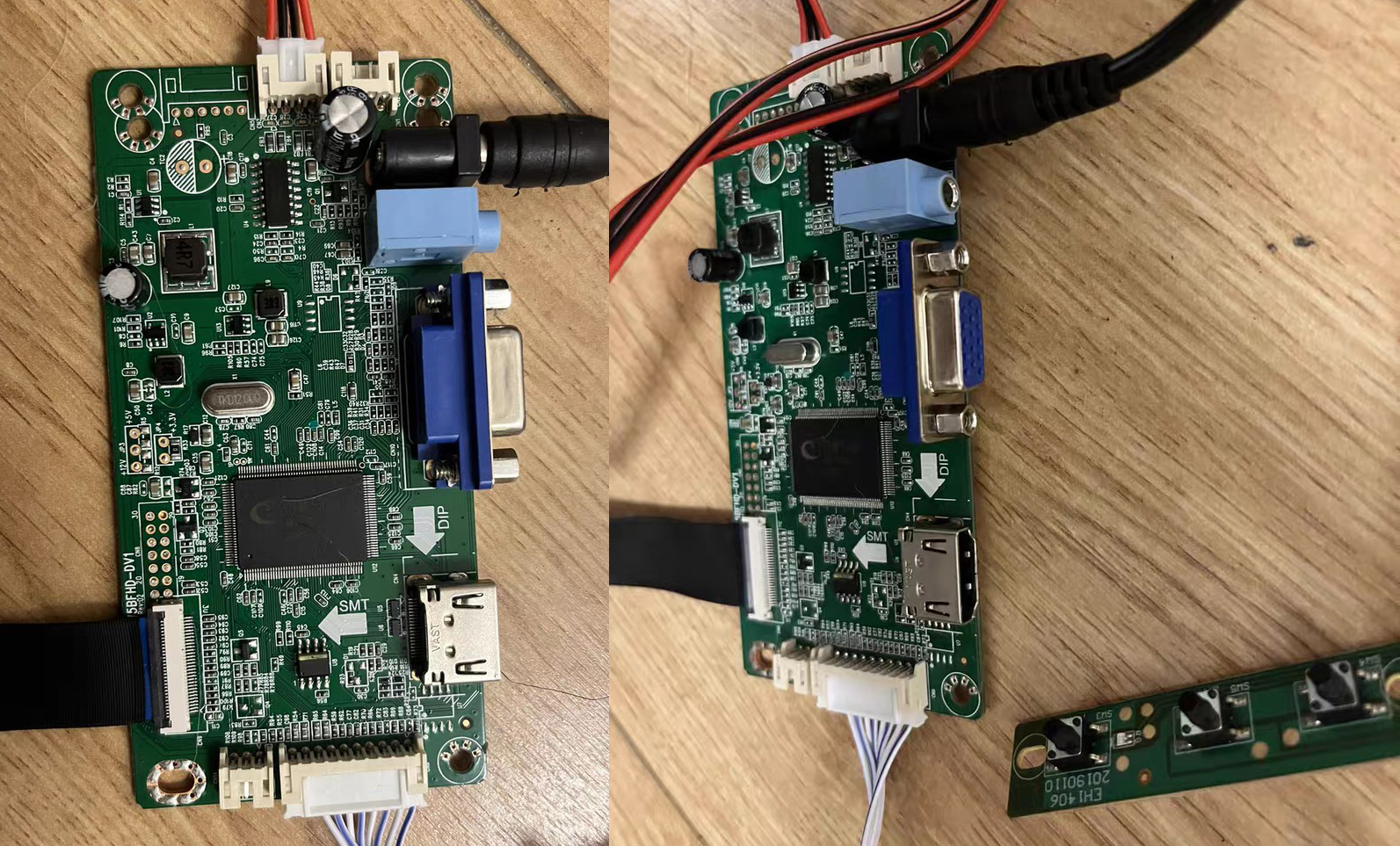

The driver board can be mounted either on the back panel or the rear cover—choose whichever suits you. If mounting on the back panel, spacers are required; otherwise, they’re unnecessary.

The rear cover features VESA mounting holes measuring 75×75 mm.

This driver board is compatible with:

The following information is for reference only:

Approximate dimensions of the screen area: height 227 mm, length 183.5 mm × 2, thickness 6 mm.

Screw-hole spacing:

• Side edges: ⚪–80–⚪–80–⚪, three holes, Φ2.6
• Front surface (top/bottom): center point–10–⚪–20–⚪–55–⚪–50–⚪, Φ3, with left-right symmetry about the center point

Driver board mounting on the rear cover:

• ⚪–106–⚪
• |             |70
• ⚪—  —⚪     R1.75 spacing, two points
