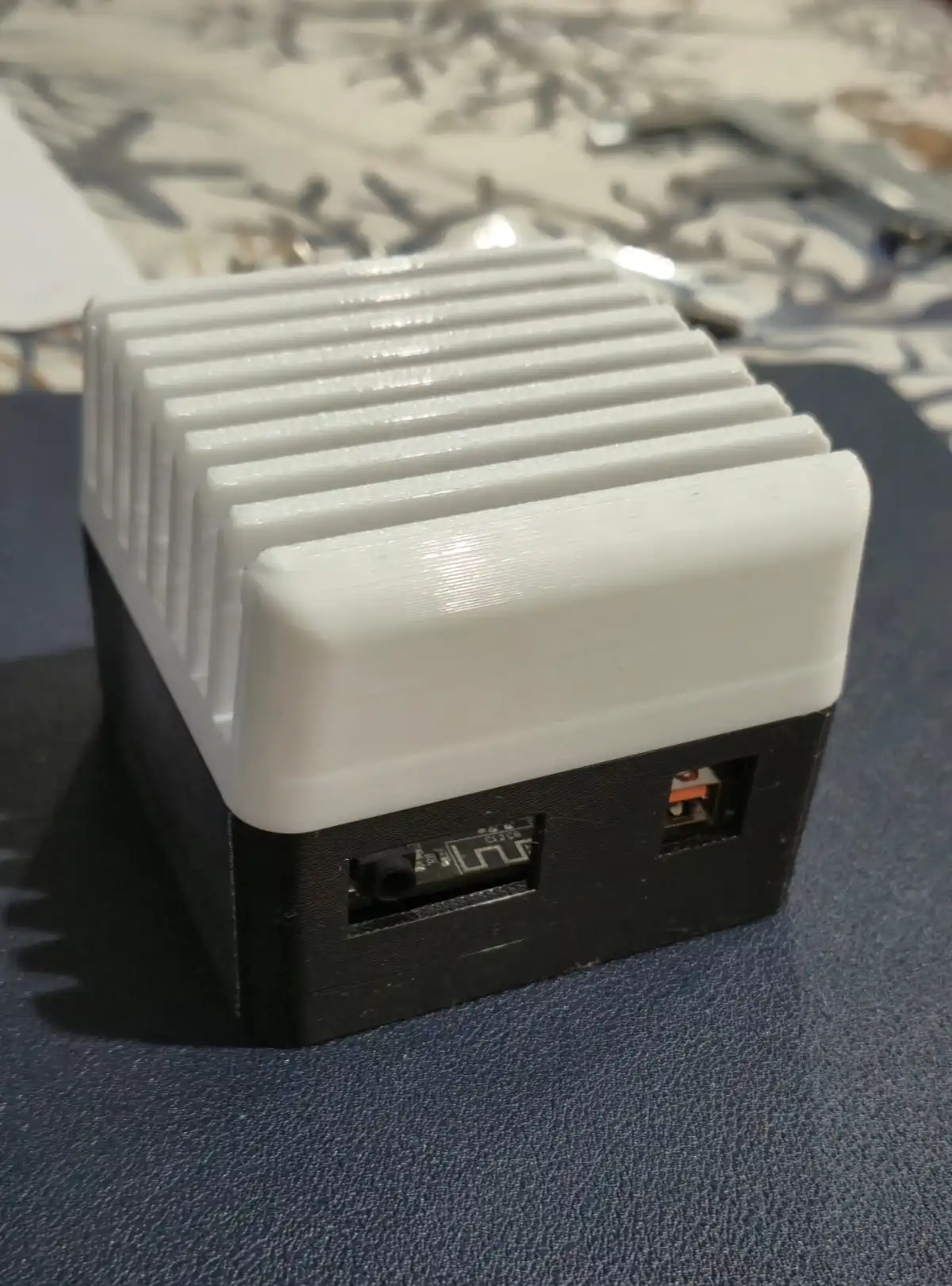

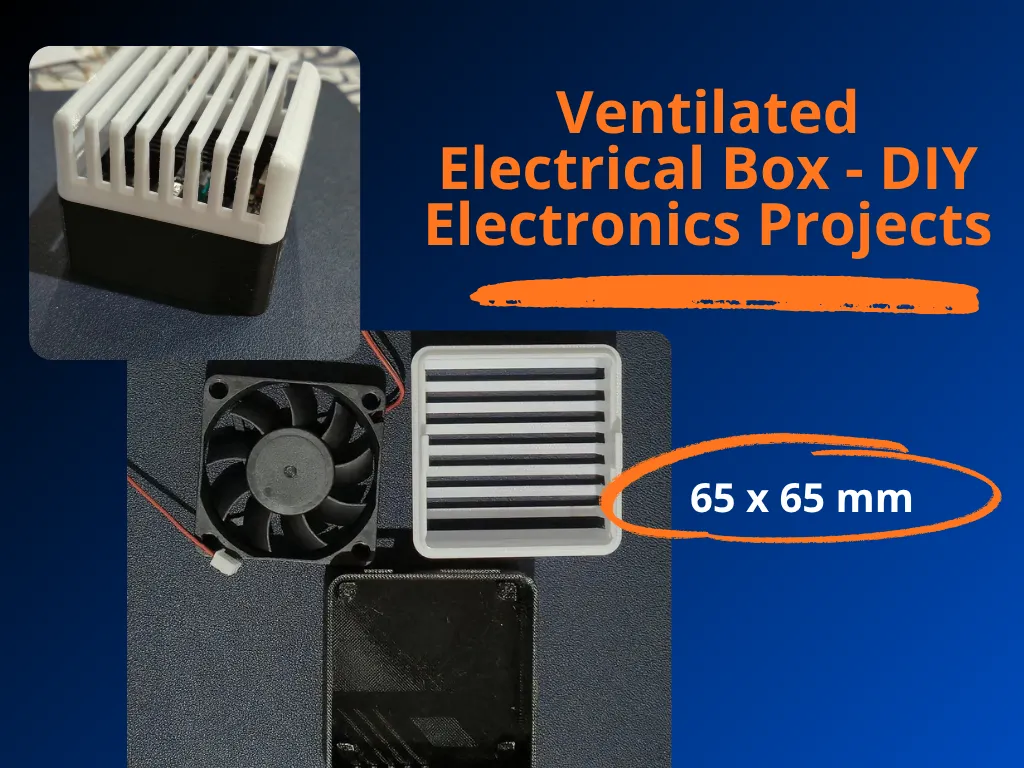

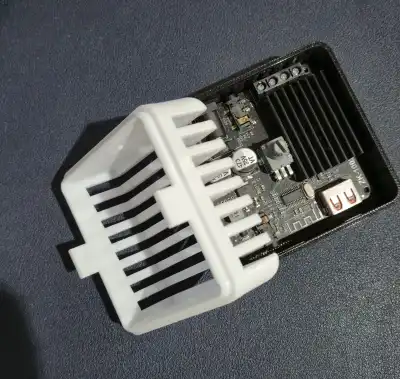

I designed this ventilated electrical box originally for an audio amplifier, but its ultra-compact dimensions (65 x 65 mm) make it perfect for a wide range of electronics projects.

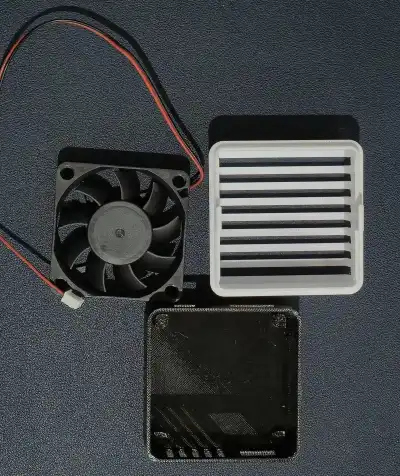

Exclusive feature: the snap-fit lid (no screws needed!) integrates a standard 60x60mm fan mount (5V or 12V), ideal for cooling boards that heat up during intensive operation (IoT, multimedia, automation). The fan, combined with strategic ventilation holes on the base and lid, ensures optimal airflow to maintain safe temperatures.
