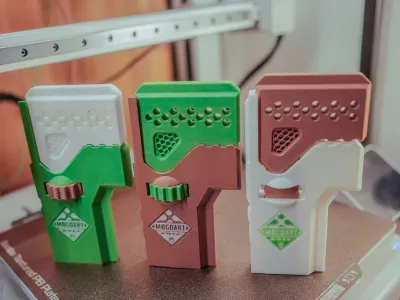

Model Name: Clamp
Type: Heavy-duty 3D-printed clamping tool
Use: Securely holds workpieces for assembly, gluing, sanding, and workshop tasks

Dimensions (approx.):

• Length: 120–160 mm
• Jaw Width: 40–60 mm
• Max Opening: 30–50 mm

Features:

• Reinforced fixed and movable jaws for high clamping force
• Thick body walls for increased strength and long-term durability
• Flat jaw faces for even pressure distribution
• Compact, rigid design suitable for repeated workshop use
• Optional side panels can be made from wood to increase rigidity and improve grip

Print Recommendations:

• Material: PETG, ABS, or Nylon recommended (PLA suitable for light to medium use)
• Layer Height: 0.20–0.28 mm
• Walls: 4–6 perimeters
• Infill: 30–40%
• Supports: None

Notes:
Designed for durability and repeated clamping cycles. Optimized for strength when printed with high wall count and moderate-to-high infill. Optional wooden side panels allow customization for tougher applications.
