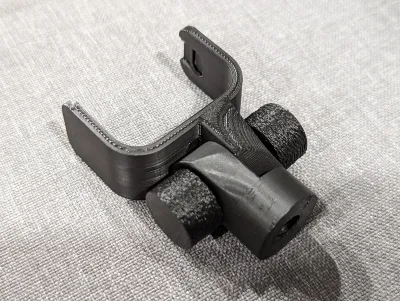

Remix of the Logitech Streamcam Tripod Mount with Joint by Neoz3d

Rebuilt from scratch in Autodesk Fusion 360 based on Neoz3d's design.

• Model is fully 3D printed. Replaced the need for an M3 nut and bolt with a printed thread and nuts suitable for manually adjustment of the joint.
• The camera grip is tapered to fit the Streamcam body better, similar to the OEM grips.

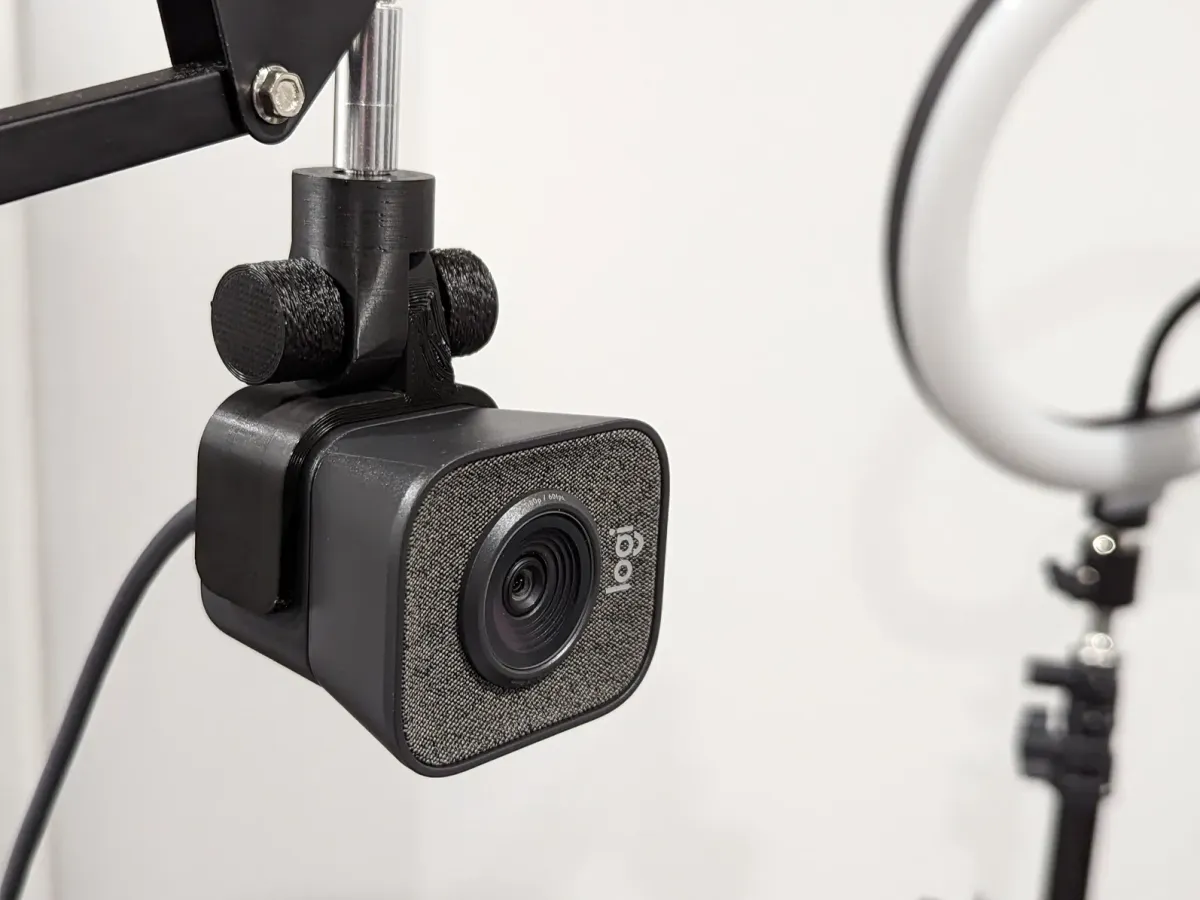

• The base of the joint has a female 3/8" 16 UNC threaded connector suitable for many microphone and boom mounts.

Recommended print settings

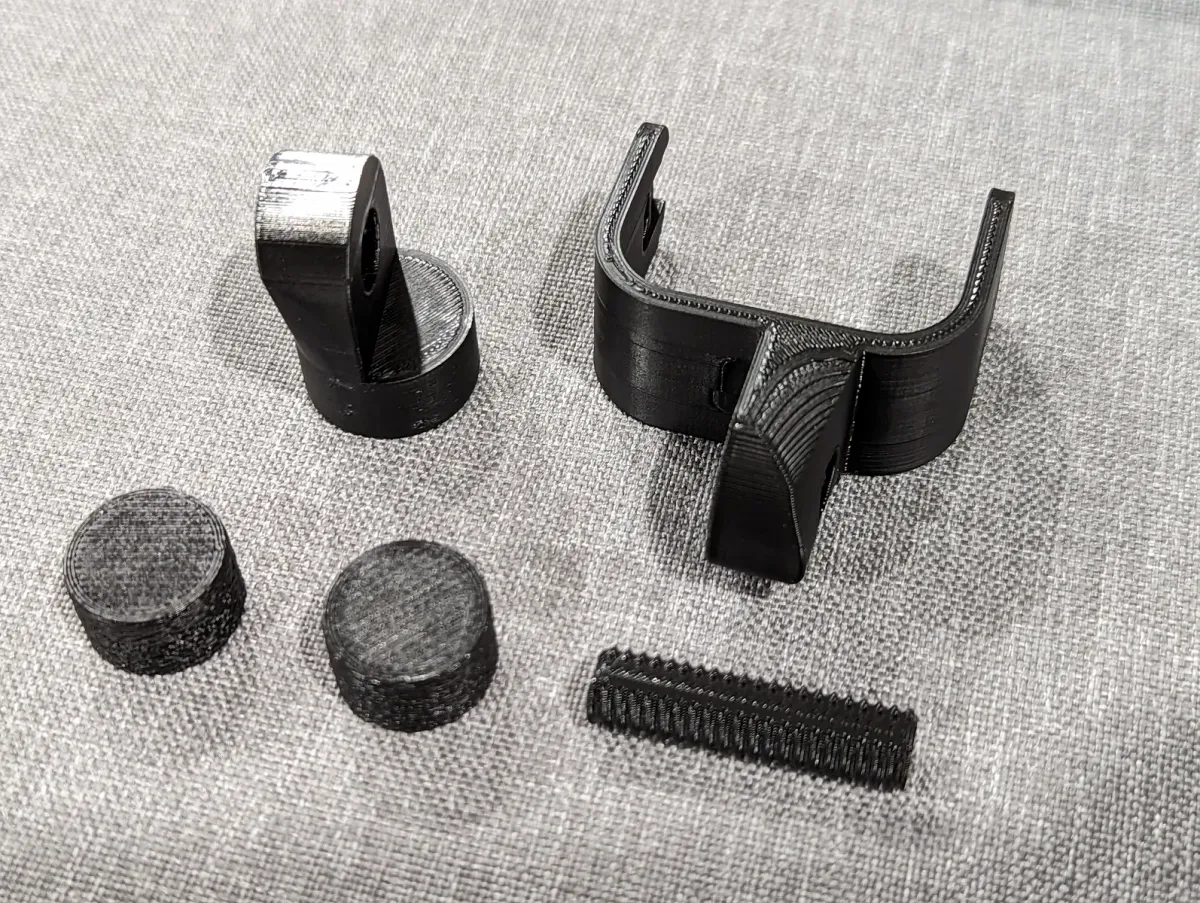

I recommend printing the parts separately. All parts can be printed without supports.

• Streamcam Mount - print with 0.2mm layer height and 3 perimeters.
• Microphone Mount Connector - print with a 0.12mm layer height, or adaptive layers for the threaded base. Orient with the threaded hole at the bottom.
• Nuts - print 2 of them, with a 0.12mm layer height, or adaptive layers. Use the fuzzy skin option for the outside perimeters for better grip. Orient with the threaded hole at the top.
• Bolt thread - print with 0.2mm layer height. If the thread is too tight try reprinting with the printers flow rate reduced by 10%.
