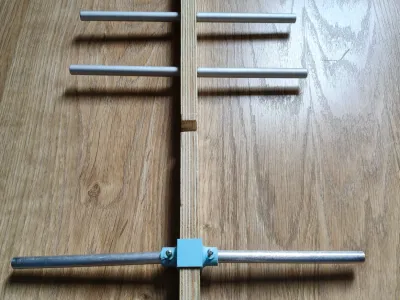

Upgrade your DIY antenna project with this Precision Boom Mount. Designed specifically for Yagi-style antennas, this holder provides a rock-solid connection between your antenna elements and the central boom. It’s the essential hardware for radio enthusiasts who want a clean, professional, and durable assembly.

  • Secure Dual-Lock System: Features a specialized housing for two M3 screws and brass inserts, ensuring your aluminum rods stay perfectly centered and won't slip during high winds or rotation.
  • Universal Boom Fit: The rectangular cutout is designed to slide snugly over standard wooden or composite booms, keeping the elements perfectly perpendicular for optimal signal gain.
  • Robust & Weatherproof: Engineered with reinforced walls to withstand the tension of the elements while remaining lightweight enough for portable "SOTA" or "POTA" setups.
  • Easy Assembly: The through-hole design allows for quick element swaps or fine-tuning of the antenna's spacing without needing to dismantle the entire array.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    metal rod
    2
  • 2
    wooden beam
    1
  • 3
    M3 heated inserts
    2
  • 4
    M3 bolts
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    kabel houder antenne (1).STLDesigner

    809.26 KB

    2026-04-02

  • model file image
    antenna rod holder.3mfDesigner

    259.15 KB

    2026-04-02
