1. Project Overview:

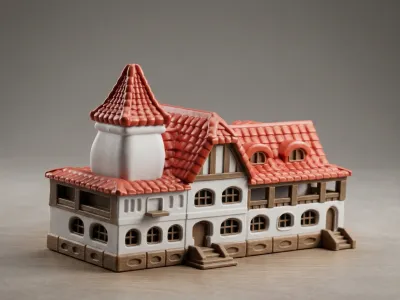

This is a 3D-printed model that faithfully recreates a historic building based on on-site measurements. The prototype is the Former Site of the German Navy Club in Qingdao, China, also known as the Waterworks Hotel Ruins.

Construction began in 1899 and was completed in 1902, making it one of the earliest examples of German-style architecture in Qingdao and a quintessential representation of the German Neo-Renaissance architectural style. Beyond its role as a witness to a century of historical change, the building’s distinctive asymmetrical layout, soaring spire-topped towers, and red-tiled gabled roof have secured its place in architectural history.

2. Model Features:

• High Fidelity: The model accurately reproduces iconic details such as the Waterworks Hotel’s unique towers, attics, stone-base brick walls, and the second-floor colonial-style wooden columned exterior frame.
• Print Optimization: The model has been optimized for 3D printing.
  • [If applicable] Modular Design: To facilitate printing and post-processing painting, the model is divided into several parts—such as the roof, main body, towers, and base—and assembled using mortise-and-tenon joints or alignment holes.
  • [If applicable] Monolithic Design: Alternatively, the model can be designed as a single piece, suitable for FDM or resin-based monolithic printing.
• Rich Detail: Even at a miniature scale, features such as window grilles, stair treads, and roof tile textures are meticulously preserved.

3. Printing Recommendations:

• Recommended Printer Type: [e.g., FDM fused deposition / LCD/SLA resin curing]
• Recommended Materials: [e.g., PLA (general-purpose) / Resin (for fine detail)]
• Scale: [e.g., 1:100 / 1:200 / Default dimensions: XX mm x XX mm x XX mm; users may scale independently]
• Layer Height: [e.g., 0.12–0.2 mm (FDM) / 0.05 mm (resin curing)]
• Filling Density: [e.g., 10–15% (FDM)]
• Support Structures: [e.g., required / partial support needed / recommended to use built-in supports on resin printers]
• Painting: After printing, it is recommended to apply model-specific filler and sand the surface, followed by acrylic paints or model spray paint for coloring (red roof, pale yellow walls, brown wood framing, gray stone base).

4. Included Files:

• Aileku-format 3MF file

5. License Agreement:

This model is intended solely for personal study, collection, and non-commercial printing. Without the author’s permission, the model files or printed finished products may not be used for commercial sale.

If you enjoy this model, feel free to download, print, and share your finished creations! If you have any questions, please leave a comment in the discussion section.
