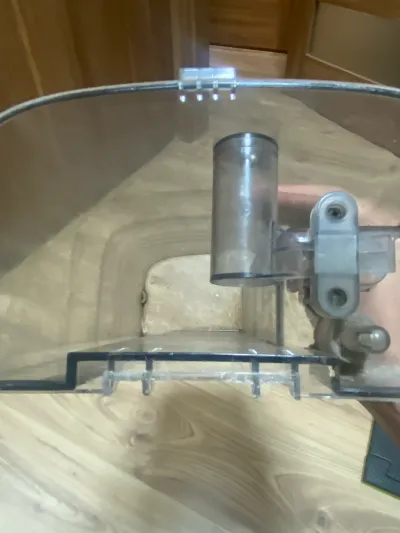

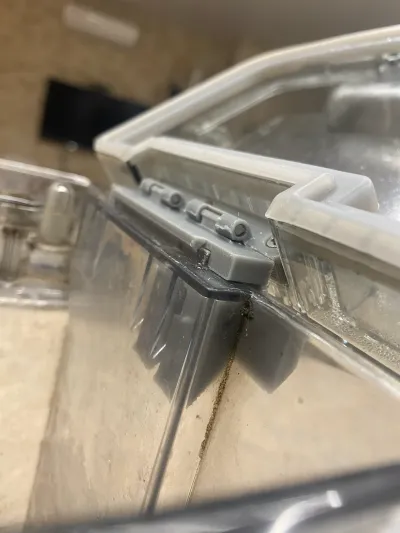

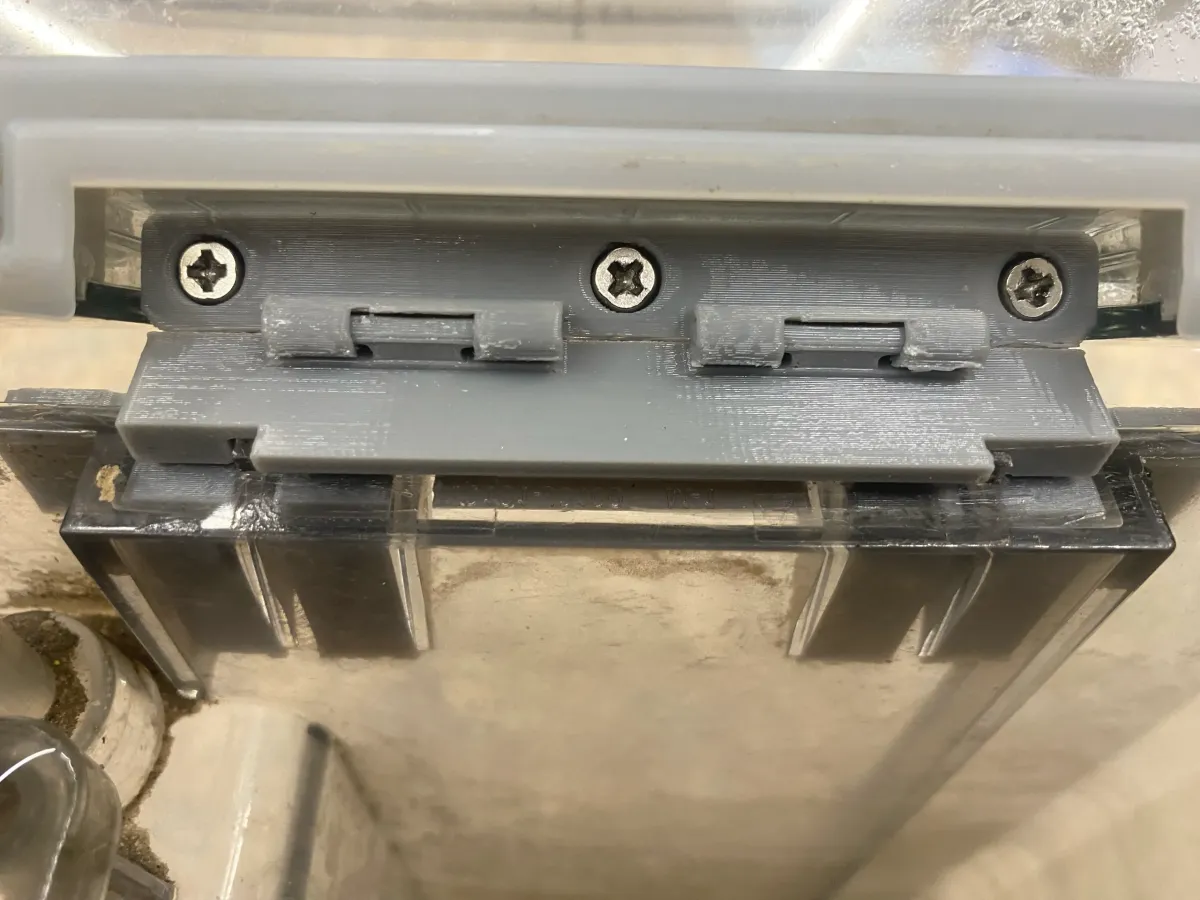

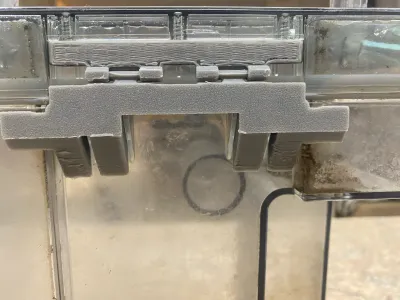

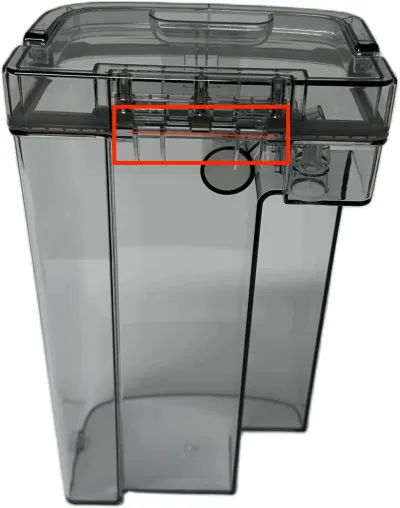

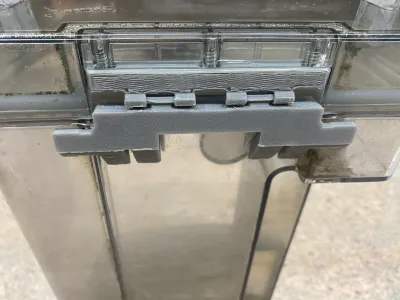

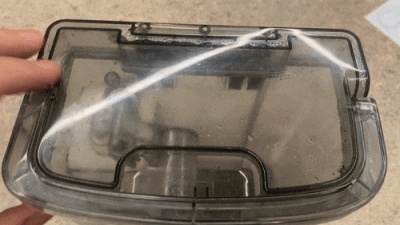

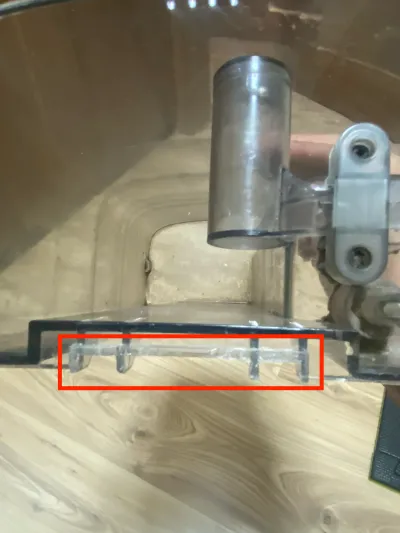

This is a printable hinge replacement for the Roidmi Eva Vacuum water tanks. Since both water and waste tanks use the same design this fits both. In my case one of the hinges broke off and the top half no longer holds. The replacements requires some cutting and sanding around the water tank hinge to make it fit. Instructions: Print in at least PETG or stronger filament. Minimal support is required for the screw hole part since it is floating. Once printed move the hinge around to release it if its stuck. Adjust X-Y hole compensation in slicer to allow easier printing of the hinge (a setting between 0.1-0.2mm should be sufficient) For preparing the tank instruction file is added.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • model file image
    water-tank-hinge-k2-plus1 elegoo.3mfDesigner

    97.59 KB

    2026-03-07

  • model file image
    watertankhingev7.stlDesigner

    349.20 KB

    2026-03-07
