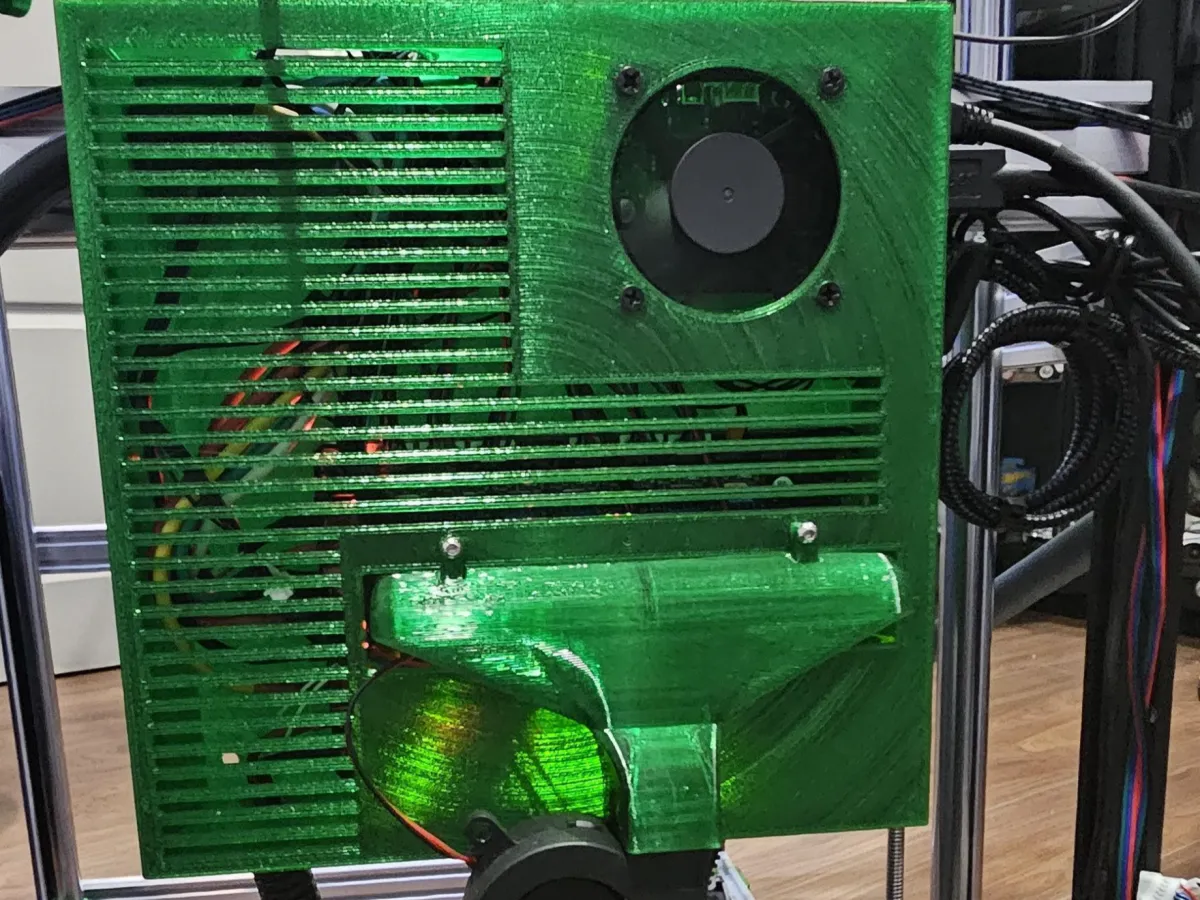

This is a housing for a BigTreeTech Octopus v1.1 MCU and BTT PI / CB1 v1.2

Housing contains the following:

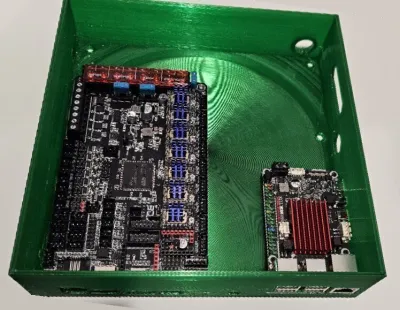

Box for BTT PI / CB1 v1.2 board & BTT Octopus v1.1 MCU board:

• The BTT Octopus side has holes ready for M3 Heated Inserts; BTT Pi / CB1 side has holes ready for M2 heated Inserts
• Has all ports already mapped out for perfect fit
• Additional holes for stepper motor wiring, hot end wiring, misc & aux wiring
• Contains three M5 holes to easily attach to aluminum extrustions at a corner or across

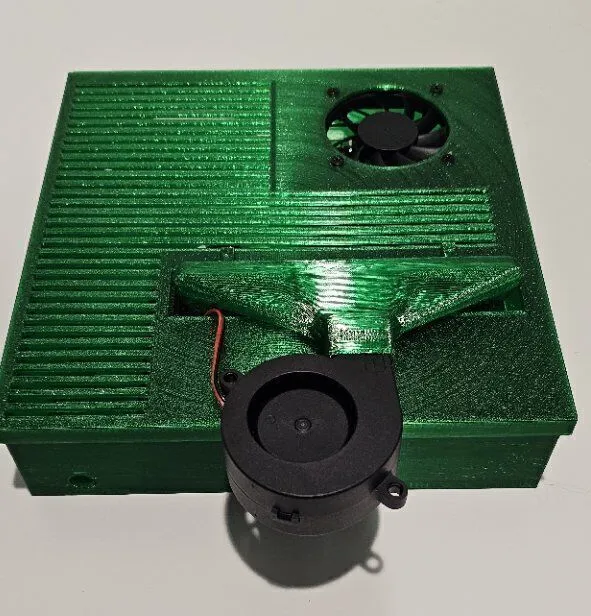

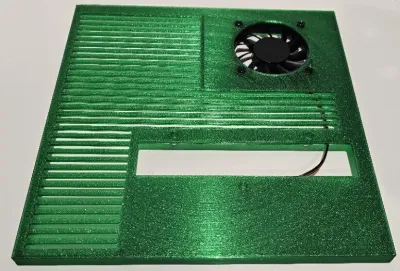

Cover for housing:

• Has holes ready for a 40mm Fan to cool BTT PI / CB1
• Is fully vented in order to allow heat to flow out
• Contains slot for additional 6025 Fan Duct
• Contains M3 holes ready for heated inserts to attach 6025 Fan Duct

6025 Fan Duct:

• Tightly fits a 6025 Fan
• Contains attachment holes to attach to cover

YouTube Video: https://youtube.com/shorts/CUXFLyonbf0
