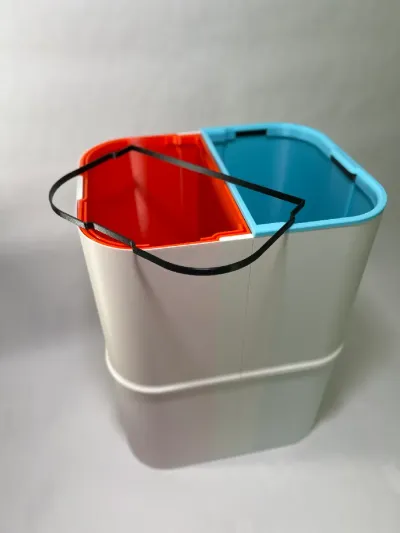

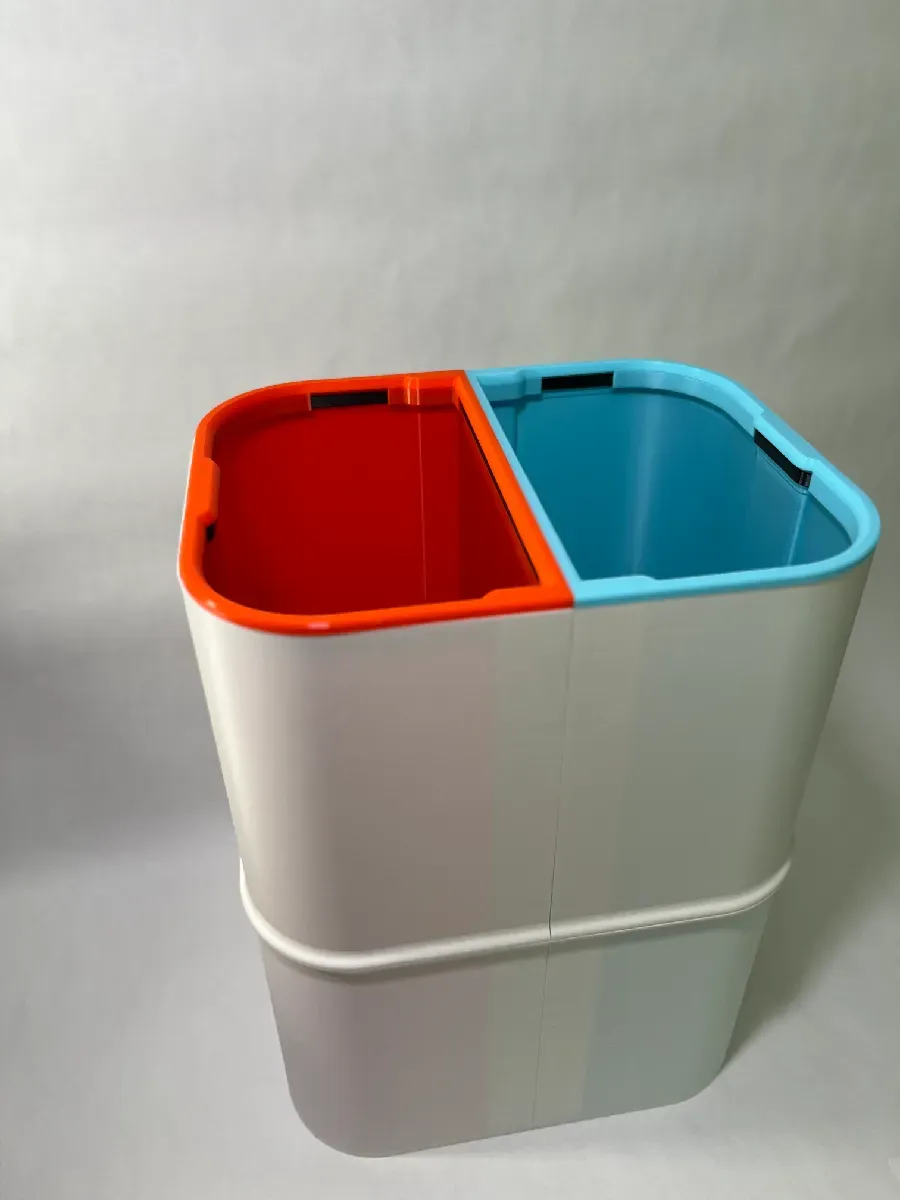

This is a big and sturdy trash can with two separate removable bins. The dimensions of the bin are 405 x 300 x 240 (mm). Both cans include a trash bag holder ensuring that the bags stay in place while being easy to removed. The bin covers make for a finished look hiding the trash bags.

All parts of the model are easy to print without any supports or brims (The bag ring might need a brim depending on your build plate and material of choice).


Printing:
This model consists of several files.
Inside Base folder, you can find the four parts for the outside of the trash can and the five connectors used to connect the pieces together. You need to print two of each connector type. The connectors are designed to be tight but I still recommend adding some glue to make the connection permanent.

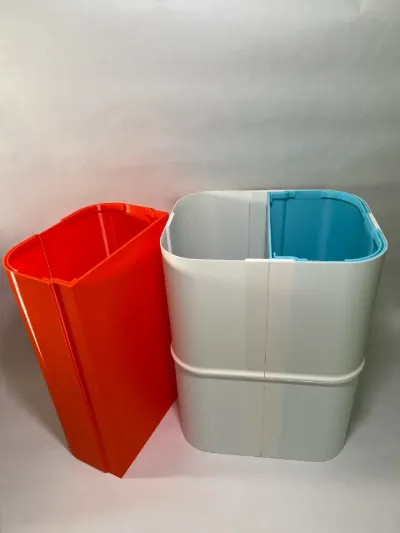

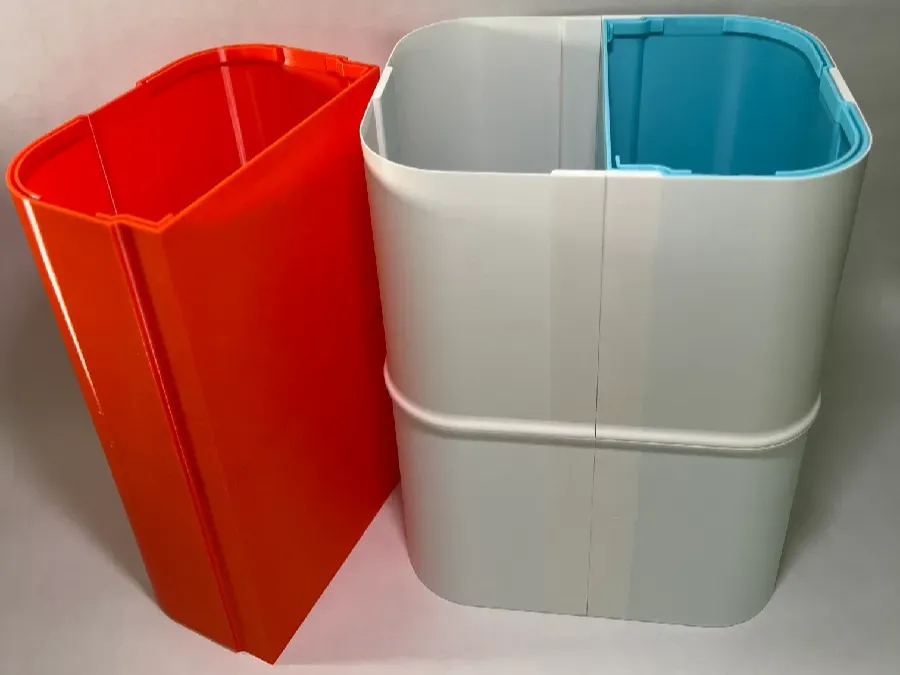

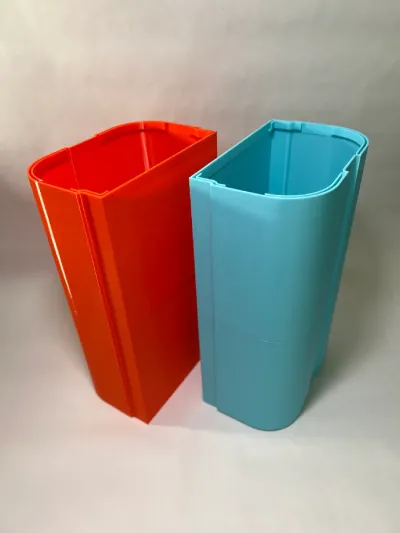

Inside Bin folder, you can find the files for printing the inside bins. I recommend printing them in two different colours to better distinguish the type of trash they are used for. You will need one of each part in the folder.

Every piece can be printed with 2 or 3 perimeters (walls) and regular 10%-15% infill. Make sure that the bag rings are printed as solids with no infill. I printed everything in PLA.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(18)

  • Base_Top_2.stlDesigner

    400.77 KB

    2026-02-27

  • Base_Top_1.stlDesigner

    400.57 KB

    2026-02-27

  • Base_Bot_1.stlDesigner

    408.68 KB

    2026-02-27

  • Base_Bot_2.stlDesigner

    408.68 KB

    2026-02-27

  • Connector5_1.stlDesigner

    60.43 KB

    2026-02-27

  • Connector5_2.stlDesigner

    60.43 KB

    2026-02-27

  • Bin_Top_1.stlDesigner

    291.20 KB

    2026-02-27

  • Bin_Bot_1.stlDesigner

    263.56 KB

    2026-02-27

  • Bin_Top_2.stlDesigner

    291.10 KB

    2026-02-27

  • Bin_Bot_2.stlDesigner

    263.36 KB

    2026-02-27

  • Kiinnike1_1.stlDesigner

    2.23 KB

    2026-02-27

  • Kiinnike2_1.stlDesigner

    2.23 KB

    2026-02-27

  • Kiinnike3_1.stlDesigner

    2.23 KB

    2026-02-27

  • Kiinnike4_1.stlDesigner

    56.92 KB

    2026-02-27

  • Bag_holder_1.stlDesigner

    137.88 KB

    2026-02-27

  • Bag_holder_2.stlDesigner

    136.12 KB

    2026-02-27

  • Top_Cover_1.stlDesigner

    188.56 KB

    2026-02-27

  • Top_Cover_2.stlDesigner

    188.56 KB

    2026-02-27
