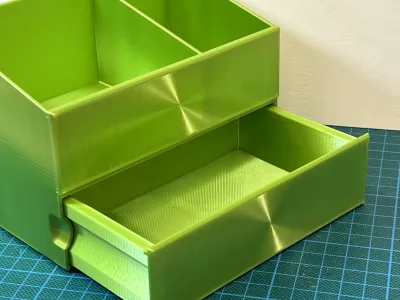

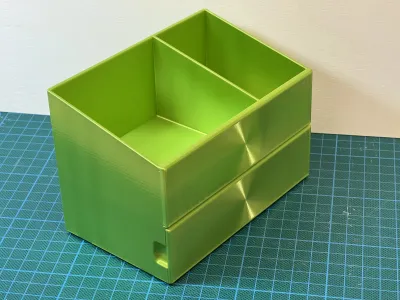

This is a simple organizer box with a small drawer. I designed this box as a study to see how well a drawer with two rounded rails will work. Actually pretty good. 😄 That's why I am sharing this design, as it might be useful.
The Design

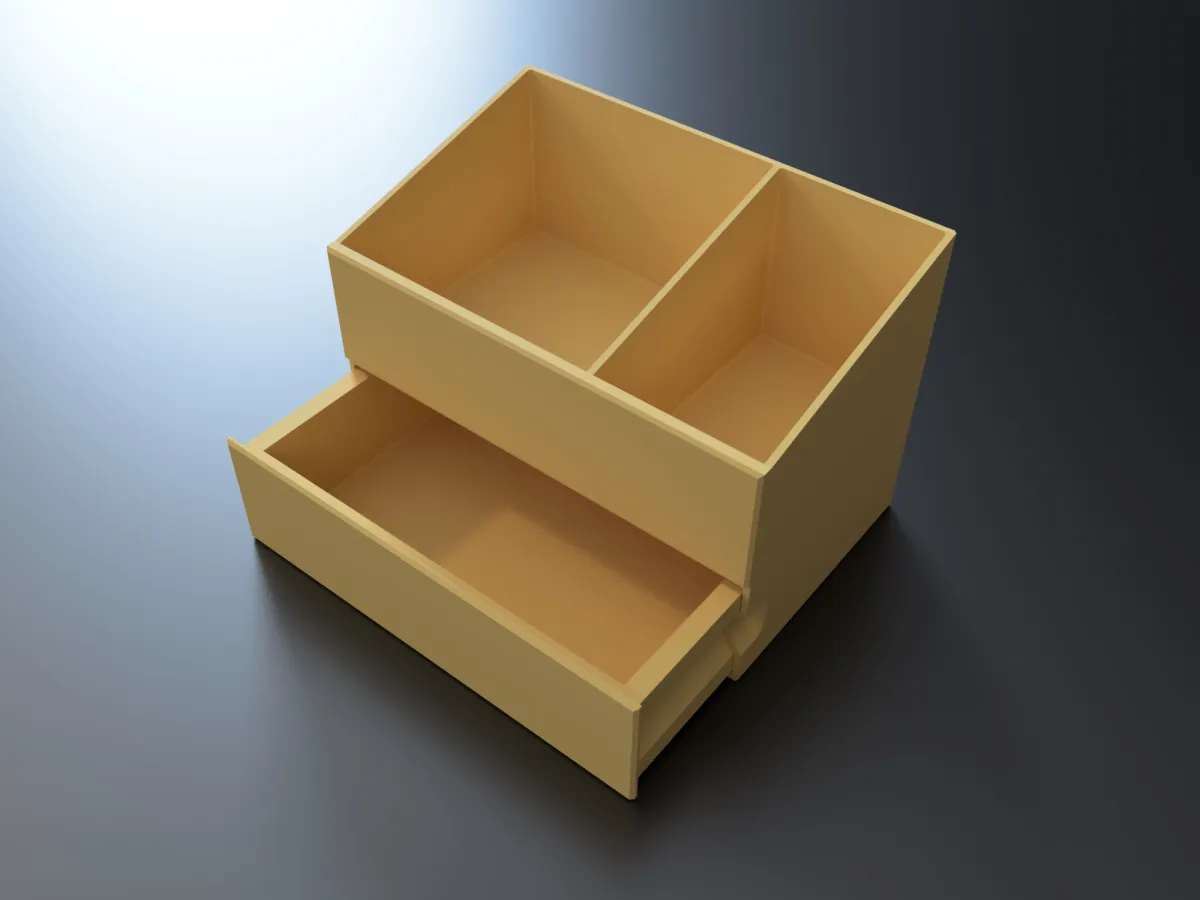

The design consists of four parts: There is the main body of the box, which is printed from the back upwards, the body of the drawer and two front panels. All these parts have keys with a really tight fit. Usually, if you slide the front panels into their positions, they will be held there without glue.
Assembly
You hear a clicking sound if the panel fits, and the upper border and side borders are perfectly flush with the main body of the box.
The border of the panel should sit perfectly in the groove of the drawer body

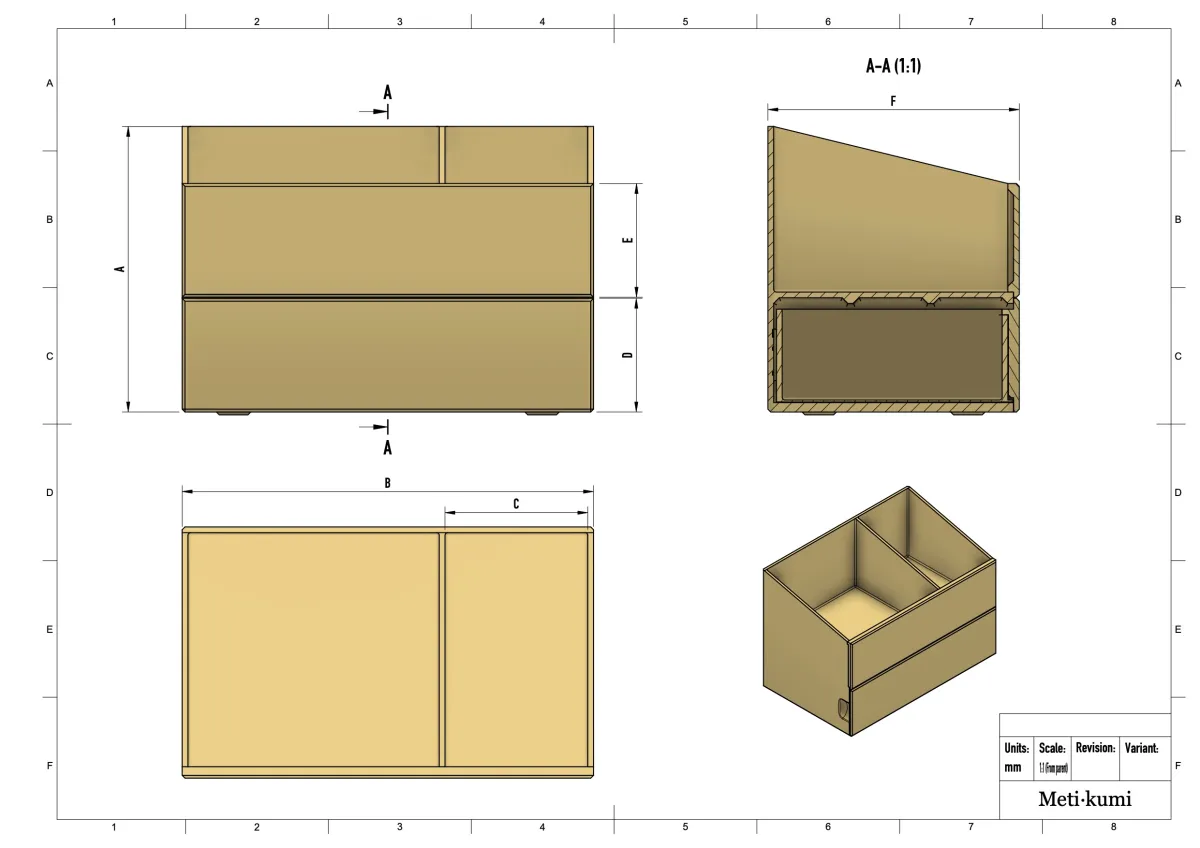

Sizes and Dimensions
| Variant ↓ / Dimension → | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| A | 100 | 144 | 50 | 40 | 40 | 88 |
| B | 75 | 108 | 40 | 30 | 30 | 96 |
| C | 100 | 208 | 80 | 40 | 40 | 128 |
