Rotating Platform for SMD Assembly
Print Profile(0)

  • Earn points by adding print configurations

1

3

61

7

Released 2025-10-21
Details
Files(3)
Makes & Comments (0)

Description

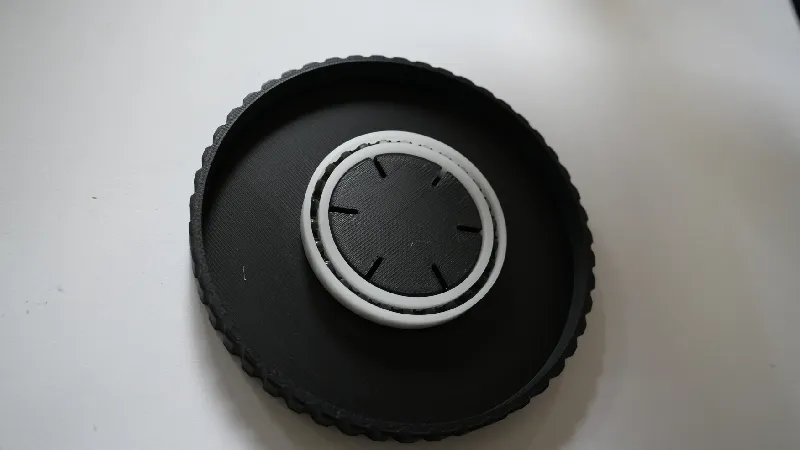

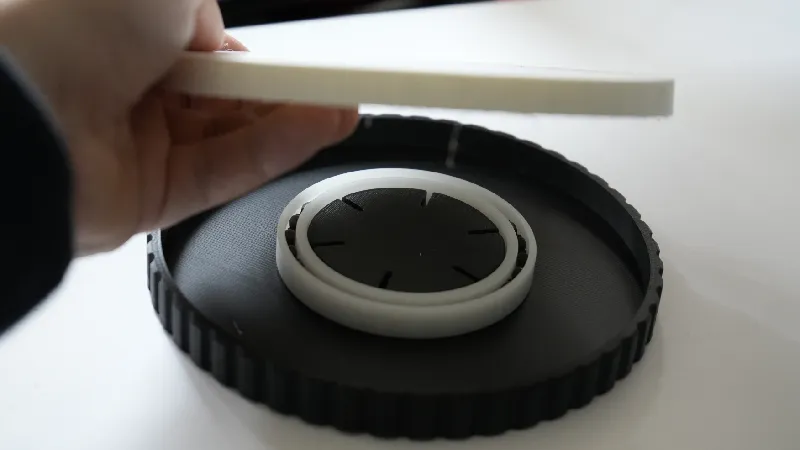

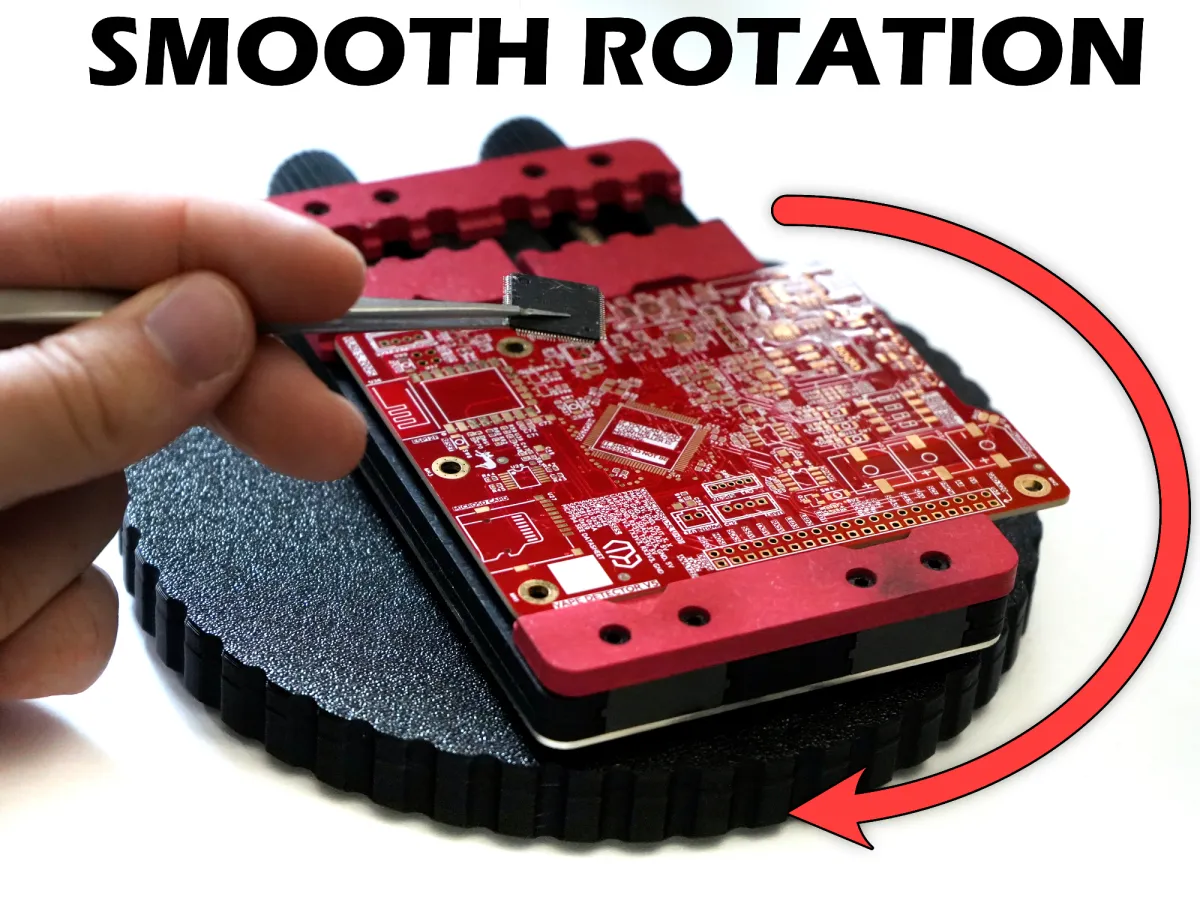

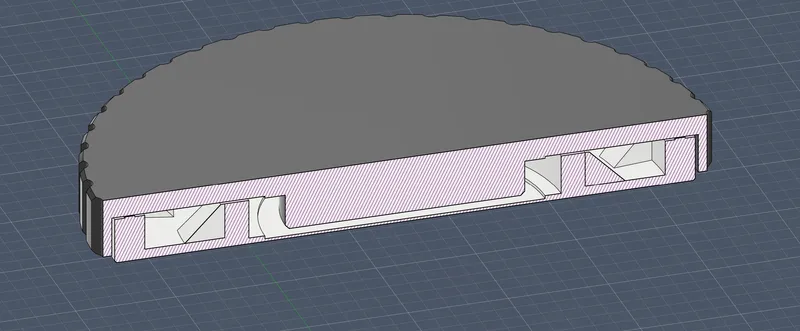

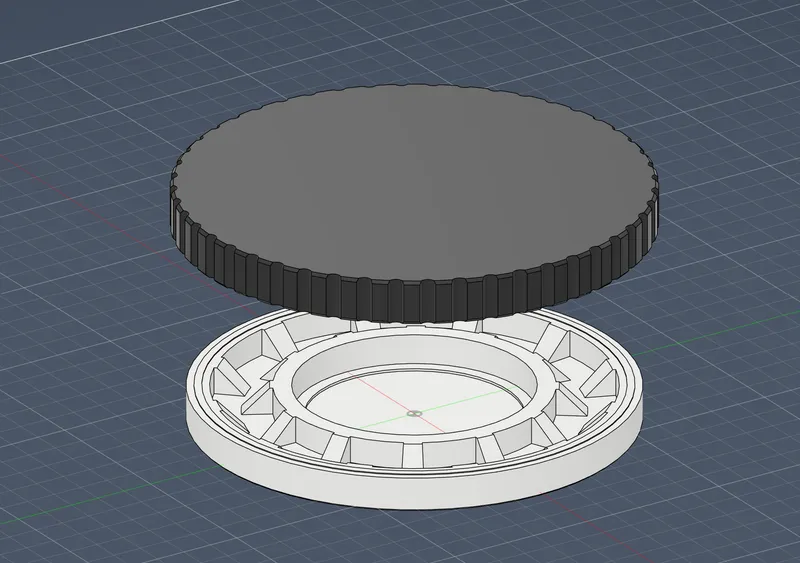

This spinner is designed for assembling SMD components. After applying solder paste, placing small directional components such as diodes, LEDs and chips is often annoying. Instead of straining your wrist to get the perfect alingment, this spinner is designed to easily rotate the entire work piece.

Hardware:
Bearing: 78mm OD, 60mm ID, 10mm height
This bearing is quite large, so I suggest ordering one of these which is made from plastic. I suggest adding rubber feet to the base too.


Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Bearing
    1
    78mm OD, 60mm ID, 10mm height - suggested plastic

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator
