SAE and Metric Bolt Thread Gauge
Print Profile(1)
  • 0.12mm layer, 3 walls, 15% infill

    1-disc

    PLA

    Designer

0

5

70

18

Released 2025-10-03
Details
Files(43)
Makes & Comments (0)

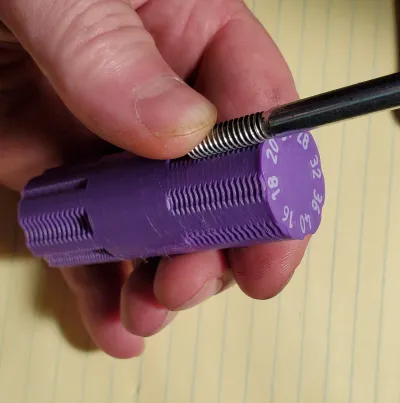

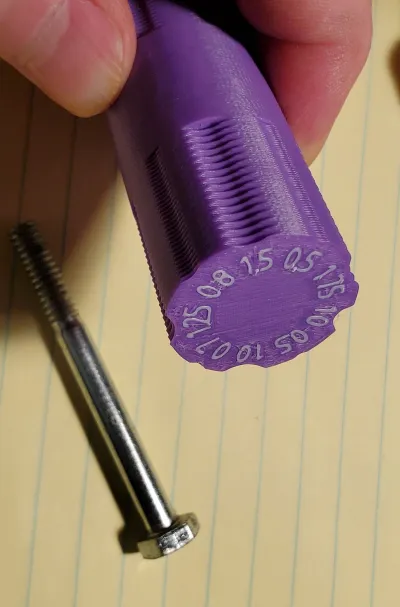

This is a easy to hold thread gauge for “normal” sized bolts. I don't like the time it takes to use the thread gauges that you have to screw a bolt into. I like the thread gauge from my tap and die set, but it also takes too long because you have to fold out each thread blade individually  to check. This gauge, with external threads, has all the most common threads easily accessible so you can quickly find the correct size of a bolt. You just hold the gauge in one hand and slide the bolt against the threads and find the one that catches. Then you read the corresponding label on the top for the threads per inch or threads per mm.
