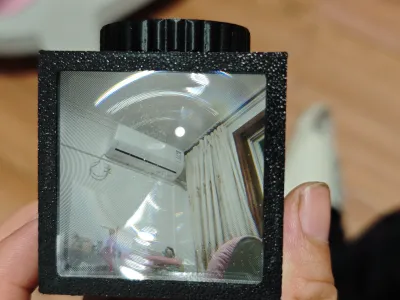

Waist-level horizon viewfinder (full-screen display with no black bars)
Print Profile(1)
  • Single‑plate printing

    1-disc

    PLA

    Designer

1

1

9

4

Released 2025-09-23
Details
Files(1)
Makes & Comments (0)

Haha! The waistline viewfinder has been pretty popular lately, so I decided to whip one up for fun. After several iterations, I’m finally happy enough with this borderless design to share it with the community.

Of course, feel free to leave a comment with any feedback you have—after all, the public’s eye is sharp and discerning; it’s only through everyone’s input that we can truly identify and address any issues.

You’ll need to purchase the following components separately:

1. Double-convex lens, 30mm diameter, 5cm focal length                                                                1 piece

2. Fresnel concentric lens, 50x50x2mm, 5cm focal length, square shape               1 piece

3. Square mirror, 50x50x1mm (a 2mm thickness works just as well)                                              1 piece



Here’s my recommended parts list—but of course, you’re free to customize your selection based on your personal preferences.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    双凸透镜
    1
    直径30mm 焦距5cm
  • 2
    菲涅尔螺纹聚光透镜
    1
    尺寸50*50*2mm，焦距5cm 正方形
  • 3
    正方形镜子
    1
    50*50*1mm（2mm也适用）
