MAC Allister Mitre Saw
Dewalt Vac
saw dust extraction
- 0.2mm layer, 2 walls, 15% infill
1-disc
PLA
Designer
16
4
3mf from orginal CAD model (no taper or rounded edges)
including 3 stl's 1. orginal straight, 2. tapered and rounded edges, 3. 45deg tapered and rounded.
Redrawn in FreeCAD (parametric) Addded with tapered walls and fillets edges to help with adding.
Size text displayed on the body.
A 45 deg version also created to help more keeping hose away from mitre/chop saw.
Printed in PLA elegoo

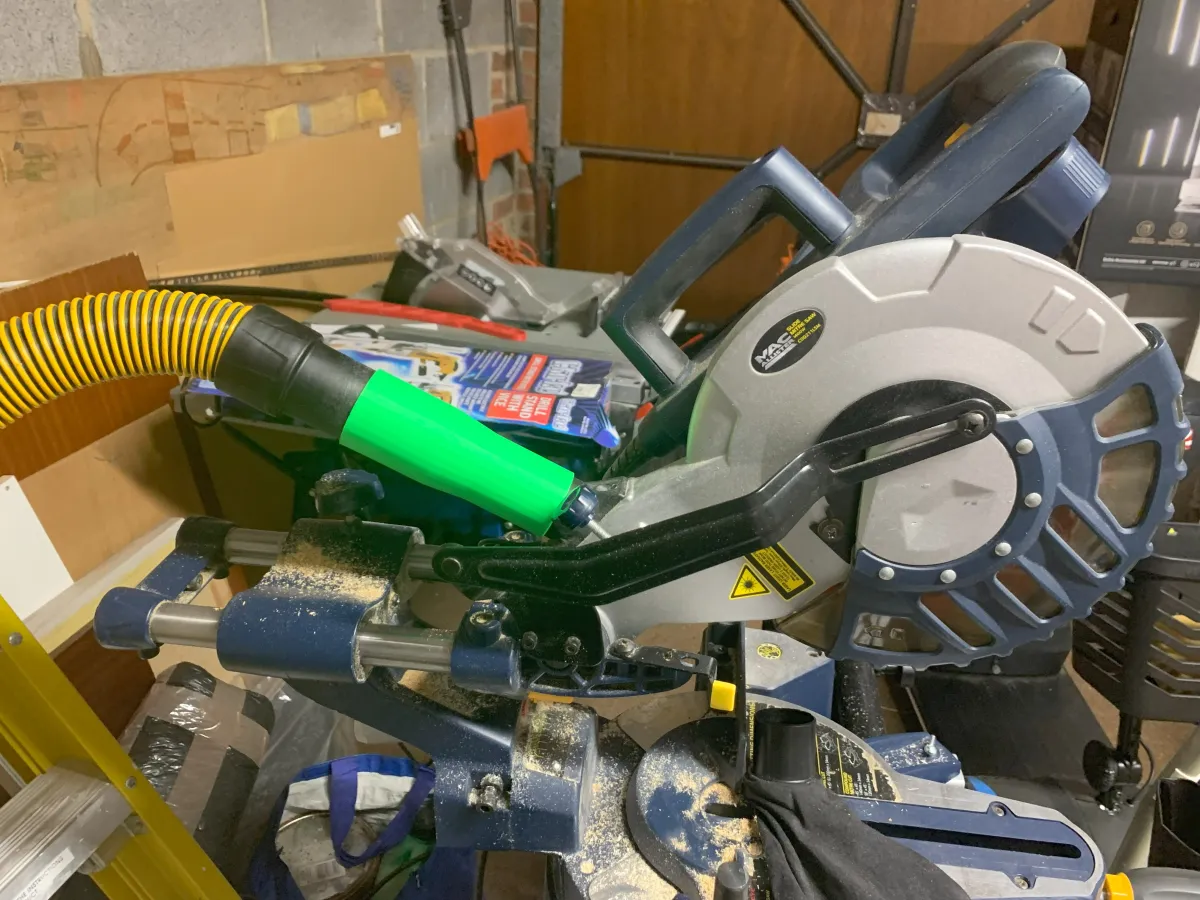

connecting my MAC Allister Slide Mitre Saw to Dewalt shop Vac

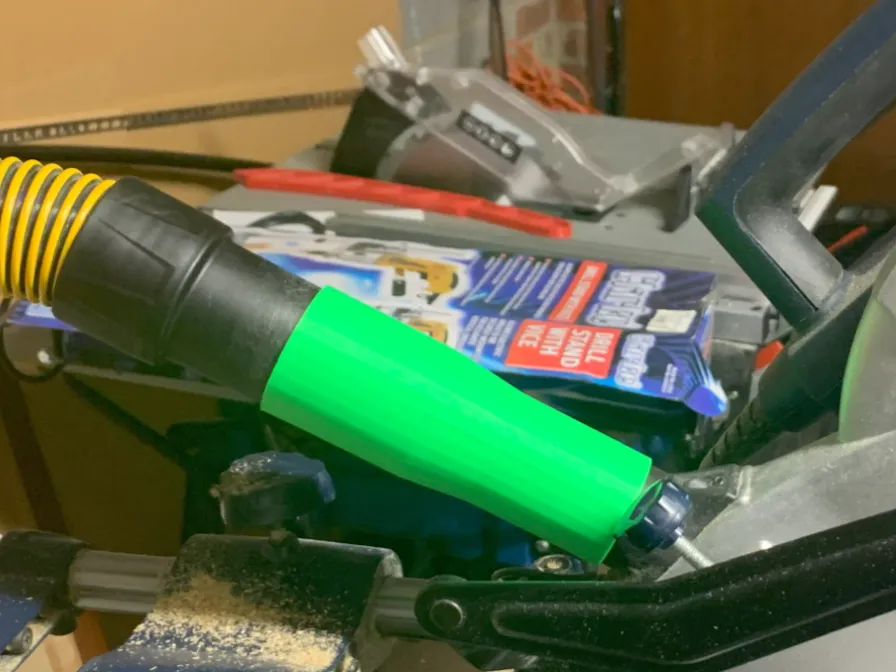

Adaptor goes outside to outside to reduce and shavings and sawdust getting stuck in mitre saw
FreeCAD models attached
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)
- 45-39.5nozz.3mfDesigner
39.74 KB
2025-09-23
45-39.5nozz.stlDesigner32.11 KB
2025-09-23
39.5x45 Vac45d.stlDesigner6.56 MB
2025-09-23
M.Saw39.5-D.Vac45-taper.stlDesigner1.96 MB
2025-09-23
View all(4)
Attachments(2)
fcstd
39.5x45 Vac45d.FCStd
679.20 KB
2025-09-23
fcstd
M.Saw39.5-DewaltVac45.FCStd
629.45 KB
2025-09-23
