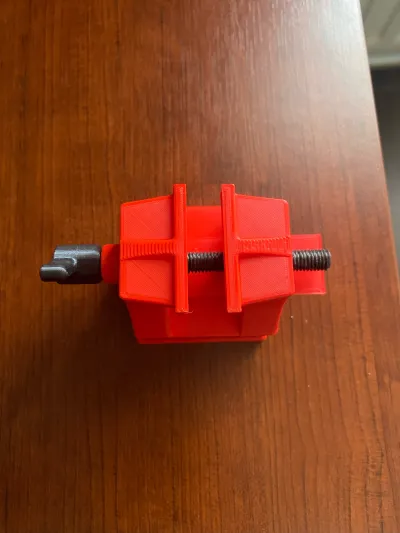

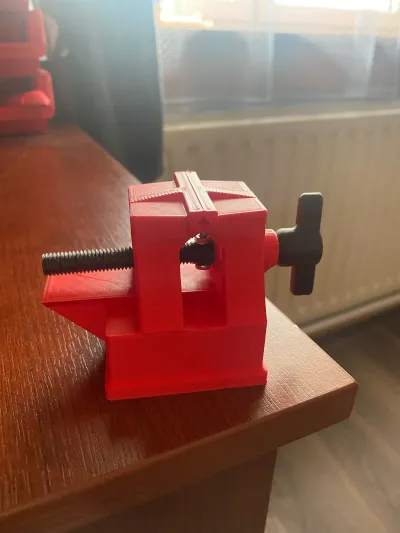

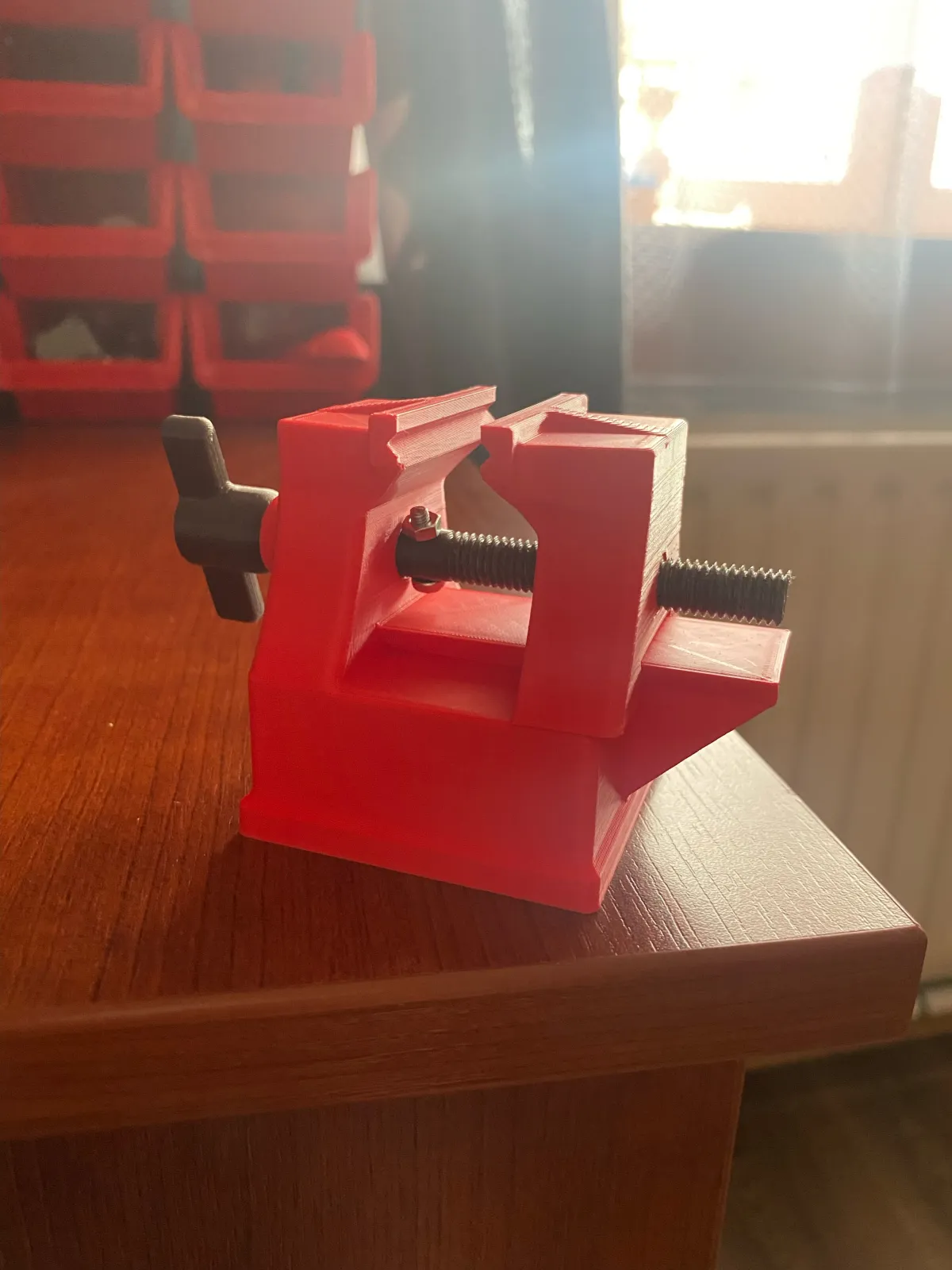

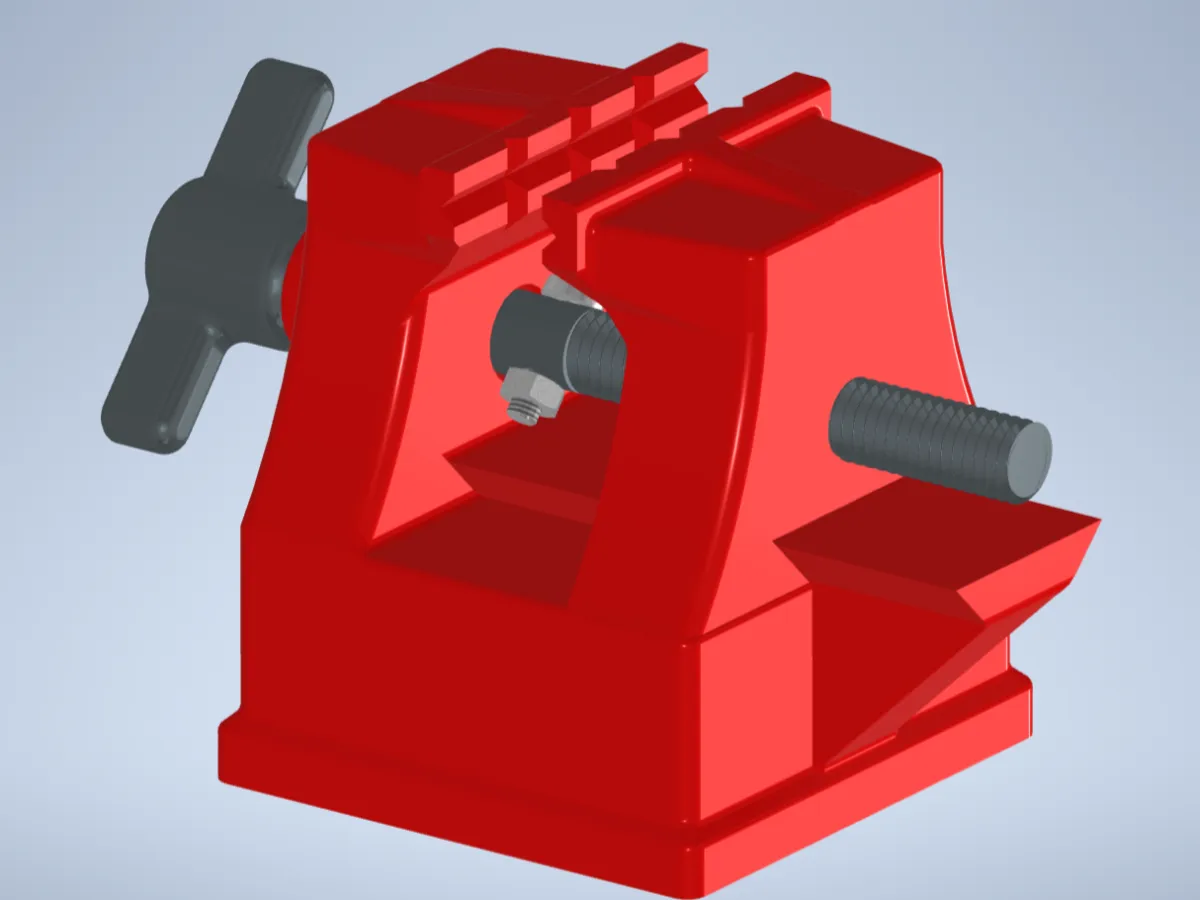

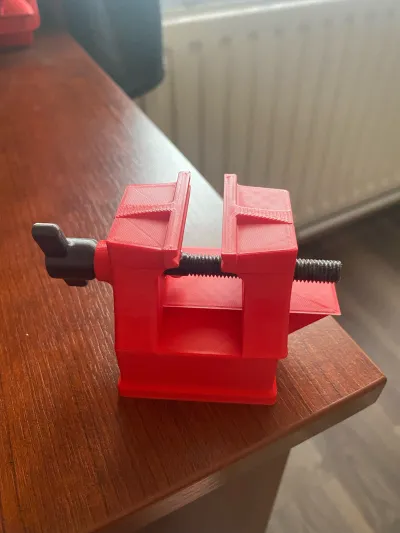

Mini vice consisting of three parts, simple, fast print without supports!
There are 5 types of jaws to choose from, the size of the jaws is 40x7.5 mm, the maximum length between the jaws is 29 mm.
For the smoothest possible operation of all parts of the vise, it is necessary to pass the thread on the moving part of the vice with an M8X1.25 tap, through the hole in the screw base with an 8.5 mm drill bit and thread on the screw with an M8X1.25 thread tap.
The screw is secured against sliding out of the base with an M3 screw.
I recommend printing with PLA / PETG, the screw from PETG.
