ISO 7010 - Warning Sign

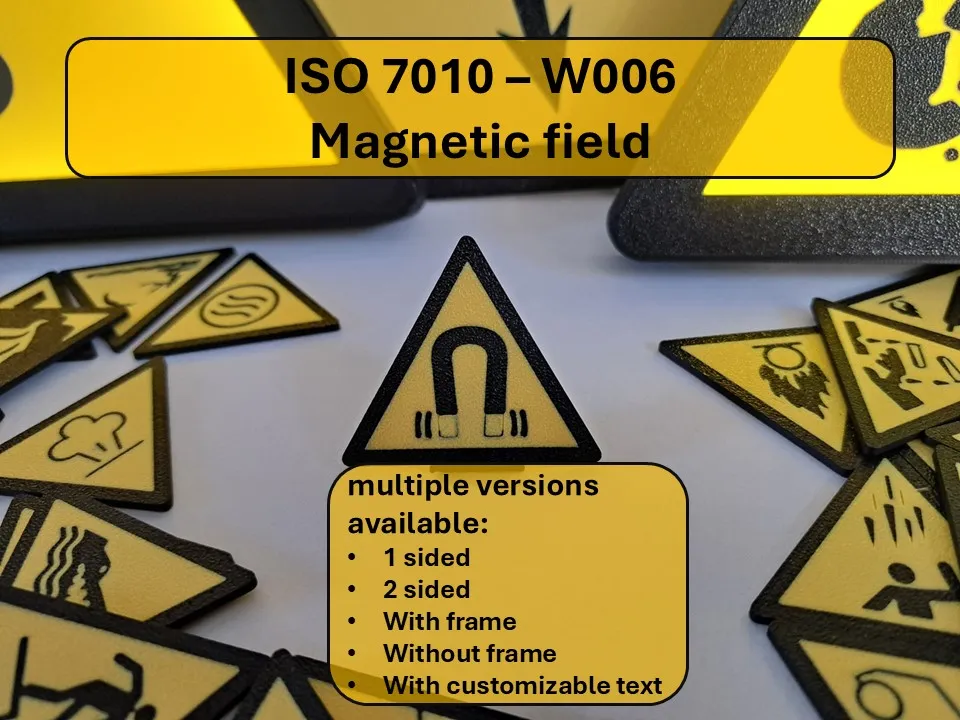

W006 - Magnetic field

A while ago I uploaded a complete set of ISO 7010 signs,

but the quality was not good enough if you wanted to scale them up. I took this as an opportunity to revise the signs.

For this upload, I focused on improving the quality of the source data as well as the user-friendliness.



An AMS is mandatory for printing.



You will find the following pictogram templates in the print profile:

  • Pictogram only visible on one side
    • face-up version
    • face-down version
  • Pictogram visible on both sides (mirrored)
  • Pictogram visible on both sides, scaled-up (show-through)
    • face-up version
    • face-down version
  • Pictogram only visible on one side (with frame)
    • face-up version
    • face-down version
  • Pictogram with customizable Text only visible on one side (with frame)
    • face-up version
    • face-down version

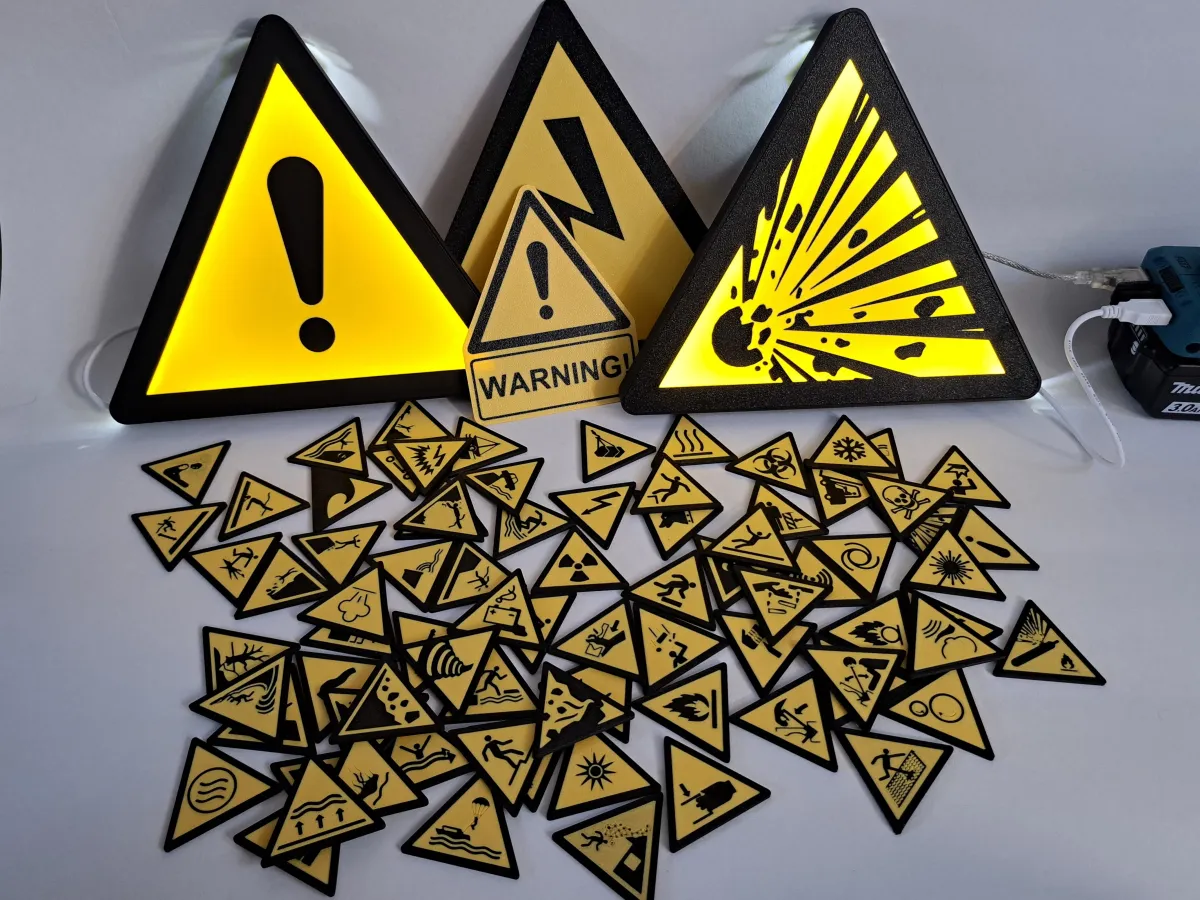

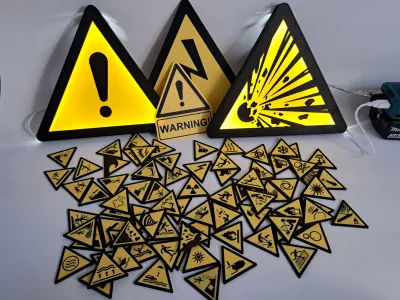

The Cover Pictures show the two sided version scaled to 50%

The Lightbox shown in the pictures will be uploaded at a later tome as this is still a work in progress.

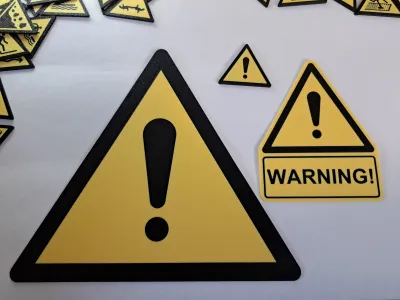

I added Pictures of W001 - General Warning Sign to show the different Versions avaliable.
