Home NAS JBOD Case
Print Profile(1)
  • 0.2mm layer, 3 walls, 12% infill

    3-disc

    PETG

    Designer

5

7

180

19

Released 2025-08-14
Details
Files(2)
Makes & Comments (0)

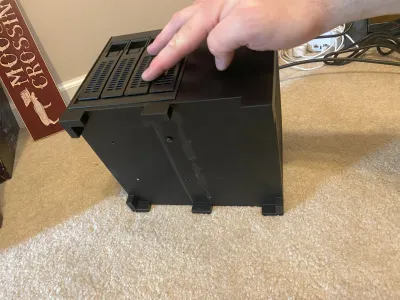

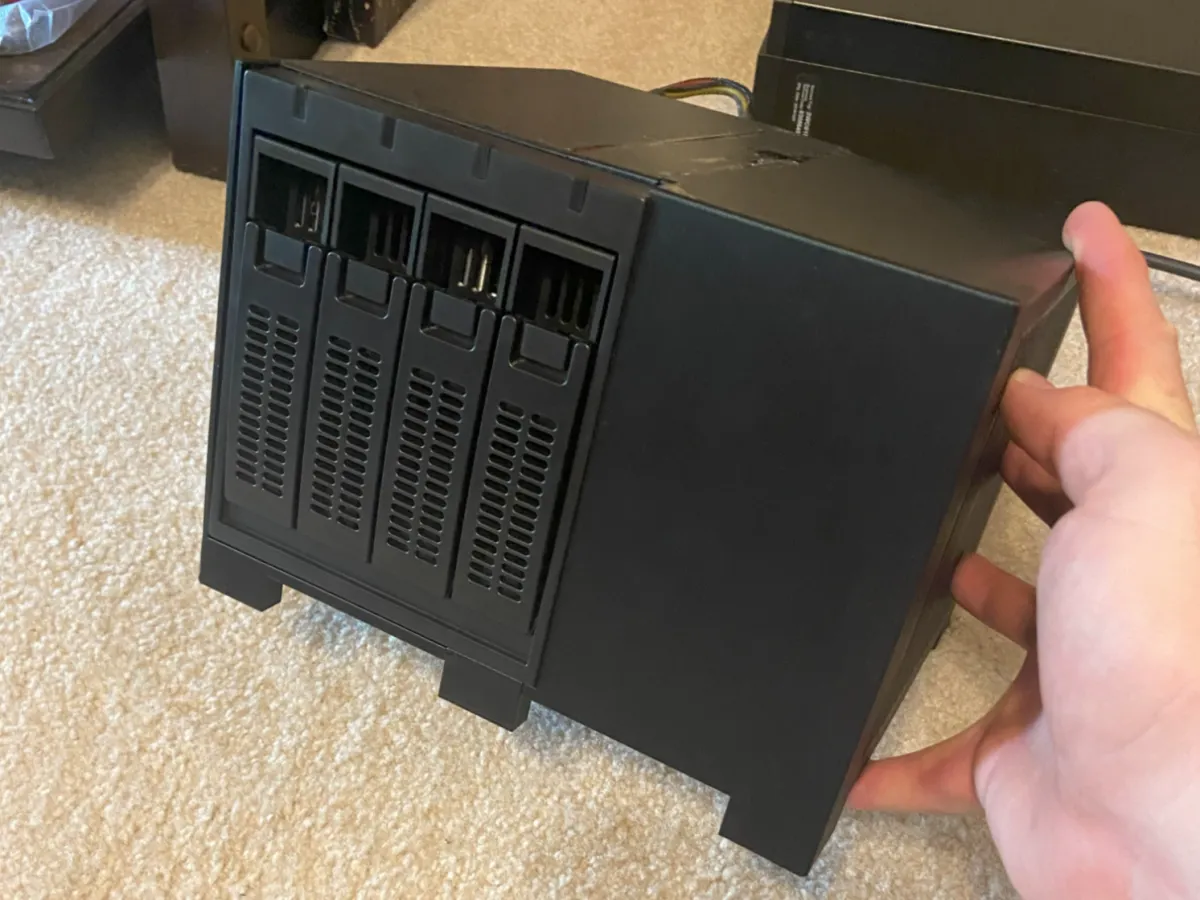

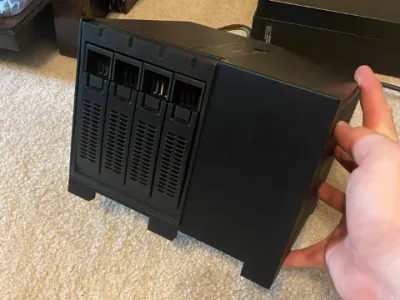

This is a JBOD case I modeled up that makes use of the Rosewill HDD cage Model #RSV-SATA-Cage-34 and an old computer PSU (I used a Corsair CX550, but it should work for a standard sized ATX power supply).

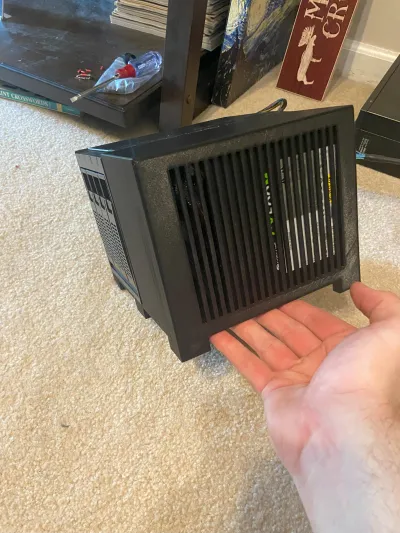

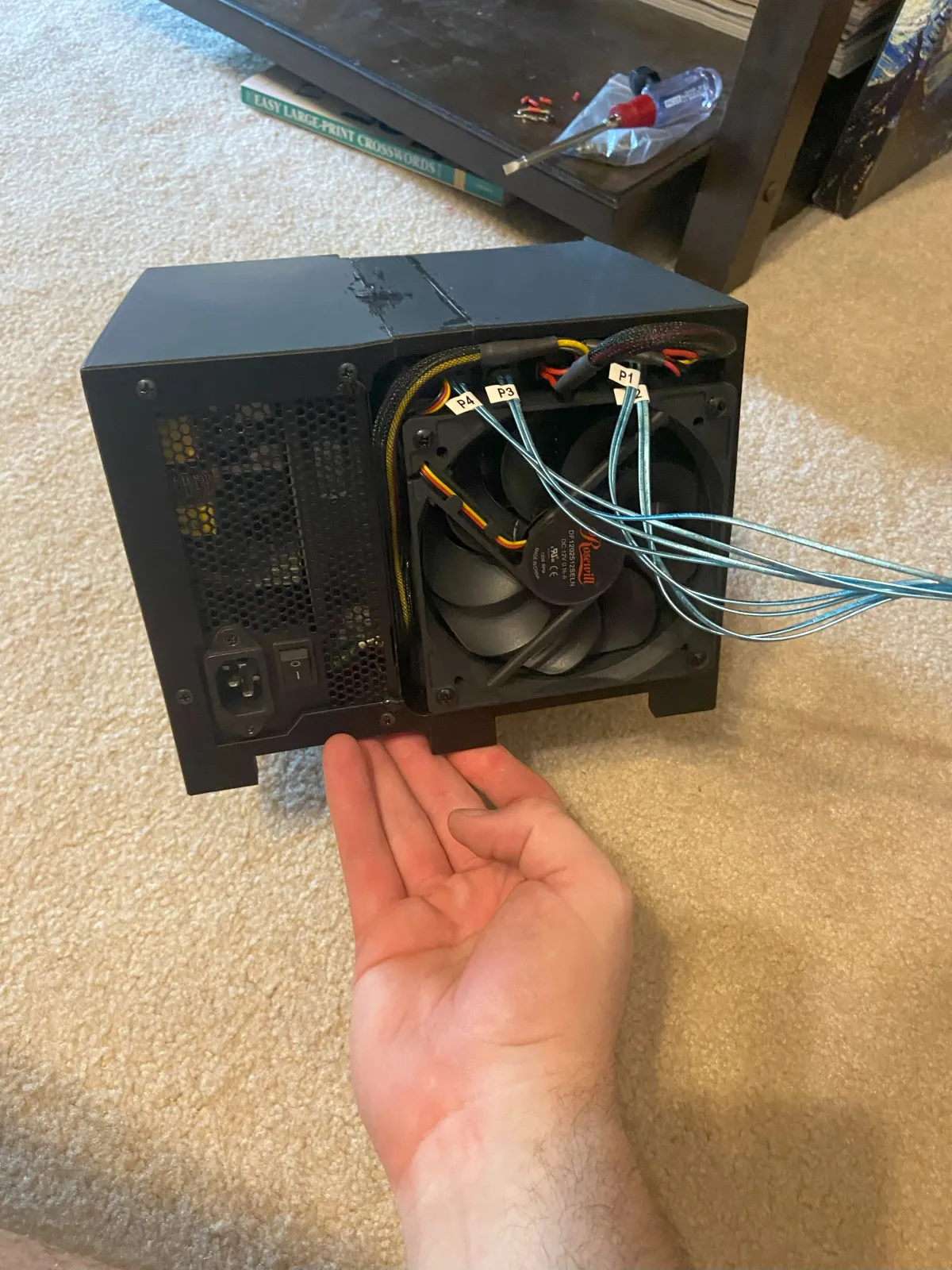

It makes use of 8 screws to hold in the PSU and drive cage. and has vent holes on the sides. The power to the drive cage is routed in the gap between the cage and PSU and the SATA ports on the back of the cage are open for an external cable.



I printed this on my Elegoo Neptune 4 Pro and split it into 4 pieces (left side, right side, and the middle strip that was split top/bottom) so that it wouldn't need any support material.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Screws
    8
    #6-32 screw (standard for PC cases/components)
  • 2
    Power Supply
    1
    Corsair CX550
  • 3
    Hard Drive Cage
    1
    Rosewill RSV-SATA-Cage-34

Originality of the Model

The author declares that this work is their personally original model
