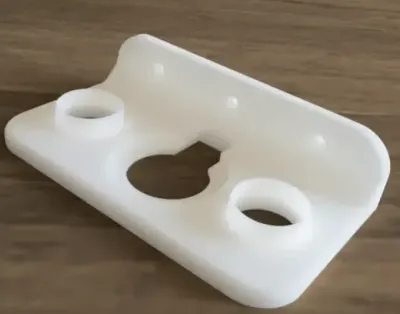

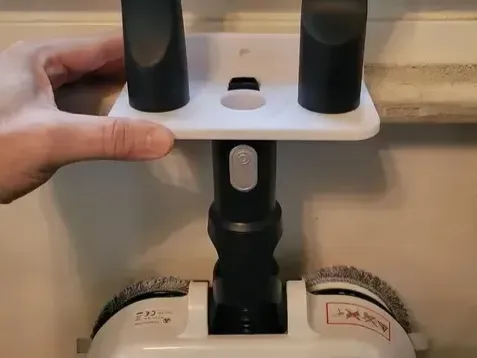

Bosch Unlimited series upright hoovers are supplied with a wall bracket/charger, but without a bracket for accessories (various brushes, aqua head, etc.).So here's a wall bracket for one ‘heavy’ accessory (Aqua head) and 2 light accessories (brushes, etc.).

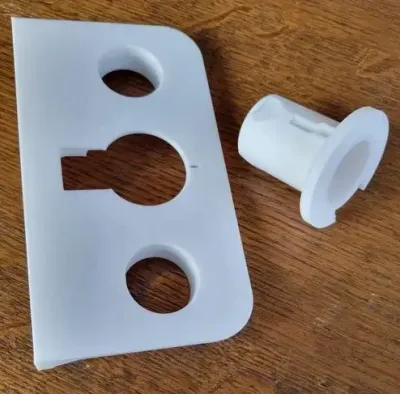

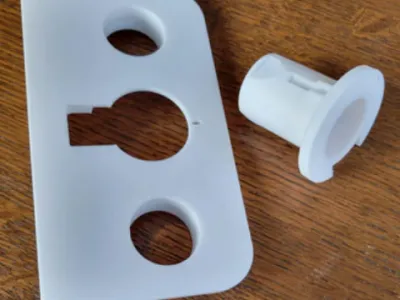

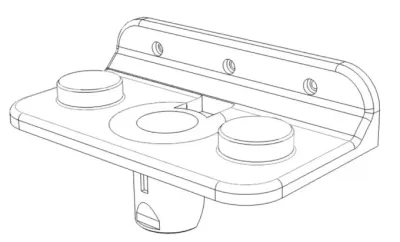

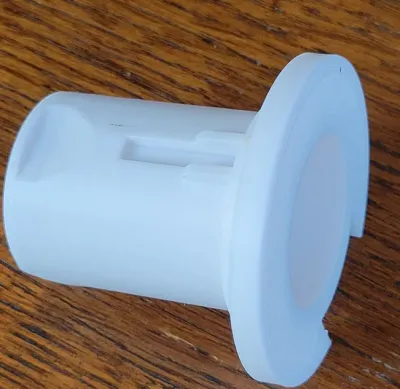

The stand is designed in 2 parts, to be glued after printing. This approach avoids the need for supports and produces parts that are sufficiently strong.
   - Print the 2 parts in PLA / 25% infill.
   - Adjust the number of walls to ensure overall strength (I printed 4 walls).
   - Then assemble the parts. I glued them together using Neoprene glue.

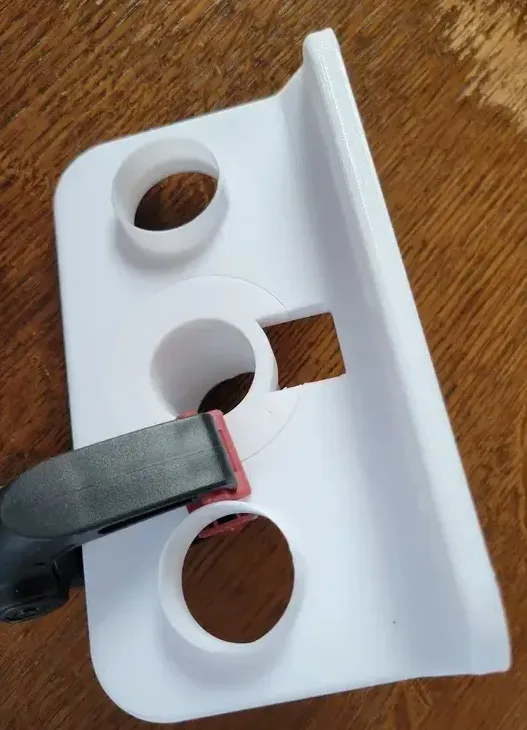

   - Leave to clamp reasonably tight for 24 hours.
   -  Screw it to the wall and voilà!

-----

Les aspirateurs-balai de la série Unlimited Bosch sont livrés avec un support / chargeur mural, mais sans support pour les accessoires (divers brosses, tête aqua, etc.)
Voilà donc un support mural pour un accessoire « lourd » (tête Aqua) et 2 accessoires légers (brosses, etc.).
Le support est conçu en 2 parties, à coller après impression. Cette approche permet d’éviter les supports et permet d’obtenir des pièces suffisamment résistantes.
    - Imprimez les 2 pièces en PLA / 25% de remplissage.
    - Adaptez le nombre de paroi pour garantir la solidité d’ensemble (j’ai imprimé 4 parois)
    - Puis assemblez les pièces. J’ai assemblé par collage à la colle Néoprène.
    - Laissez un serrage raisonnable pendant 24h
    - Vissez le tout au mur et voilà
