Overhang test 0.08 layer height profile
Print Profile(2)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PETG

    Designer
  • Overhang test

    1-disc

    PLA

    Designer

1

5

81

29

Released 2025-07-26
Details
Files(2)
Makes & Comments (0)

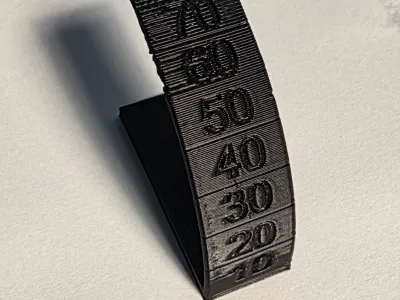

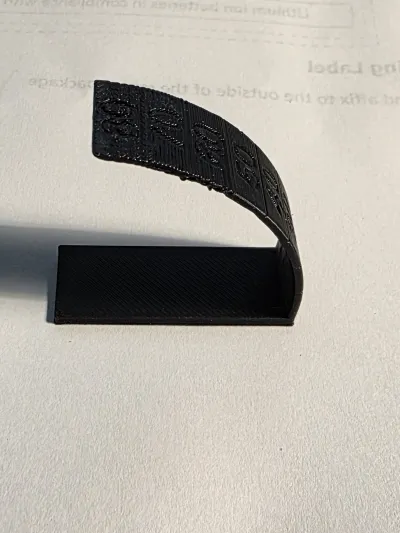

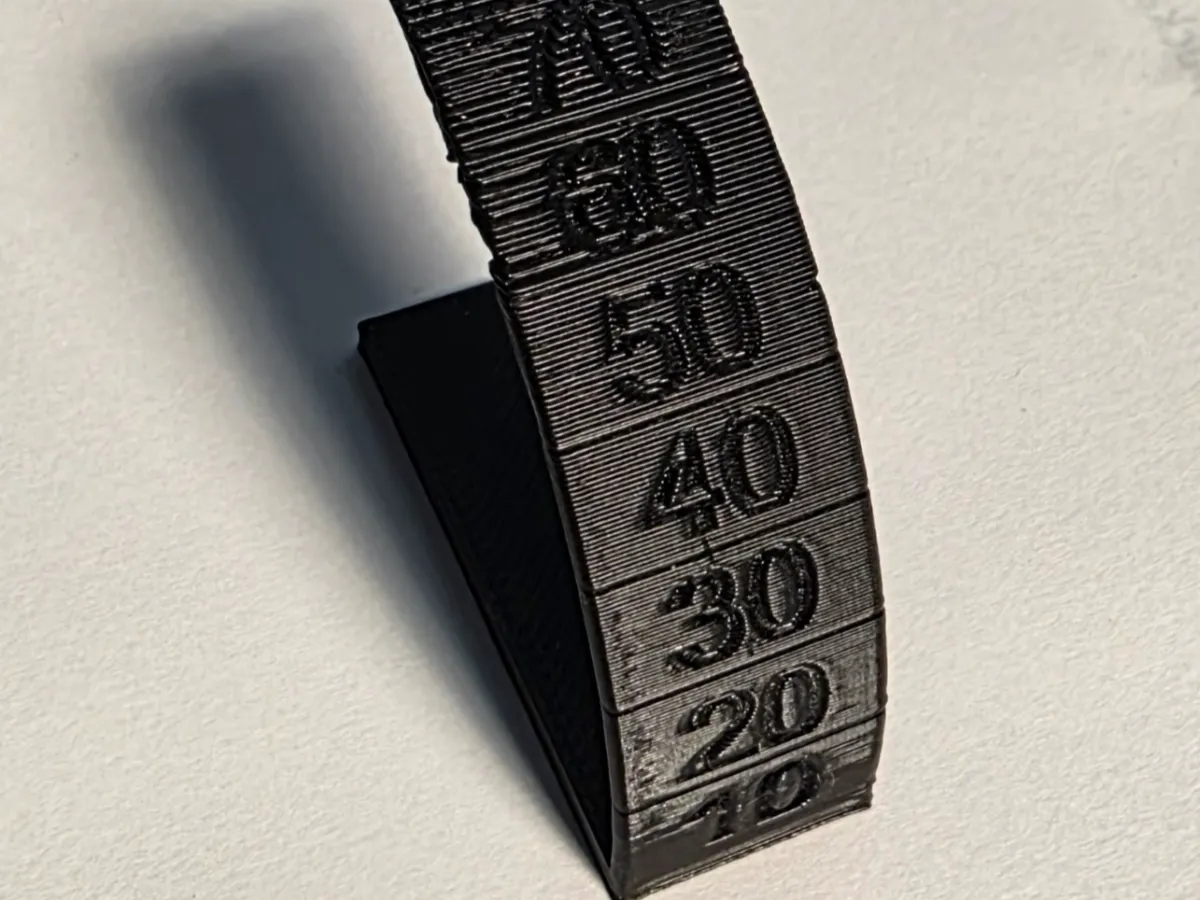

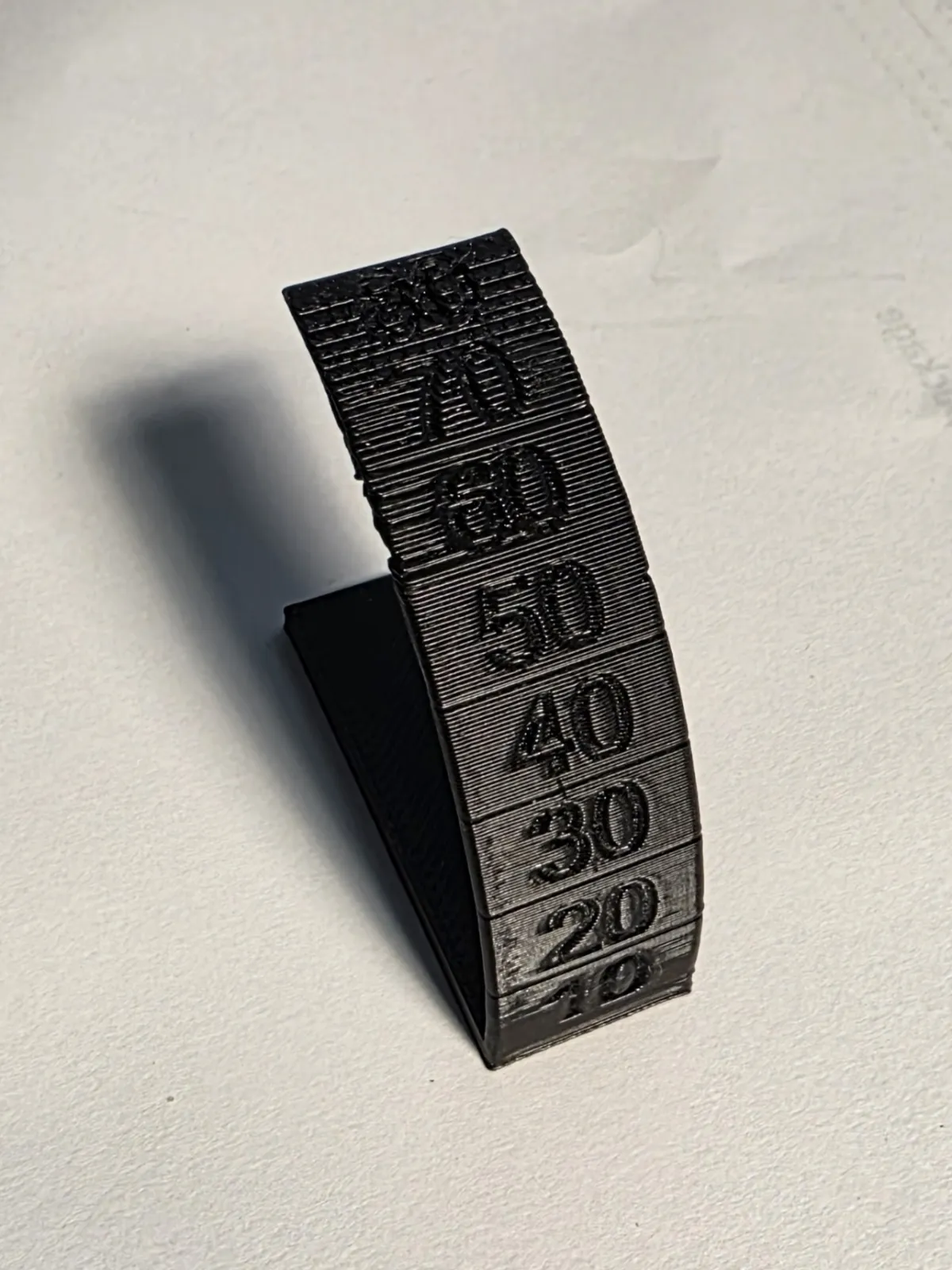

Here are 2 profiles for 0.4 nozzle overhang testing, the 0.08 profile shows improved results over the standard 0.2. The finished print was surprisingly worse than the slicer predicted. Slicer results showed the overhang failing at 65%, when in reality the print started to fail at the 58% area. This was using Elegoo standard PLA

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    Overhang test 0.08 layer height profile.3mfDesigner

    131.70 KB

    2025-07-25

  • model file image
    Overhang test standard profile.3mfDesigner

    131.30 KB

    2025-07-25
