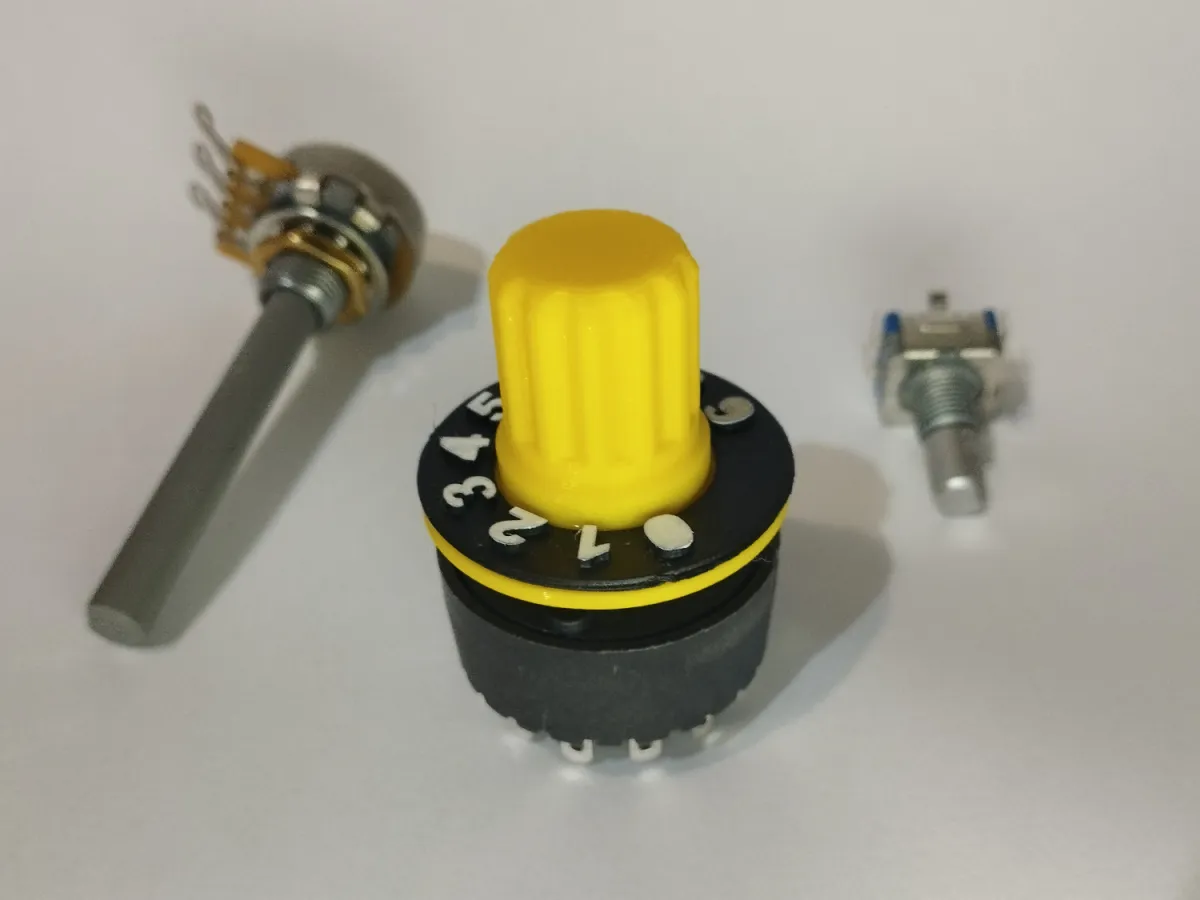

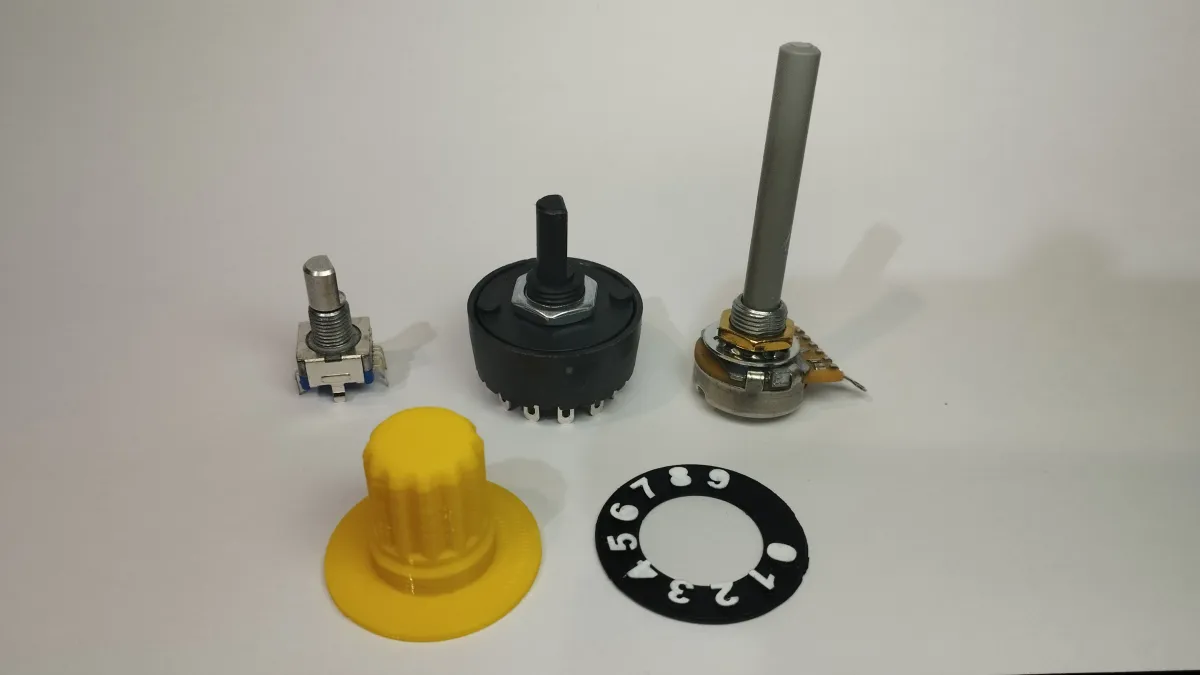

Universal  auto-adjustable  D-shaft knob cap with numbered dial plate set, ideal for rotary switches, rotary encoders and potentiometers.

Perfect for use DIY electronic projects, guitars, amplifiers, MIDI controllers, vintage-style equipment, and so on.



This design offers a clean appearance, excellent tactile feedback, and highly visible numbers for precise adjustments.

For best visual results, I recommend printing the numbered dial plate using a 3D resin Printer. The numbers are embossed, allowing you to easily highlight them by applying paint over the surface without affecting the plate itself. A white permanent marker also works very well to improve contrast and visibility.

I recommended you the use of this product: https://s.click.aliexpress.com/e/_c4eHws2b



The inner profile is designed to provide a secure friction fit on standard potentiometer shafts, helping prevent the knob from slipping or falling off.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(2)

  • model file image
    encoder_cap.stlDesigner

    2.70 MB

    2026-02-17

  • model file image
    encoder_numbers.stlDesigner

    795.01 KB

    2026-02-17
