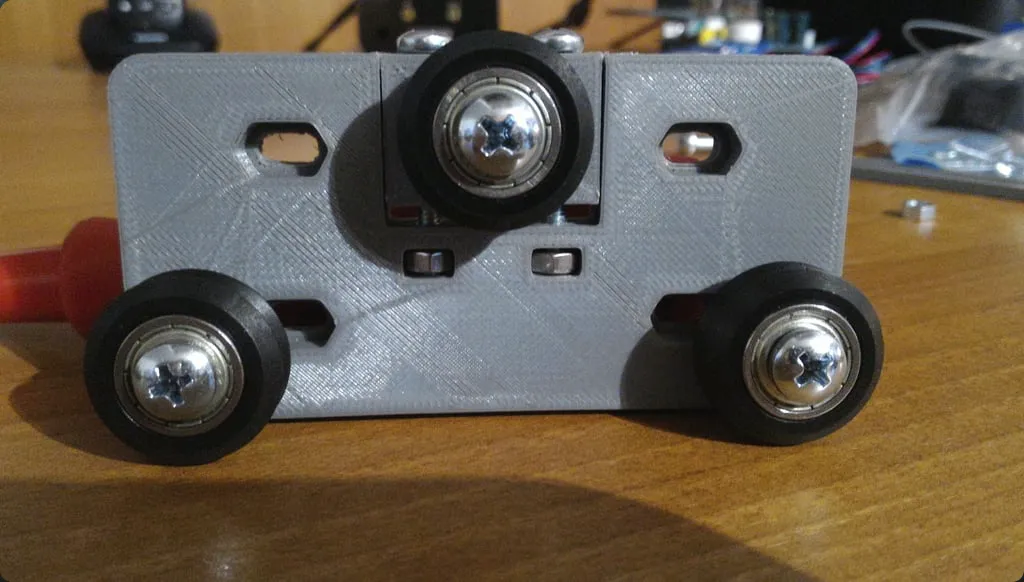

Y-axis trolley for Anet A8, use the V-Slot wheels with the advantage of excellent smoothness, very little wear, no lubrication, very silent, before assembling them clean and degreased smooth bars.

Required material: Six 24 mm V-Slots with 5 mm hole (are generally found easily) six 20 mm M5 screws, six M5 nuts, twelve M4 nuts, four 40 mm M4 screws.

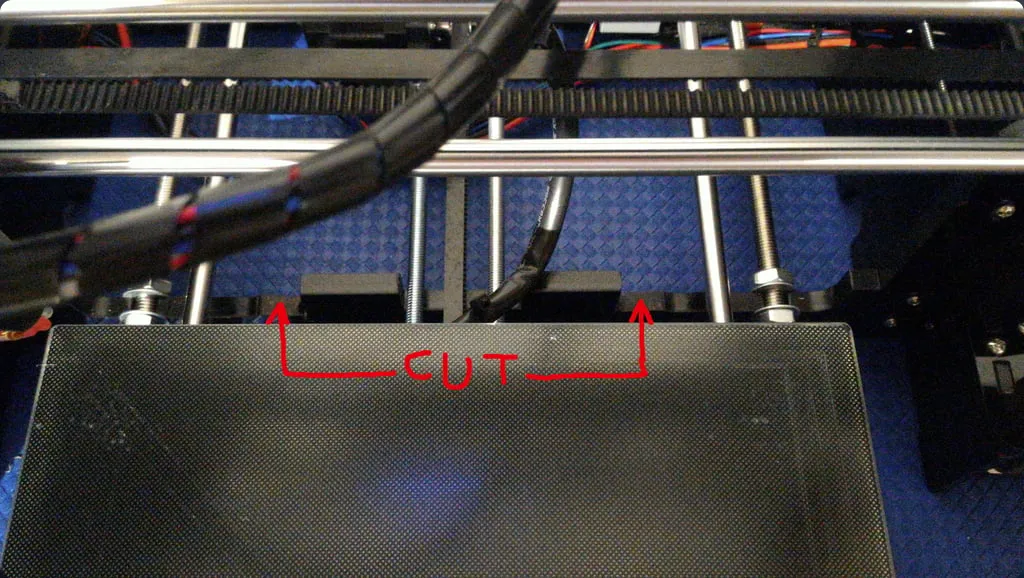

Attention, in some cases, but not always because the Anet A8 frames are sometimes not the same, it is necessary to cut the frame a little, otherwise the internal wheels do not pass, just a simple hacksaw.
