Ender 3 Extruder Top Mount Uprgade Kit
Print Profile(0)
6
2
Released 2025-07-23

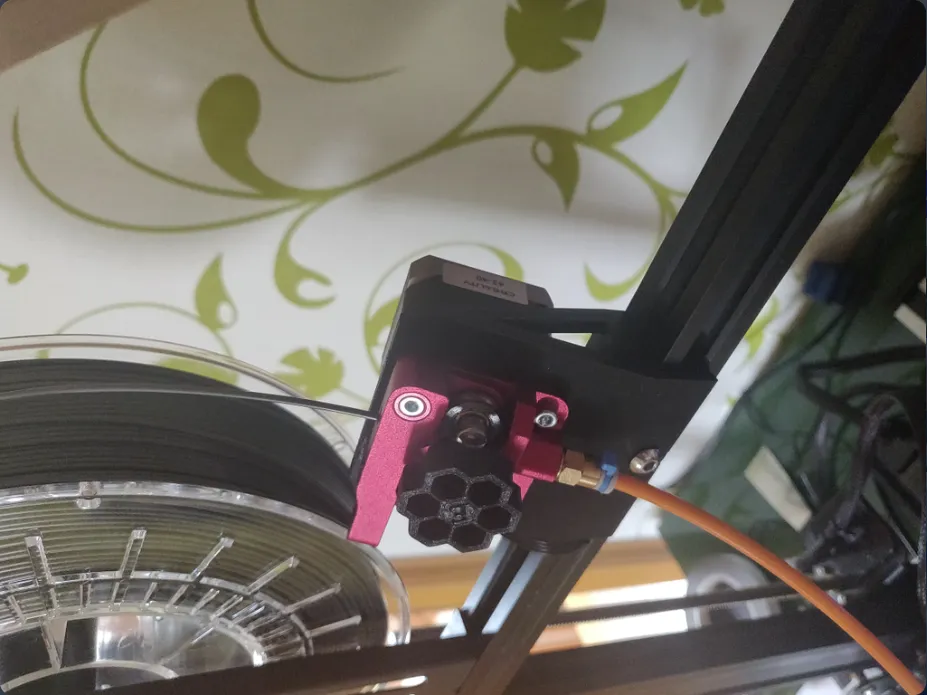

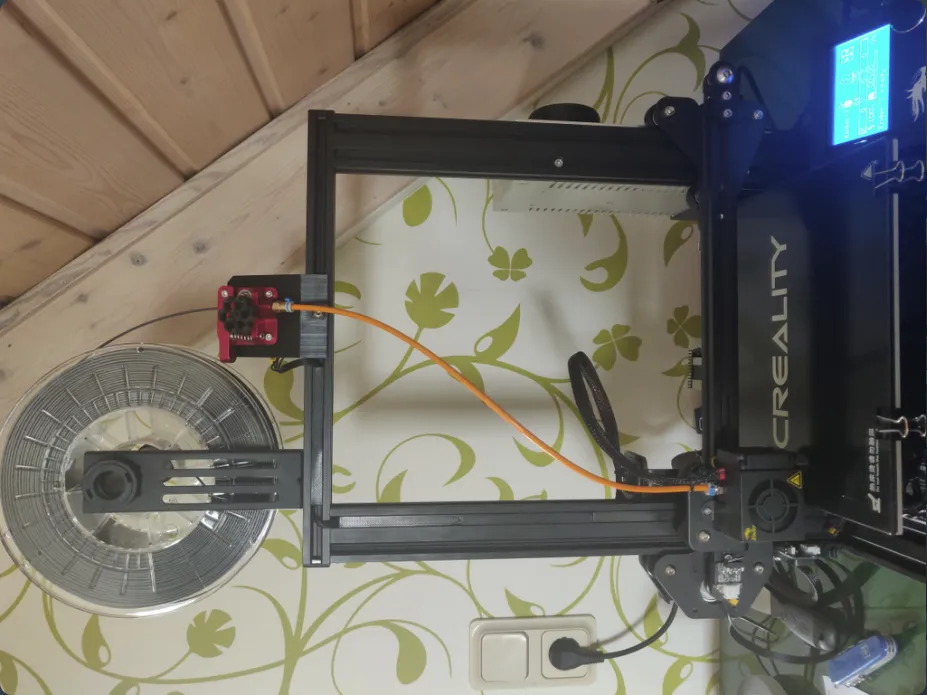

A Uprgade Kit for the Creality Ender 3 to mount the extuder on top of the frame which results with a:
- Straighter bowden tube (less force required to push the filament (higher extusion feedrate in my case))
- less weight on the z cariage
- much better filament guiding
Cable_clip_extruder can be scaled in X direction how you like it (in my case 2 x 190 mm and 1 x 100 mm to cover the complete aluminiumprofile)
You will need a t-nut to prevent the Mount from slipping (normally you have some in the spare parts of the printer)
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
JoVo89
Reprint source:https://www.thingiverse.com/thing:4285664
This model is licensed under the following terms:
Credit must be given to the creator
Models(3)
cable_clip_Extruder.stl
3.40 KB
2025-07-17
- Cable_bracket.stl
21.76 KB
2025-07-17
- Extruder_top_mount.stl
158.19 KB
2025-07-17
