NEMA 17 to 40mm Fan Adapter

Print Profile(0)
3
1
Released 2025-07-16
My extruder motor can get hot after extended prints, even with the current dialed down. I needed a thing to cool the motor and did not find a thing that met my needs.

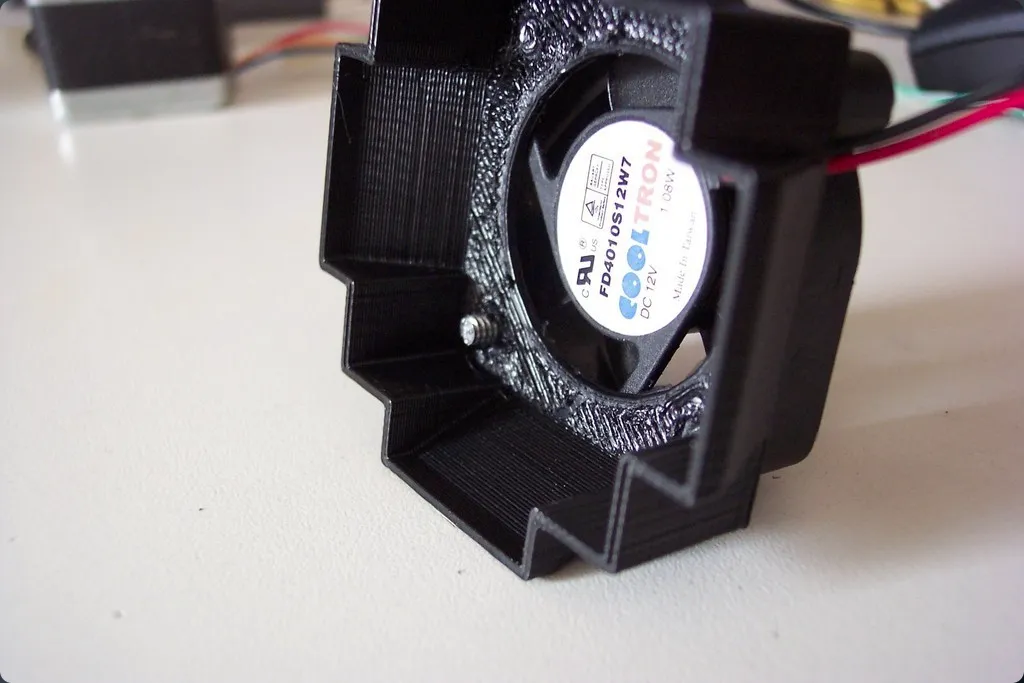

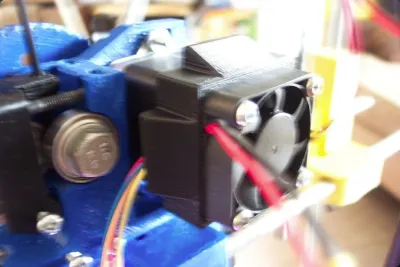

This is a simple adapter to mount a 40mm fan at the back of your NEMA 17 to cool your hot motor.

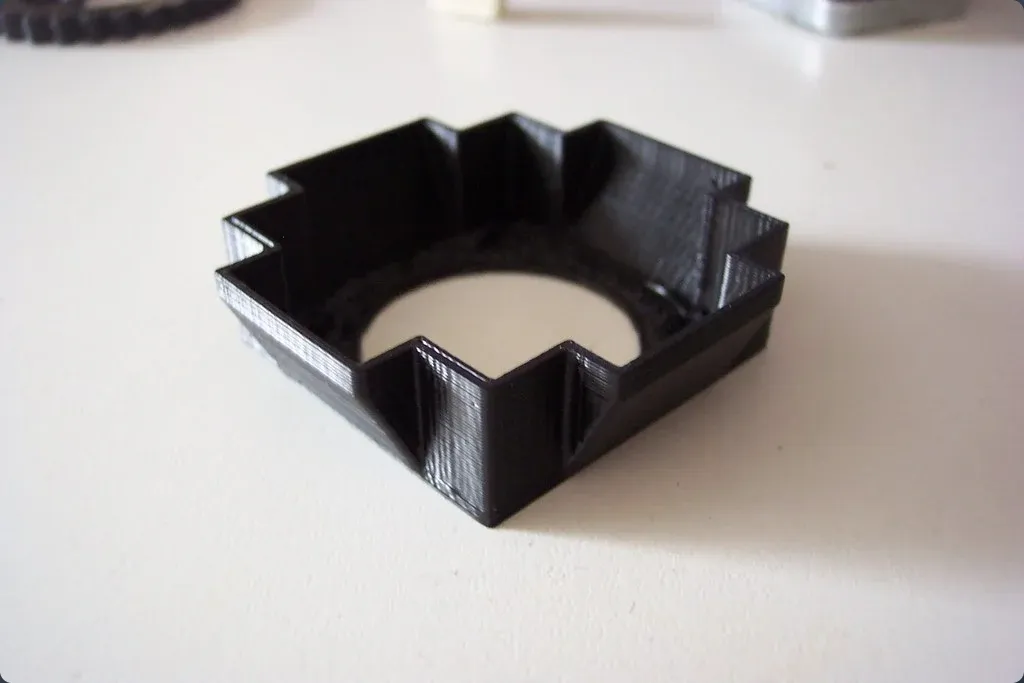

I created the ducts to direct air over the the 4 sides, and away from the hot end or the print.
Originality of the Model
The author declares that this work is their personally shared model
Reprint source:https://www.thingiverse.com/thing:22449
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)
Fan_Motor_adapter_soft__wire_.skp91.71 KB
2025-07-16
Fan_Motor_adapter_solid_wire_.skp91.60 KB
2025-07-16
Nema_17_40mm_fan_adaptor__5__for_solid_wire__.stl159.07 KB
2025-07-16
Nema_17_40mm_fan_adaptor__4_for_soft_wire__.stl32.89 KB
2025-07-16
