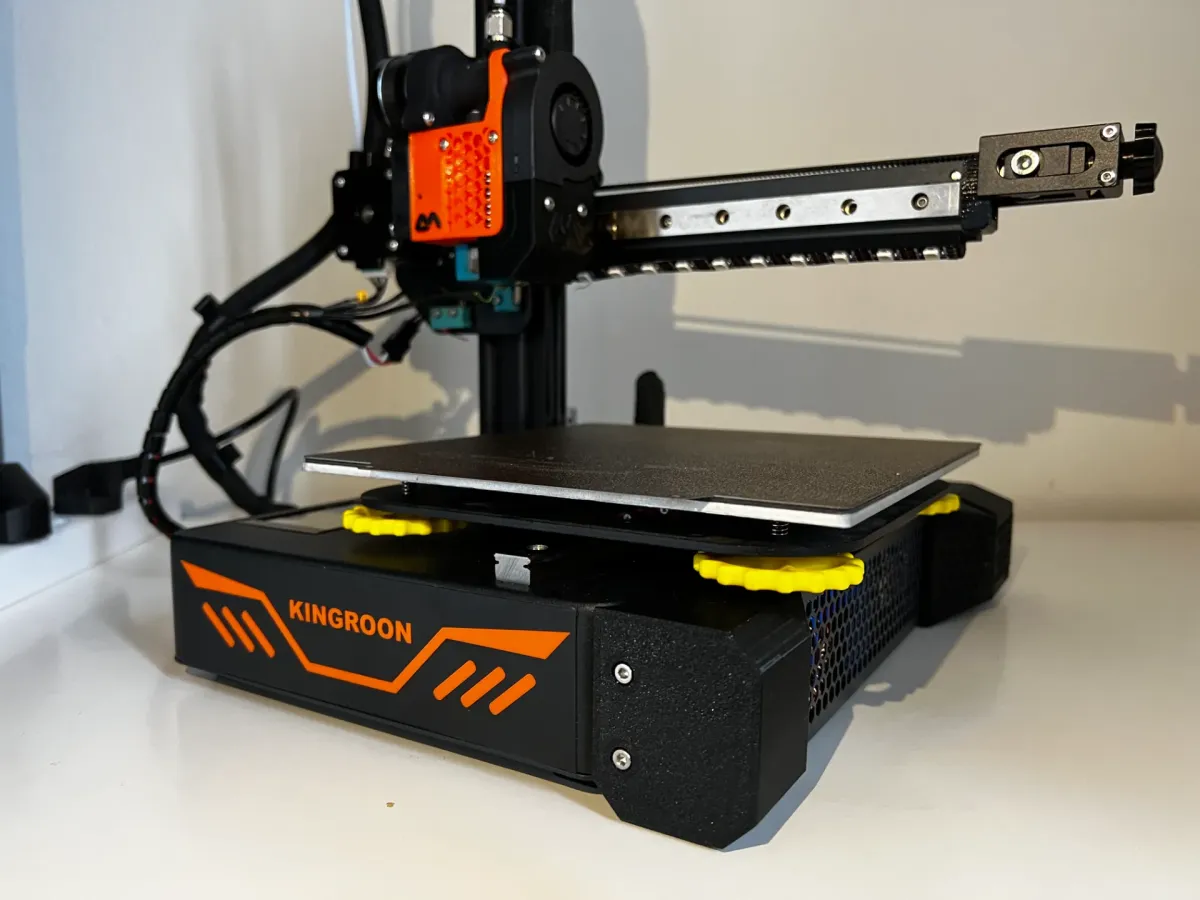

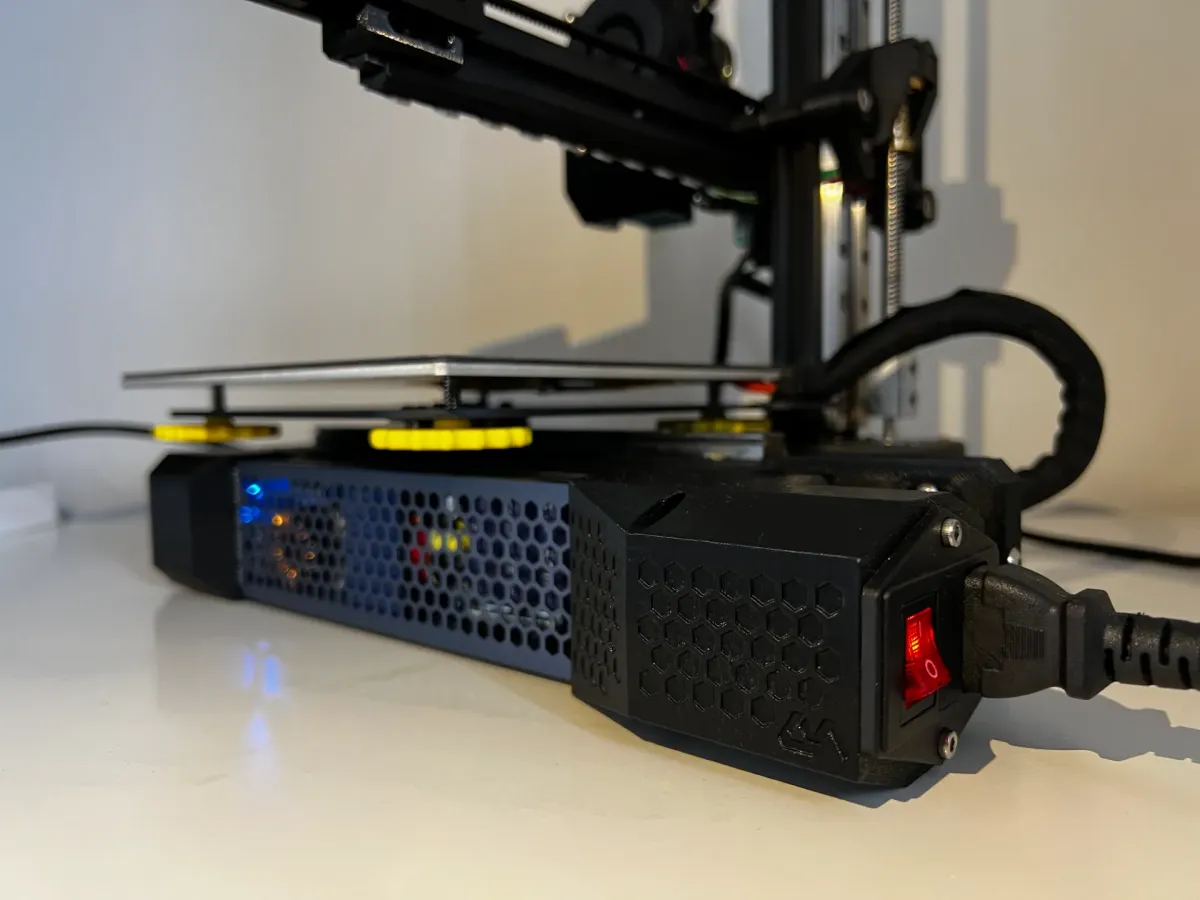

Kingroon KP3S - Compact, Slim and Quiet Power Supply
Attached you can find all you need to assembly the Slim, Compact and Quiet Power Supply on your Kp3s. You will never have a separate power supply on your kp3s again.
Adjunto puede encontrar todo lo que necesita para ensamblar la fuente de alimentación delgada, compacta y silenciosa en su Kp3s. Nunca más tendrá una fuente de alimentación separada en su kp3s.
You can buy me a coffee with a donation. Me puedes invitar a un café haciendo una donación Click to danate
BILL OF MATERIALS
- 1unit – Led Power Supply 24v 400w
Optional:
- 1 unit – Kit soldering iron for heat insert nuts
- 1 unit – 90 Degree Power Cord 90
Version with Heat Inserts:
- 13 units – Insert Nuts M3xD4.6xL4.0
- 6 units – Screw DIN 912 M3x8
- 4 units – Screw DIN 912 M3x10
- 1 unit – Screw DIN 912 M3x20
- 2 units – Screw DIN 912 M3x30
- 2 units – Washer DIN125 M3
Version with Nuts
- 13 units – Nuts DIN934 M3
- 6 units – Screw DIN 912 M3x8
- 2 units – Screw DIN 912 M3x10
- 2 units – Screw DIN 912 M3x16
- 1 unit – Screw DIN 912 M3x20
- 2 units – Screw DIN 912 M3x30
- 2 units – Washer DIN125 M3
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
kp3s_power_supply.3mfDesigner2.19 MB
2025-07-06
