[PROTOTYPE series model] 2.0 inch TFT integrator
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 5% infill density

    1-disc

    PETG

    Designer

2

1

5

0

Released 2025-07-04
Details
Files(1)
Makes & Comments (0)

, with my ordeal, there are new grape taipu (PROTOTYPE) series models ~

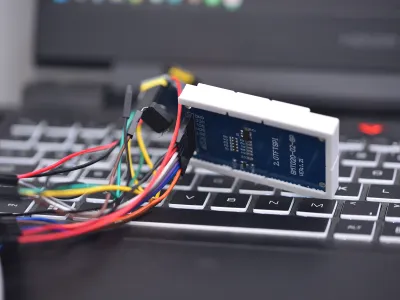

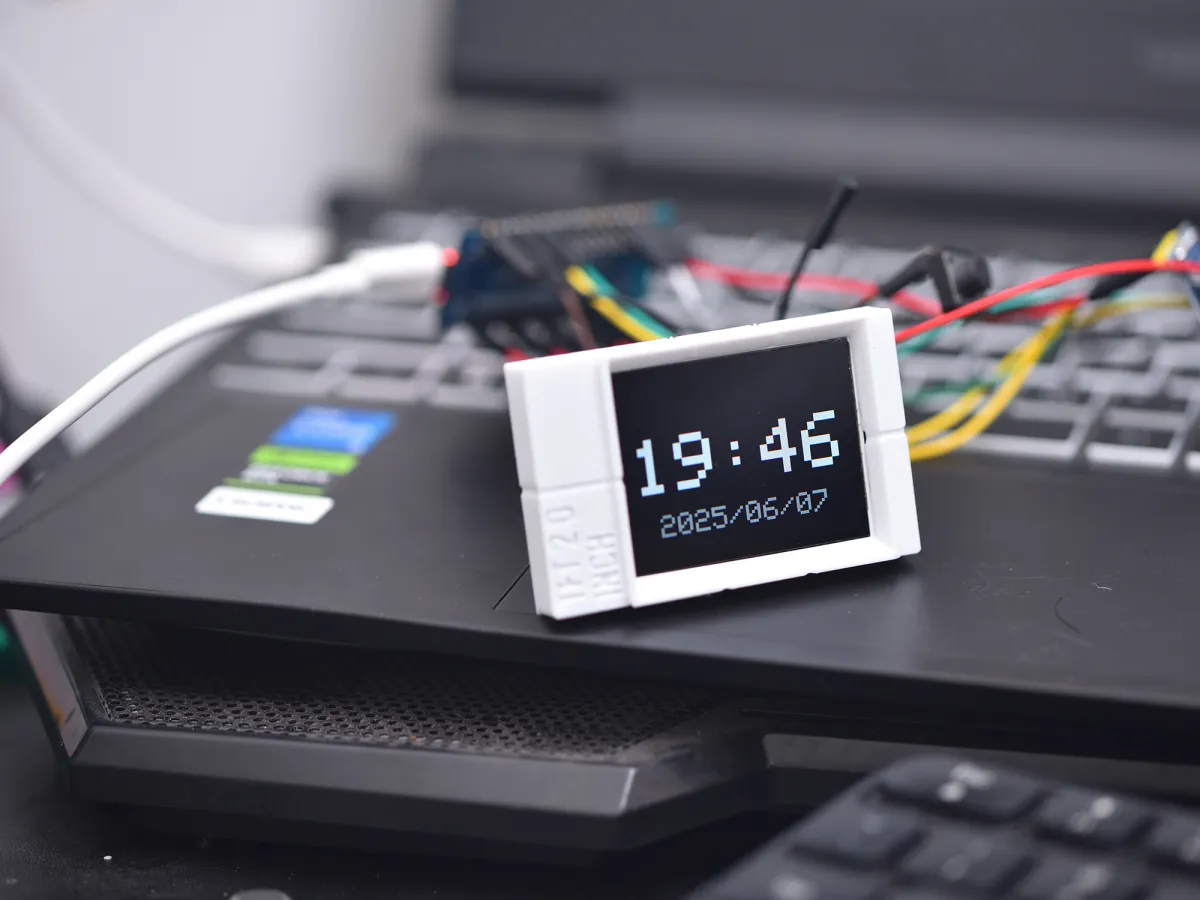

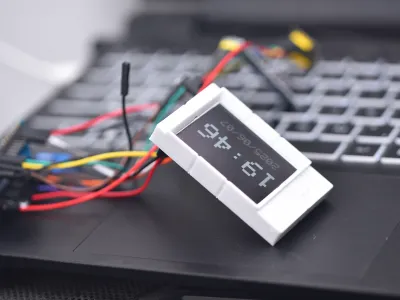

this is the screen of the integrator ~ can easily put into the 2.0 inch TFT screen, the specific information is as follows:

thedoes

  • not need multi-color, easy to print

,

  • easy to put into the design of similar sliding slot, card slot position

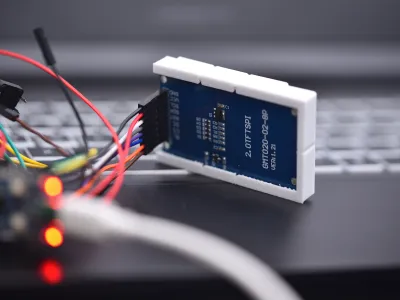

  • suitable for 2.0 inch TFT screen, my screen parameters are as followsthe

    • length and width: about 37.1mm * 62mm
    • SPI screen
    • ST7789V2

    the

    • row of pins in the middle

    of the short side

    • no additional SD card holder

Originality of the Model

The author declares that this work is their personally original model
