Right Angle Drill Guide
Print Profile(0)

  • Earn points by adding print configurations

2

2

11

6

Released 2025-07-15
Details
Files(2)
Makes & Comments (0)

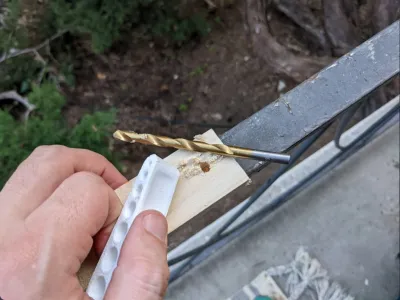

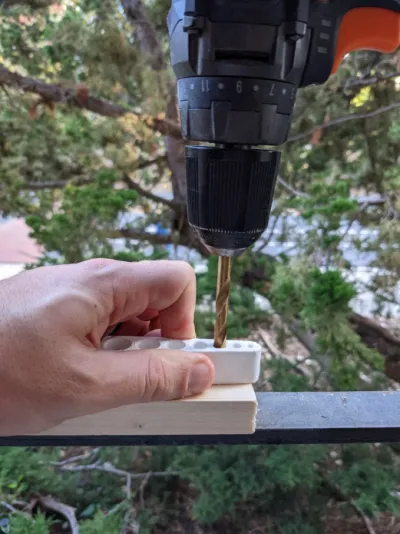

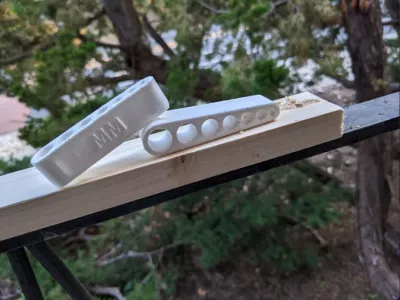

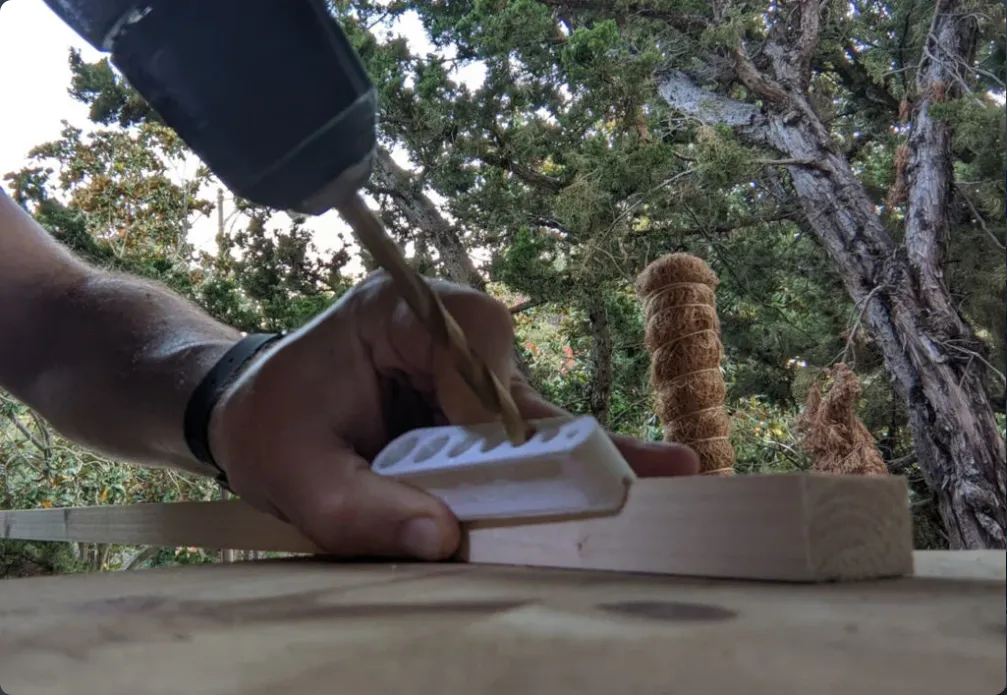

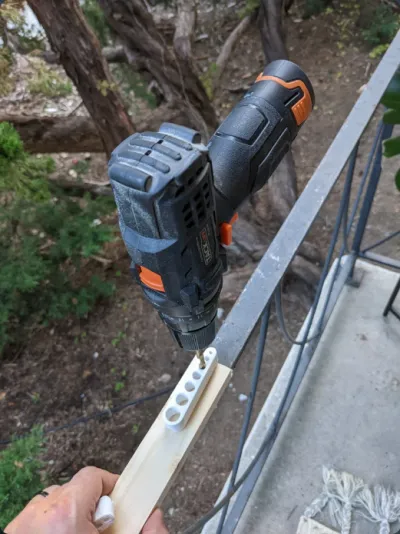

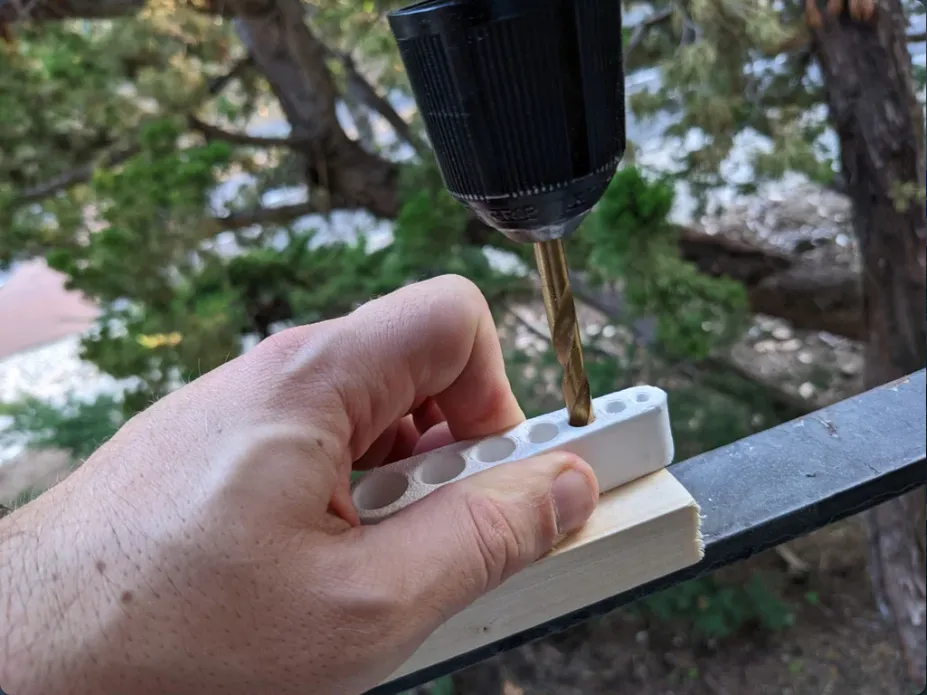

A handy guide so you don't drill your holes all wonky. Comes with a neat little notch at the bottom for drilling into corners or cylinders.

Inch Sizes: 1/2, 7/16, 3/8, 5/16, 1/4, 3/16, 1/8

Metric Sizes: 10, 9, 8, 7, 6, 5, 4

Please hold firmly whilst drilling - I don't want anyone bashing their fingers because they spaced out & the bit jammed.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
EngineerErrant
Reprint source:https://www.thingiverse.com/thing:5575878

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • 10-19_Right_Angle_Drill_Guide_v1_-_Inch.stl

    1.06 MB

    2025-07-01

  • 10-19_Right_Angle_Drill_Guide_v1_-_Metric.stl

    1.12 MB

    2025-07-01
