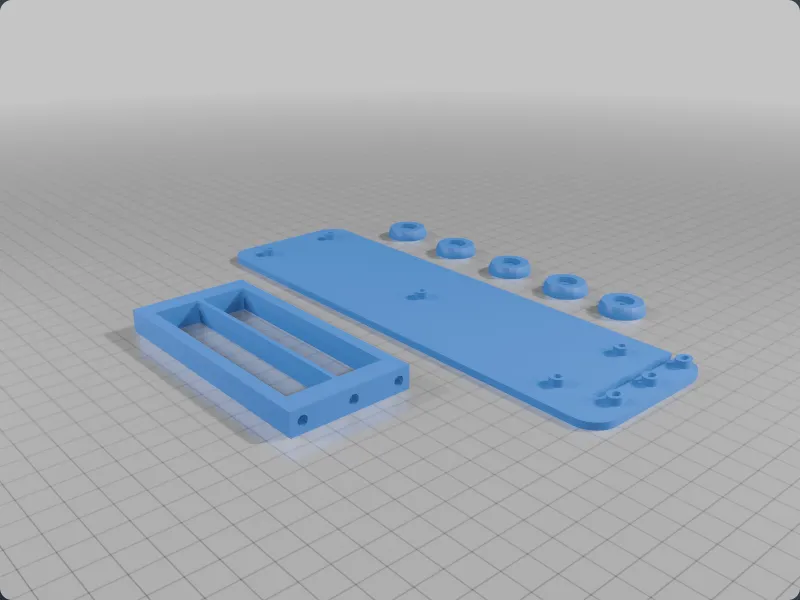

This is a baseplate and GPU support bracket I created for the Lite Version of the open source Asus ROG XG Mobile Dock. You will need 5x M3 15mm bolts with matching nuts, 3x M3 10mm screws and 6x 4.5mm diameter threaded brass heat-set inserts. I am new to 3D design and this is my first, so happy for anyone to improve this design.

Could also be used as a replacement parts for an ADT-LINK UT3G as this board has the same footprint.

Main parts printed in PETG and feet printed in TPU.

EDIT 5th Jan 2025: Added second design that allows access to DP and HDMI ports on GPU for use with an external monitor.

Link to project GitHub: https://github.com/osy/XG_Mobile_Station
