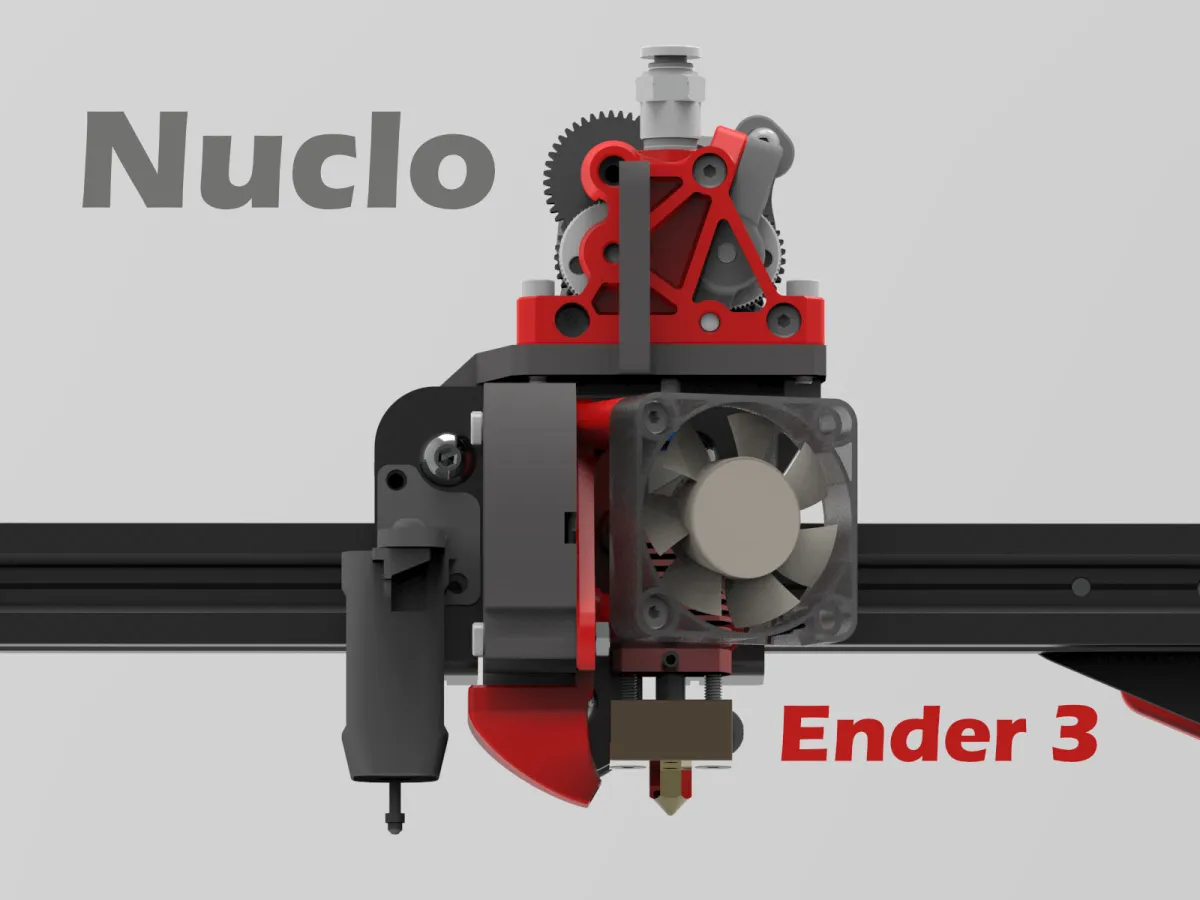

Direct drive extruder toolhead for Ender 3 printers. Has a lightweight open design. Uses a stock 4040 fan + 5015 fan.




BOM

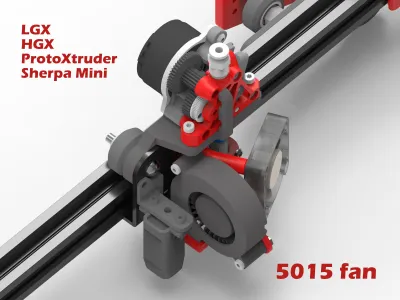

  • Direct drive extruder: Sherpa mini, LGX, HGX, ProtoXtruder
  • Stock ender 3 hotend
  • Stock ender 3 toolhead carriage
  • Stock 4040 fan
  • BL touch / no BL touch
  • 5015 fan
  • 4x M3x20 bolt
  • 2x M3x14 bolt
  • 4x M3 nut

Link to extruder: https://www.printables.com/model/436425-protoxtruder

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(2)

  • model file image
    Nuclo_Extruder_Bracket.stlDesigner

    201.25 KB

    2025-06-26

  • model file image
    Nuclo_Shroud.stlDesigner

    4.03 MB

    2025-06-26
