Laser exhaust Simple flange
Print Profile(1)
  • 0.28mm layer, 2 walls, 15% infill

    2-disc

    PLA

    Designer

2

2

31

5

Released 2025-06-26
Details
Files(1)
Makes & Comments (0)

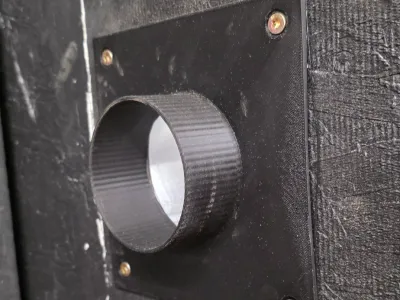

This is a interior to exterior wall pass thru for laser fume extraction. This is sized for a 74mm ID hose to fit over the flange. The backside of this flange fits onto a dryer vent from a box store that costs about $13. I have this passing thru a sheet of plywood that has been hung over a window, The dryer vent is attached to a piece of plywood that is blocked into the window opening, This was do so I would not have a permanent hole in my shop wall.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    Laser exhaust Simple flange.3mfDesigner

    190.04 KB

    2025-06-25
