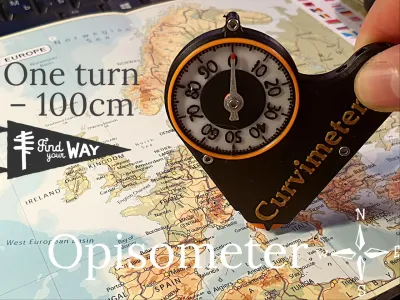

3D Printable Opisometer / Curvimeter / Map Wheel
A mechanical curvimeter (map measuring wheel) design optimized for 3D printing, featuring a classic analog display and ergonomic triangular body.

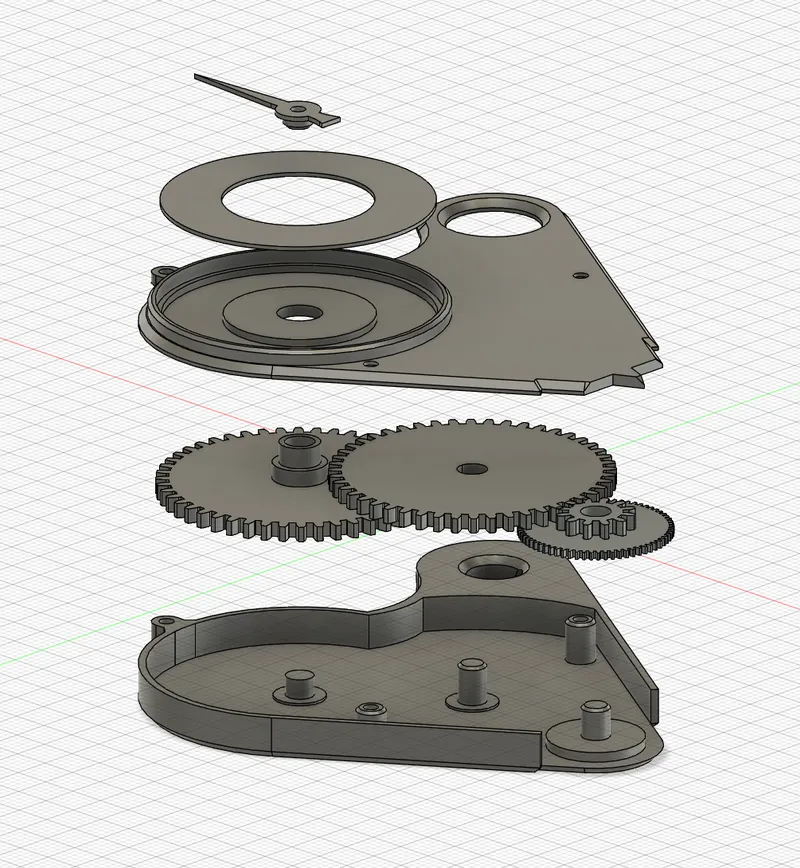

Components
- Circular dial face, 36mm in diameter
- White background with black markings from 0-99cm
- Center-mounted rotating pointer
- Triangular shape for comfortable grip
- Dimensions: approximately 70mm x 70mm x 10mm
- Mounting holes for dial assembly
- Integrated axle system
Measuring Wheel take one turn when drive wheel teke route 100cm
Technical Specifications
- Material: PLA or PETG recommended
- Layer height: 0.2mm or lower for detailed parts
Use glue or screw connections for main body components.
Recomend screw size M2x4mm
Bill of materials
- NameQuantityNotes
- 1Screws M2x4mm3
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
