Power switch for ANET A8 3D printer

Print Profile(0)
2
1
Released 2025-06-25

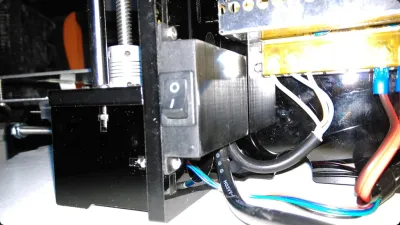

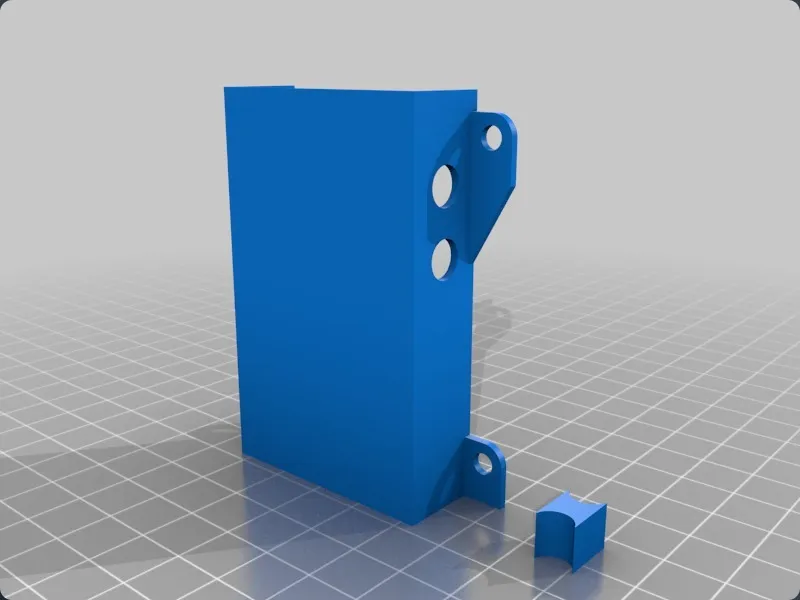

This project is a mounting box for a power switch. It is designed to suit a 12mm x 20mm power switch.

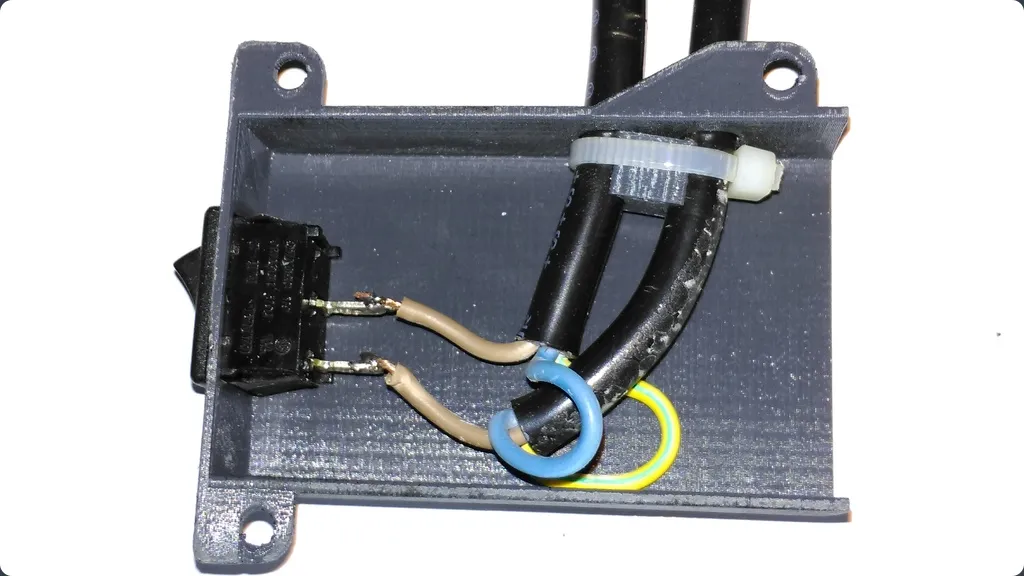

Included is a strain relief for the cables, a zip tie can be used to fix the cables in place.
Two of the screws for the Z-axis motor are re-used. You will need an extra 3mm or 4mm screw (at least 13mm long) and nut.
For a suitable switch, see www.dx.com/p/256020
Originality of the Model
The author declares that this work is their personally shared model
Reprint source:https://www.thingiverse.com/thing:2741815
This model is licensed under the following terms:
No Copyright.
Models(2)
- PowerSwitch.scad
1.66 KB
2025-06-25
- PowerSwitch.stl
291.01 KB
2025-06-25
