Summary

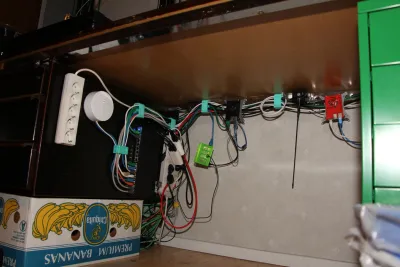

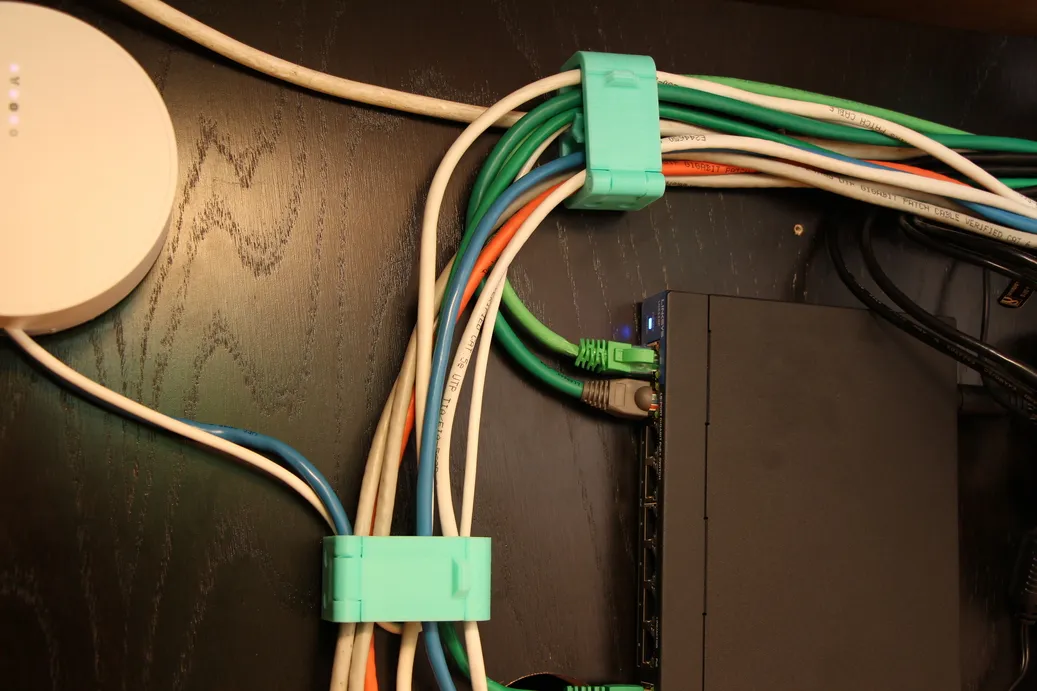

A cable organizer to not having to deal with so much velcro, zip-ties and twist ties. You can screw them to a wall or to the bottom side of a table.

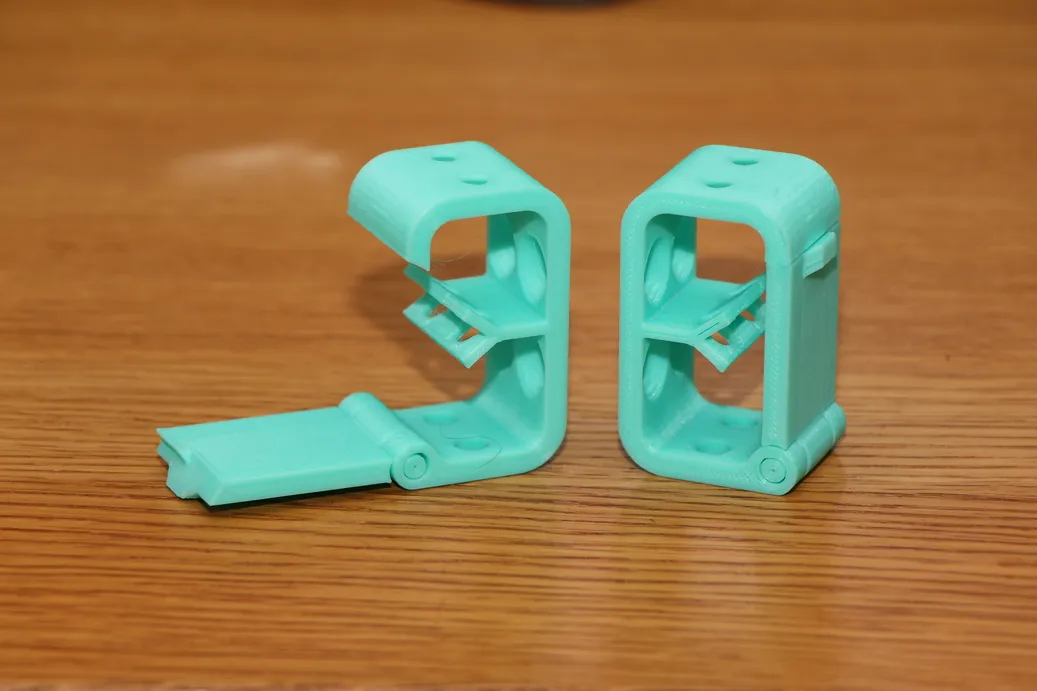

Prints in place without supports. The door snaps shut when closed so the cables won't fall out.

There is a divide in the middle so you can separate the cables a bit.

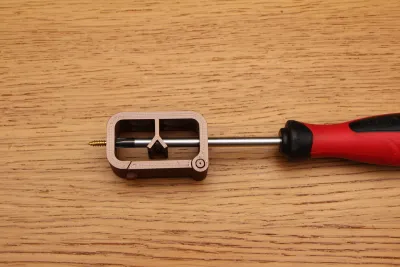

Screws used: 4.2 x 16 mm countersunk wood screws, M5 countersunk and similar should work too.

Added some vertically stacked versions, if anyone is interested. In theory it saves some print time as it reduce moves between parts but it seems to be very small savings. The bottom sides of the upper parts is a but ugly thou.

Copy and edit on OnShape: https://cad.onshape.com/documents/4c36cfbe1121ecf816cf0e0d/w/56a00114e184b2b9110102dd/e/f7f428d3195fbae012ad1199

Print Settings

Rafts:

No

                                            <p class="detail-setting supports"><strong>Supports: </strong>                     <div><p>No</p></div>

Resolution:

0.2mm

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
ornotermes

This model is licensed under the following terms:

Credit must be given to the creator

Remixes must be shared under the same license

Models(6)

  • Hinged_cable_organizer_-_Hole_Template.stl

    473.42 KB

    2025-04-19

  • Hinged_cable_organizer.stl

    728.21 KB

    2025-04-19

  • 2_x_Hinged_cable_organizer.stl

    1.42 MB

    2025-04-19

  • 3_x_Hinged_cable_organizer.stl

    2.13 MB

    2025-04-19

  • 4_x_Hinged_cable_organizer.stl

    2.85 MB

    2025-04-19

  • 5_x_Hinged_cable_organizer.stl

    3.56 MB

    2025-04-19
