Summary

Hello!

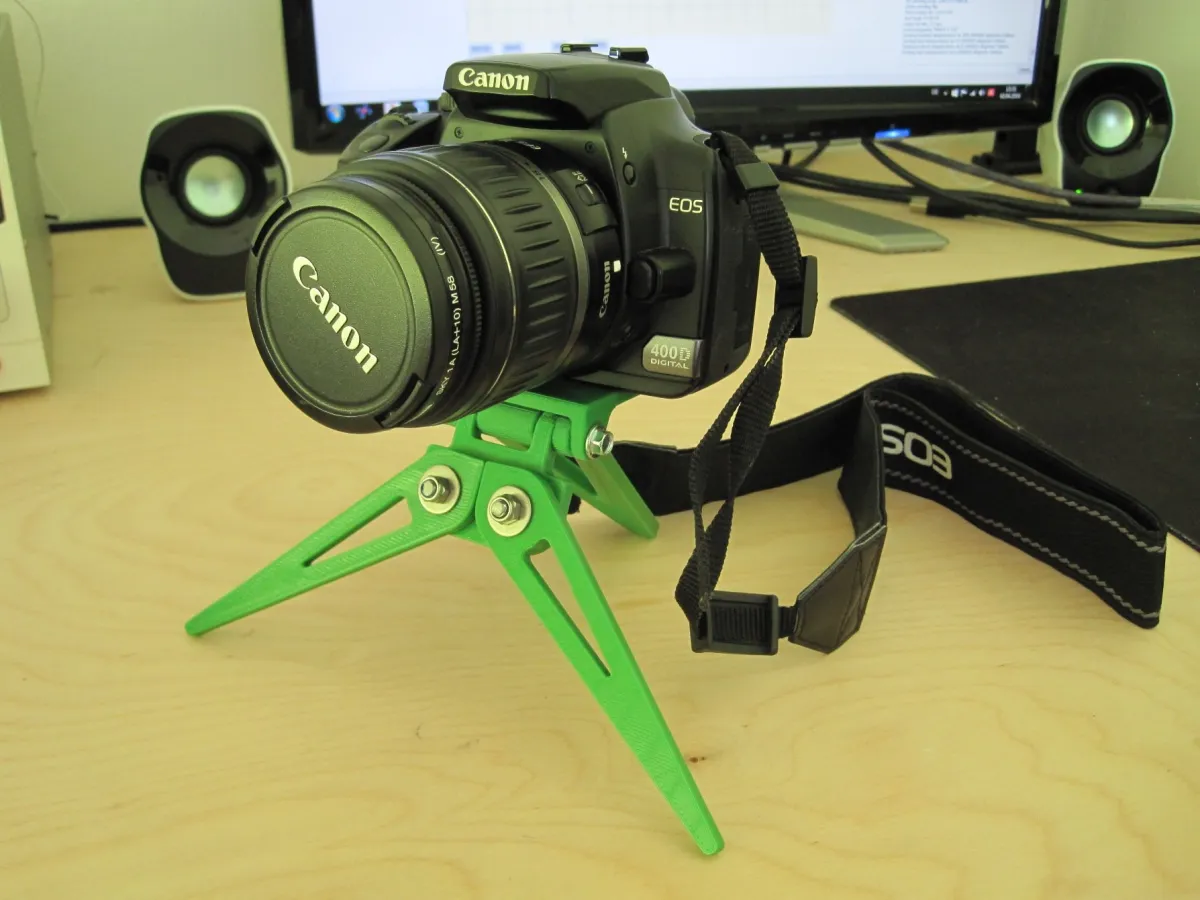

Since I haven't found a compact tripod here on Thingiverse, I've decided to design one.
It's very compact but also rigid, it can support a DSLR camera with ease.

Check out the mobile phone mount I made for this tripod: http://www.thingiverse.com/thing:2221802

No matter if you are at home or outdoors, this tripod is very handy and folds into a very small package. Plus, there are only four files for you to print and very few other components you'll need.

Have fun!!

Print Settings

• Printer brand:

  RepRap

• Printer:

  Pro Mendel

• Rafts:

  No

• Supports:

  No

• Resolution:

  0.5 mm Nozzle - 0.3 mm Layer height

• Infill:

  as you like

Post-Printing

Nuts and bolts

2x self-locking nuts M5
3x washers M5
1x wingnut M5
2x bolts M5 - 16 mm long
1x bolt M5 - 60 mm long
1x 1/4-20 UNC bolt for the camera (or a bolt off another tripod)

How I Designed This

For me, it was important that the parts come ready-to-use out of the printer - so there is a little chamfer everywhere to make them have a pleasant feel in your hands.
