💡 Printing Inspiration

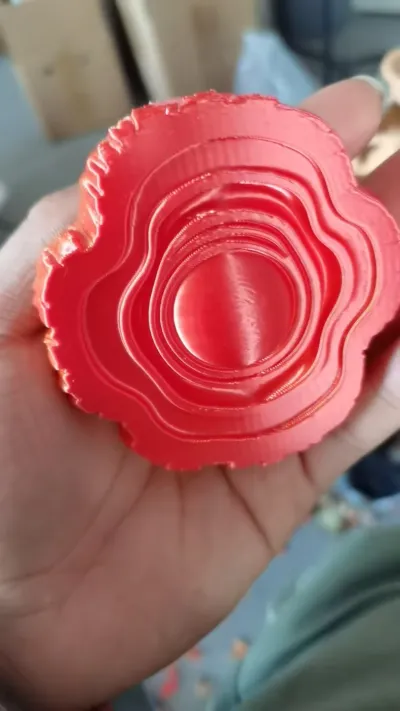

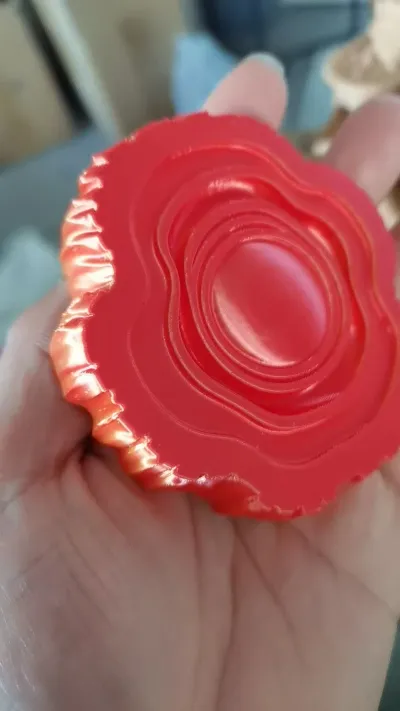

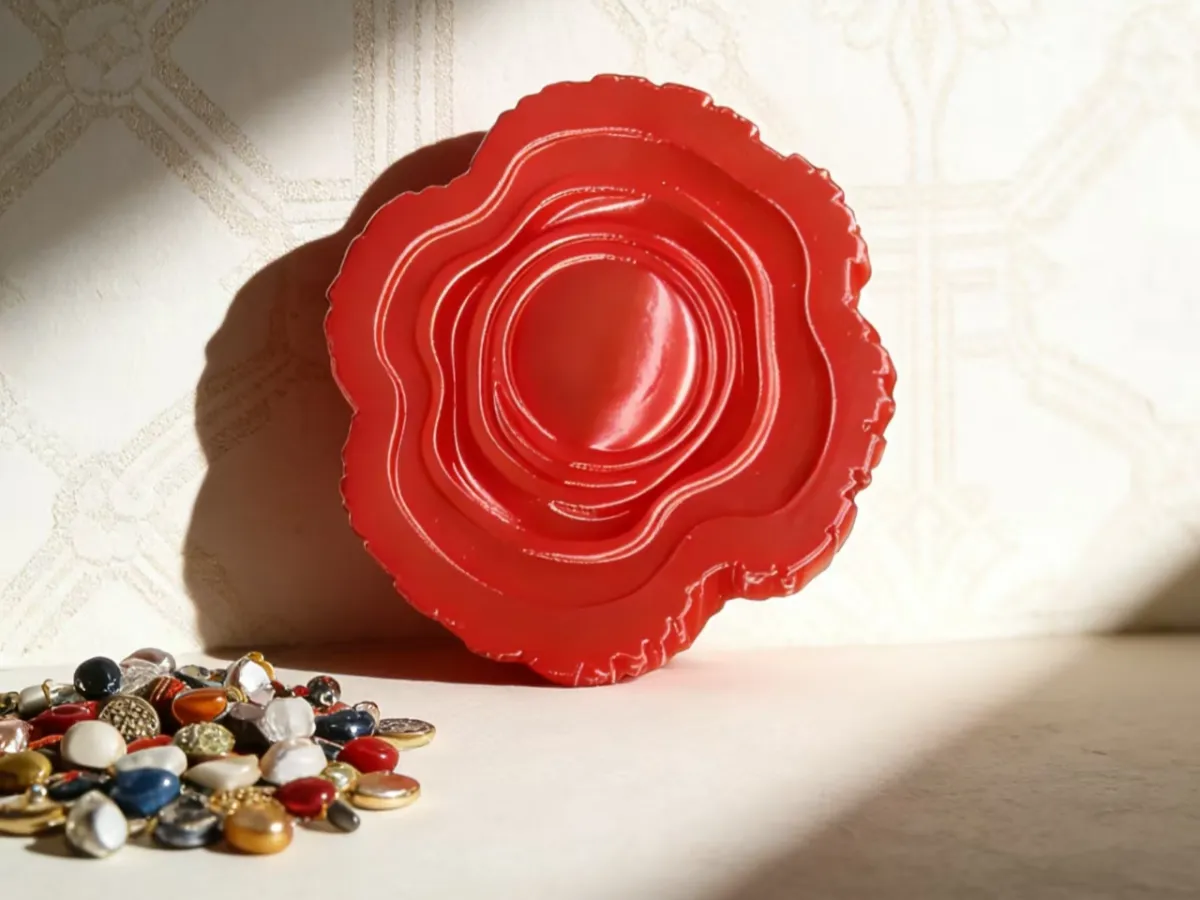

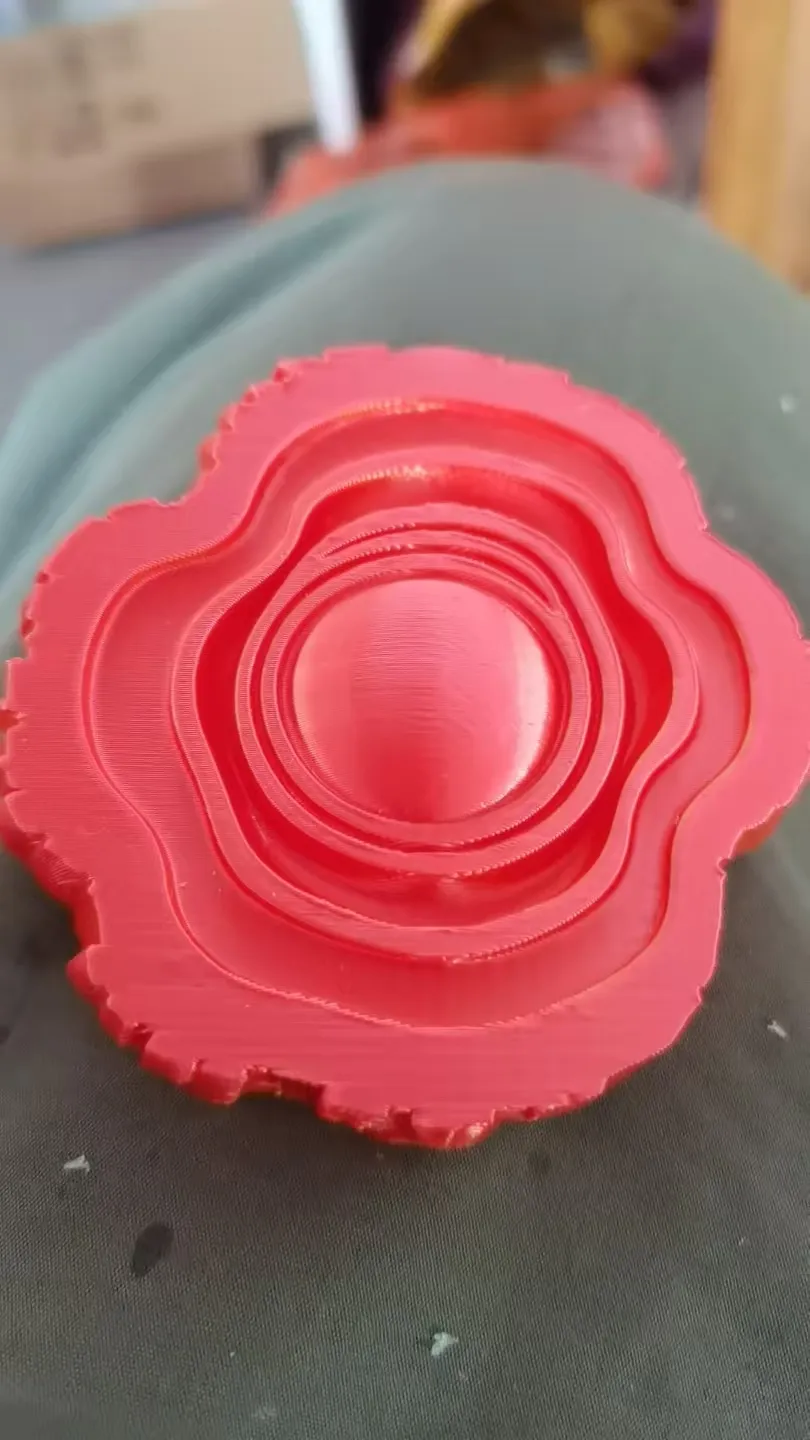

The design of this vibrant red 3D decorative piece draws inspiration from the harmonious fusion of traditional Chinese “Ruyi Cloud” motifs and contemporary fluid art:

- The layered, concentric wave patterns evoke both rippling water and billowing auspicious clouds, symbolizing “perfect fulfillment and continuous upward progress.”
- The petal-like contours along the edges are inspired by the iconic shape of traditional Ruyi heads, seamlessly blending modern 3D printing techniques with timeless classical aesthetics.
- The bold red hue, paired with a silky texture, exudes festive charm while adding rich visual depth—making it an ideal wall decoration that radiates good fortune and energetic vitality.



🔧 Assembly Instructions (One-Piece Design)

This model is printed in a single, integrated piece, requiring no assembly or joining—simply remove it from the print bed and it’s ready to use:

1. Post‑Processing: Use diagonal pliers to carefully trim any residual support material from the edges (if present), then gently sand the surface with fine-grit sandpaper to smooth out the contours.
2. Cleaning: Brush away loose print debris with a soft-bristled brush, then lightly wipe the surface with an alcohol‑soaked cotton pad to restore its luster.
3. Wall‑Mounting Preparation: If the back side is uneven, lightly sand it down with fine-grit sandpaper, then evenly apply double‑sided tape or adhesive without nails to ensure a secure, long‑lasting bond.
4. Optional Reinforcement: To prevent deformation over time when hung for extended periods, consider adhering a thin sheet of wood or metal to the back to enhance load-bearing capacity.



📐 Printing Specifications

1. Filament & Temperature:
- We recommend using red silk‑like PLA or PLA+, with a nozzle temperature of 200–220°C, a heated bed set at 60°C, and cooling fans enabled.
2. Supports & Rafting:
- No supports are required; the flat, lightweight structure is self‑supporting. We suggest enabling 2–3 layers of rafting around the perimeter to minimize warping and edge curling.
3. Print Orientation:
- Print the model face‑up and laid flat to preserve the integrity of the surface textures—and to ensure a smooth, even back side that’s easy to adhere to walls.
4. Detail & Speed:
- Use a layer height of 0.15–0.2mm, and reduce the print speed to 30mm/s in detailed areas to ensure crisp, well‑defined concentric ring patterns.
5. Post‑Processing Tips:
- The edges are relatively thin; apply gentle pressure when sanding to avoid cracking or breakage. Before mounting on the wall, be sure to clean the back thoroughly to guarantee optimal adhesion.
