Magnetic Mesh Screen for Rain Protection and Ventilation
Print Profile(1)
- 0.2 mm layer height, 2‑wall walls, 15% infill density
2-disc
PETG
Designer
9
2
Released 2026-02-10

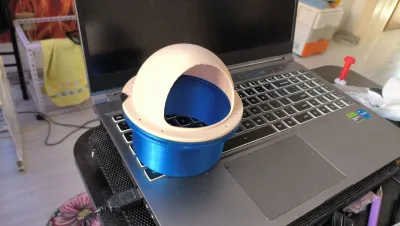

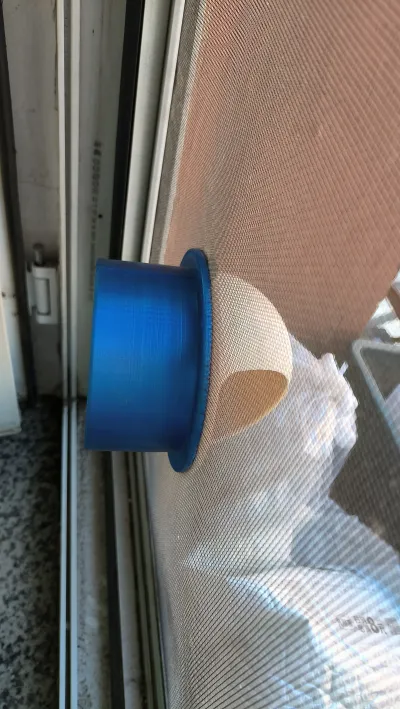

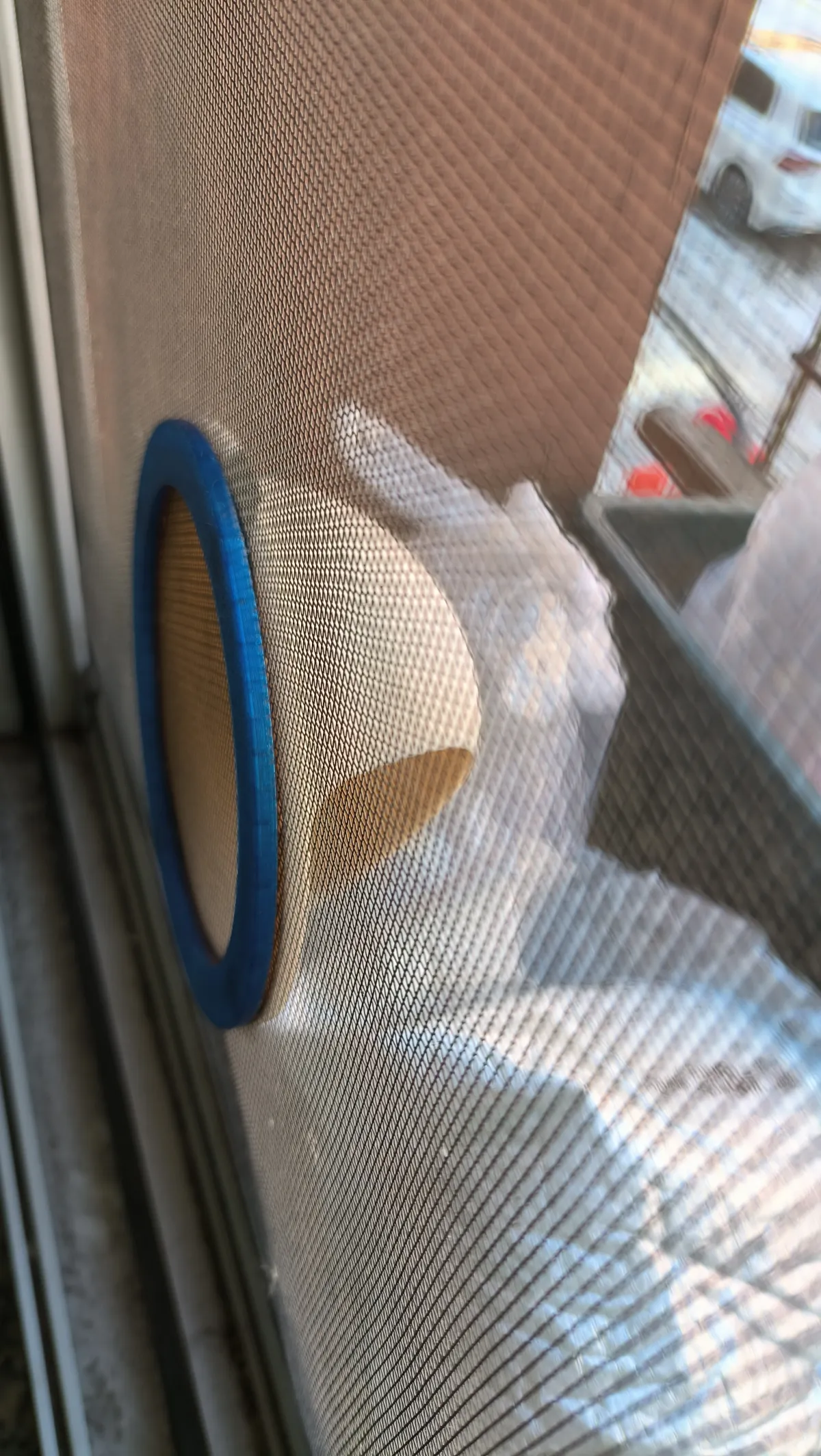

The mosquito screen features a rain‑proof, ventilation‑compatible interface equipped with a magnet measuring 6 mm in diameter and 3 mm in thickness. It also includes pre‑drilled screw holes for secure screw‑based installation. The design is divided into three components: an external rain‑proof housing, an internal magnetic attachment plate, and a 10 cm pipe connector.
Bill of materials
- NameQuantityNotes
- 1直径6厚度3磁铁18
- 2M3螺丝螺母4
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Remixes must be shared under the same license
Models(1)
- 防雨排风.3mfDesigner
419.98 KB
2026-02-07
