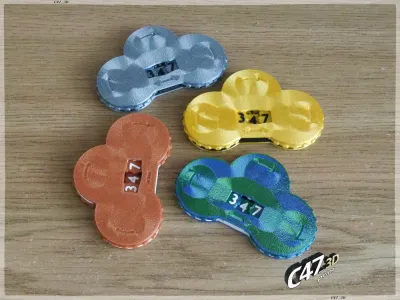

3-digits flat counter


The counter moves in steps, it ‘locks in’ on a digit and it will not move by itself



Weak wheels are... weaker. Doesn't need so much force to move but are much easier to break so don't push it too hard
Using PET-g may make them stronger



The middle digit is harder to move as you don't use both a forefinger and a thumb but only a forefinger. You can try to use both forefingers or a nail if needed



---

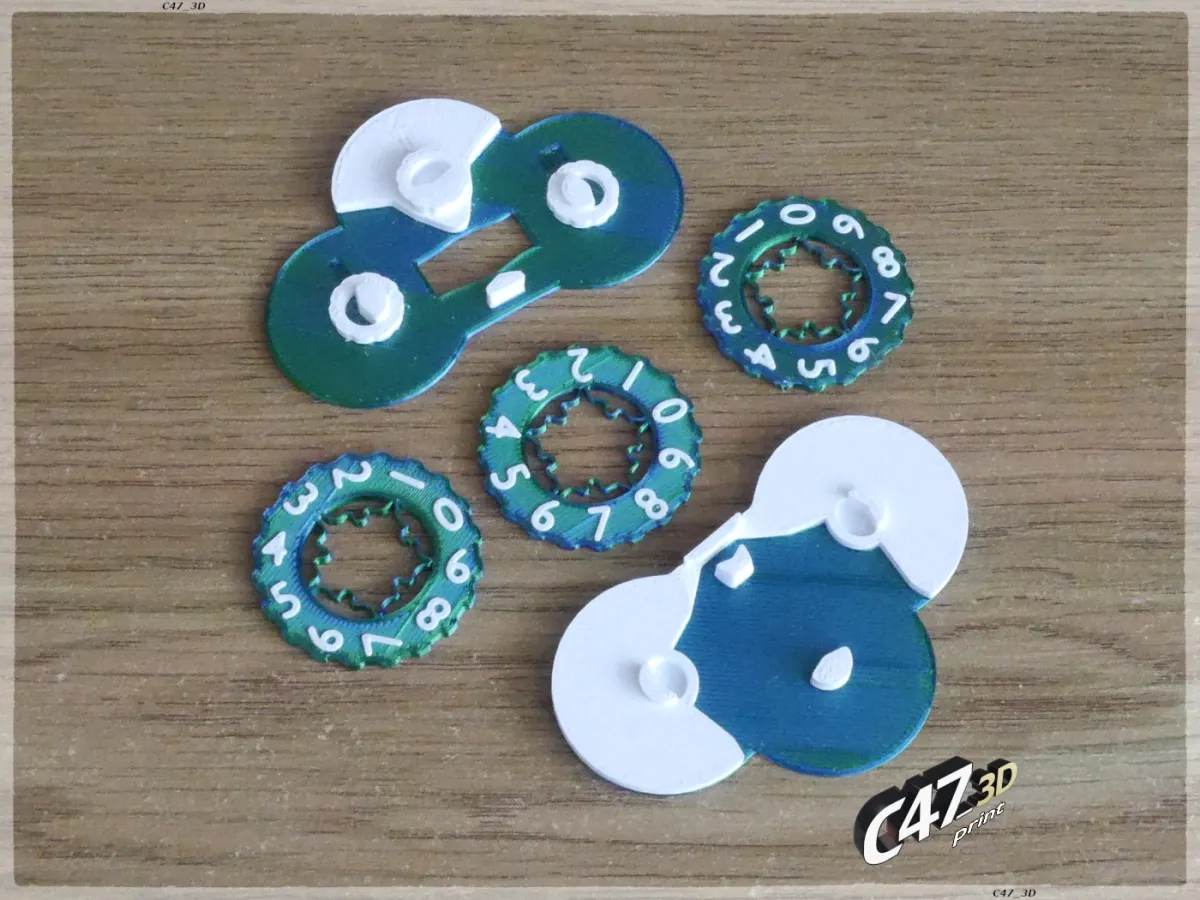

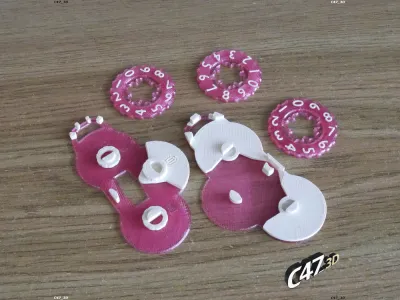

Assemble it upside-down. You have markings on top part and on all wheels - all wheels are different and must go in the right place



---



If you will want to sell prints of this models you can buy a commercial license
Check a Linktree in my bio



---



Printing tips

Made for 0.4mm nozzle
Can be printed with 0.2mm layer height, printing with 0.1mm shouldn't make any difference
Printed with 10% gyroid infill and 2 walls with PLA


Something like PET-g recommended for 'weak' versions - will be more 'springy' and harder to break



Change colour on 1,8mm high - you will have digits (and some parts of the top and bottom) in different color

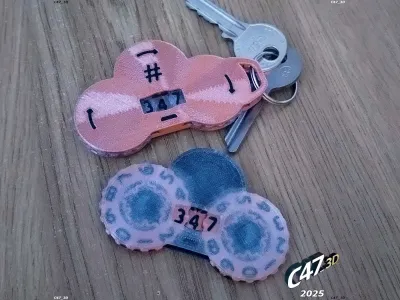

To make customizations (# or numbers from -3 to +3) add the model to top or bottom part as negative volume or as normal model with different color (for multicolro printers)



The force needed to move the wheels depends on filament, printer calibration and slicer settings
If it's too hard to move wheels you can use a weak spring wheels versions (it's 0.4mm thick instead of 0.8mm) or a horizontal expansion (xy compensation) - maybe something like -0.02 or so will help
Resizing the models may help too. You can try like 100.5% for easier or 99.5% for harder rotating



I think you can resize the models to 50% to use less filament but it should be still usefull (print normal versions then, not 'weak')



---

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
