Double spring loaded bearings
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

7

1

Released 2026-02-05
Details
Files(3)
Makes & Comments (0)

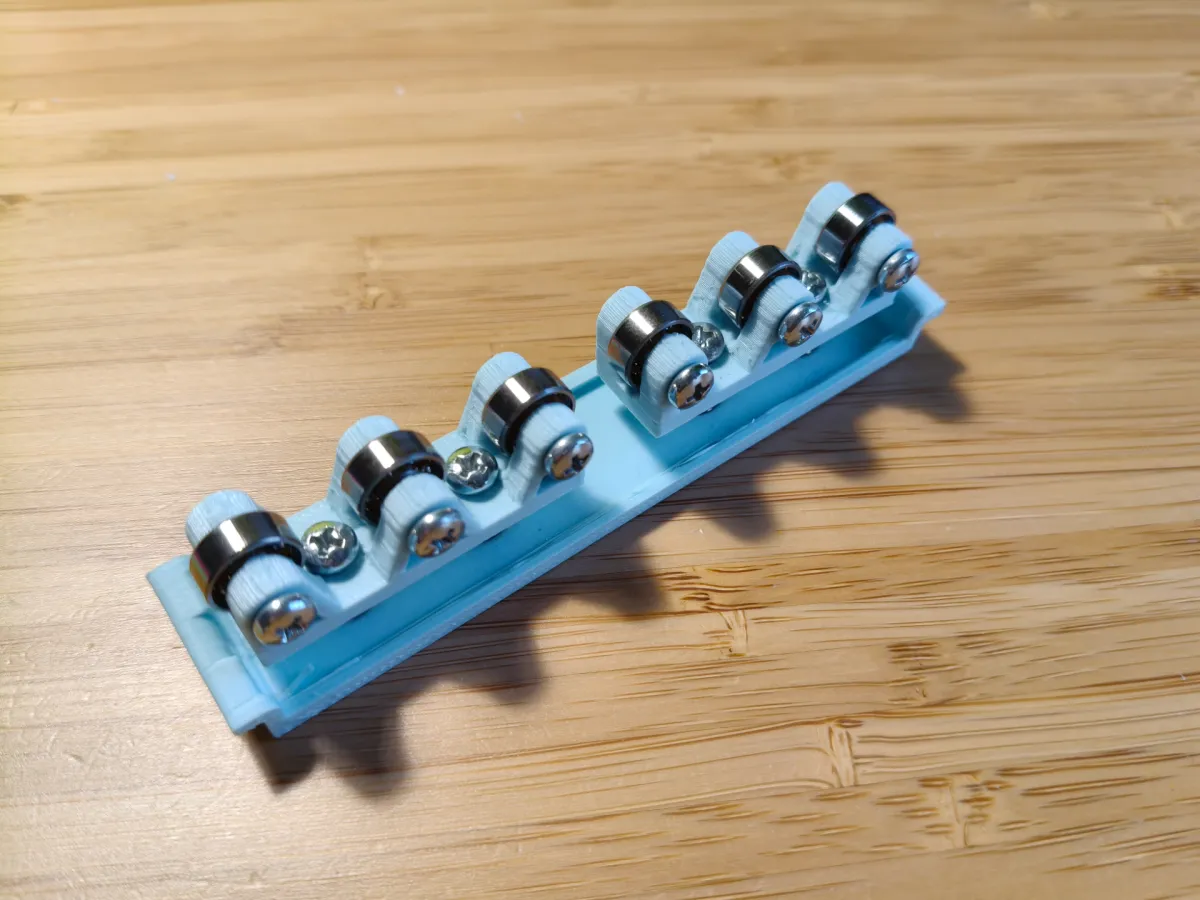

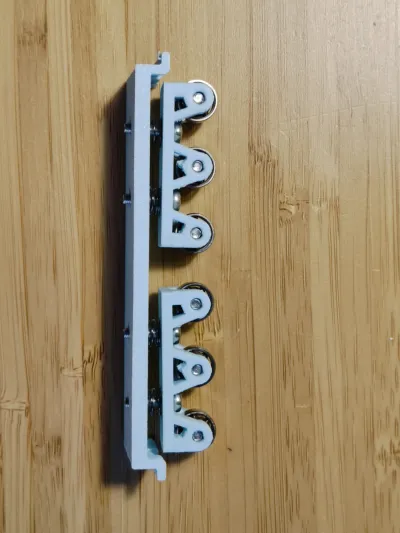

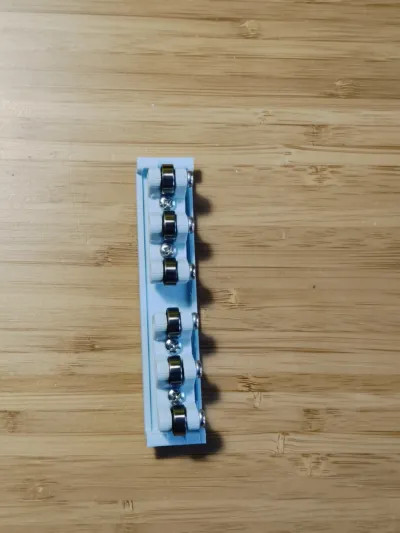

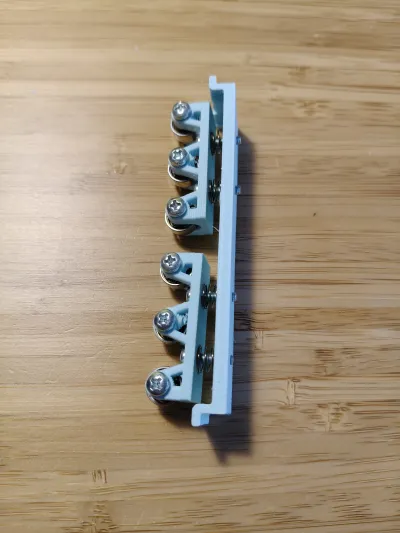

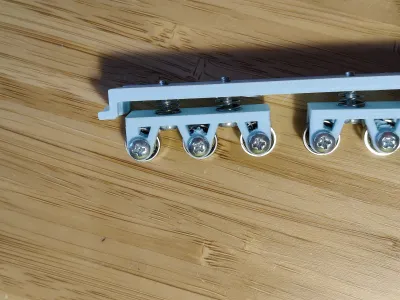

Explore the world of compliant mechanisms with this fully functional double spring-loaded bearing! This model uses springs to provide tension.If you tighten the bolt, it will be lower and the bounce will be more powerful.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3 12mm bolts
    10
  • 2
    compress springs
    4
  • 3
    ball bearings
    6
    3x10x4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    double spring loaded bearings.3mfDesigner

    89.52 KB

    2026-02-03

  • model file image
    base double spring loaded bearings.stlDesigner

    46.08 KB

    2026-02-03

  • model file image
    top double spring loaded bearings.stlDesigner

    124.30 KB

    2026-02-03
