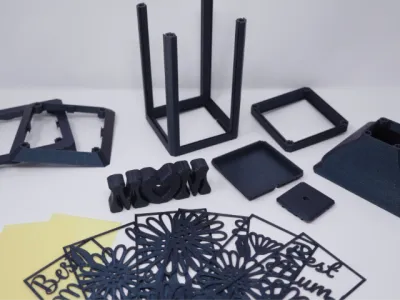

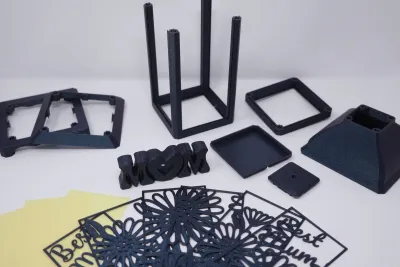

Welcome to another set of models in my Modular Lantern series all parts carefully designed to be cross compatible allowing you to customise the style of the lantern body while the side panels are carefully designed in two parts allowing you to easily experiment with different colour panels, re-using them with different stencil inserts.

This set introduces a new 2:1 aspect ratio core (Taller than the original aspect ratio 2:3) and a Mom decorator that can be placed on top. Along with that there are 6 new inserts, you can find more inserts from this set on my Patreon which cover the original aspect ratio lantern and the straight top with inserts.

Be sure to check out my Patreon and Profile which includes many inserts and parts including those made by members of the community. There are over 500 inserts now available for use throughout the year and hundreds of lantern parts.

The Core and Base

Plate 1 contains the new 2:1 core and Plate 2 a flat base. If using a wired LED thread it through the core base first and then add the base, be sure to checkout the  additional bases that can hold your LED securely.

Push into place with a click.

If you have a wire push it into the wire exit which is designed to clamp the wire.

Inserts

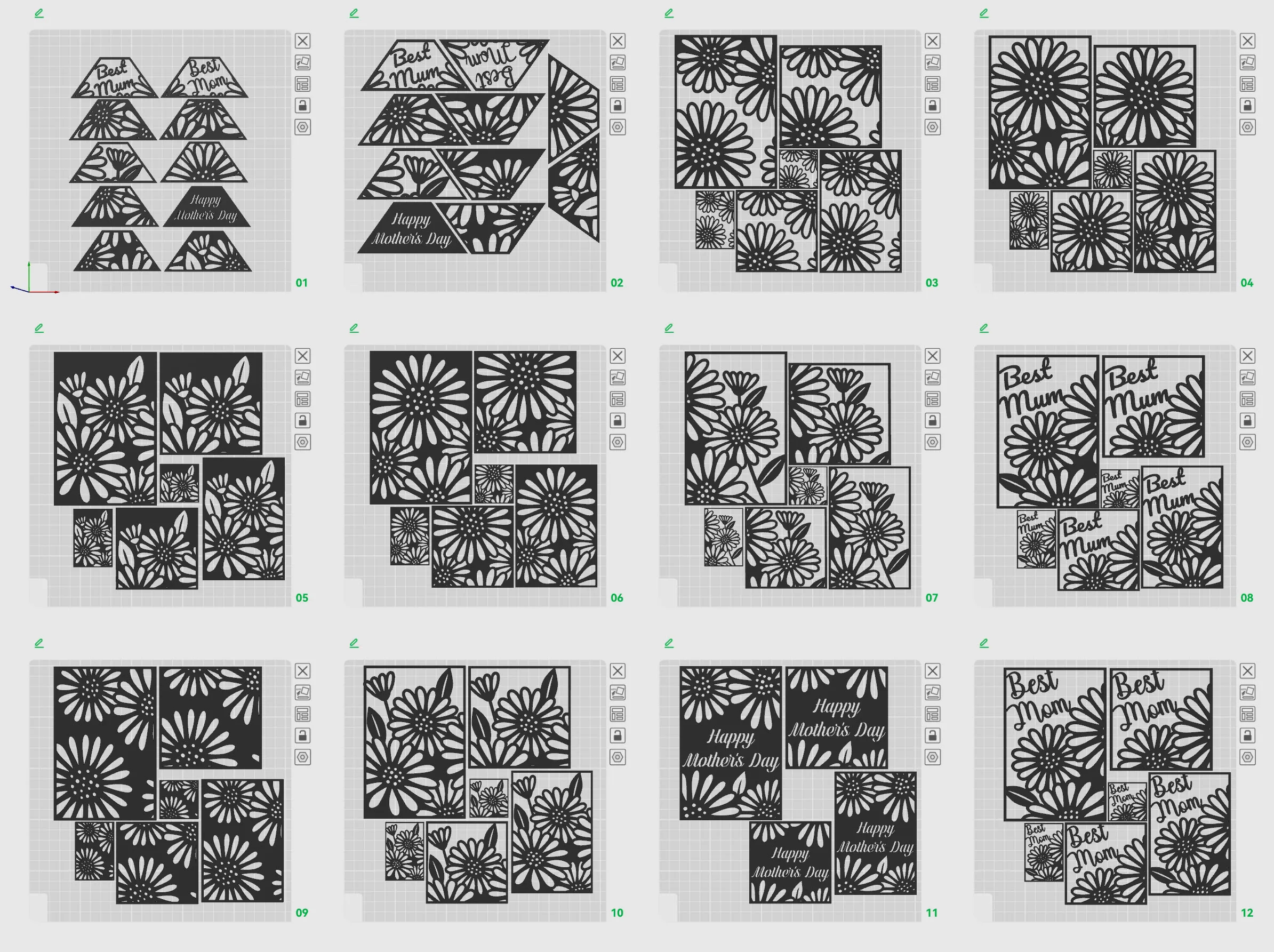

Now print plate 8 which contains some solid colour panels. You can use any PLA or PETG they are almost all translucent at this thickness.


This is a core feature of my inserts the colour is separate to the stencil design allowing you to experiment and reuse coloured panels.

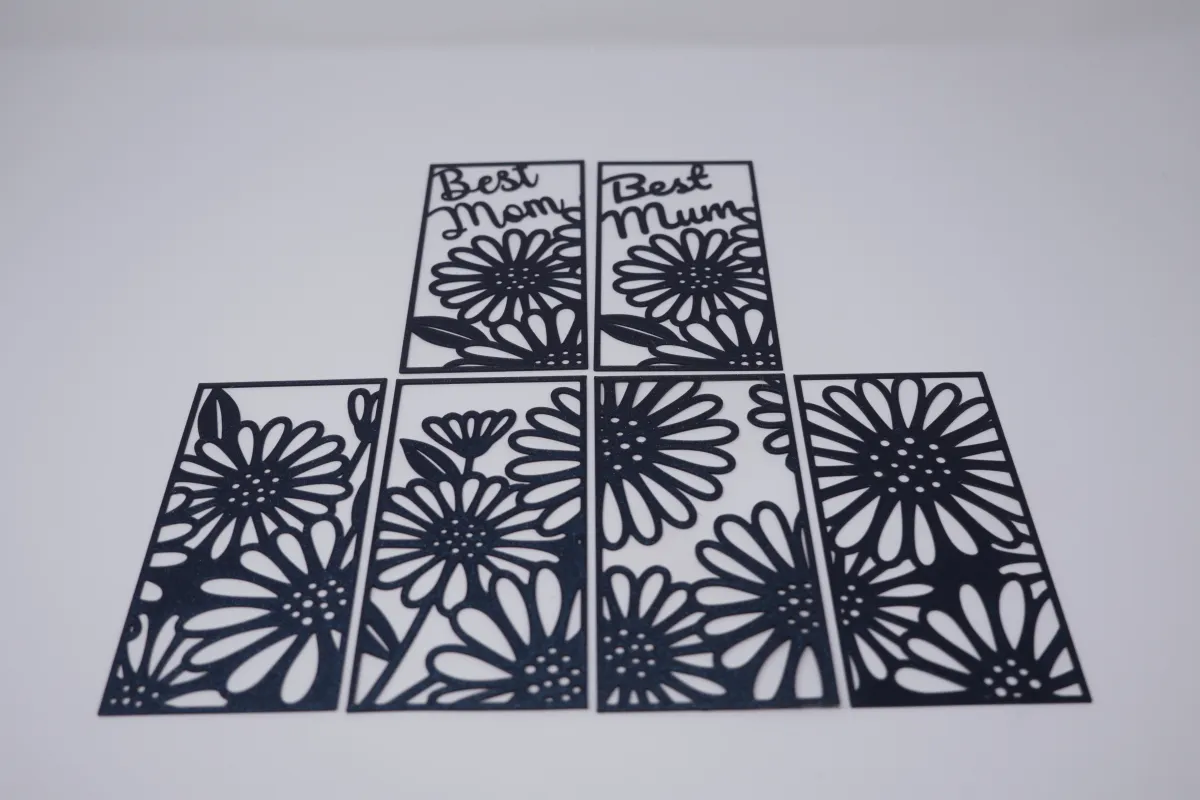

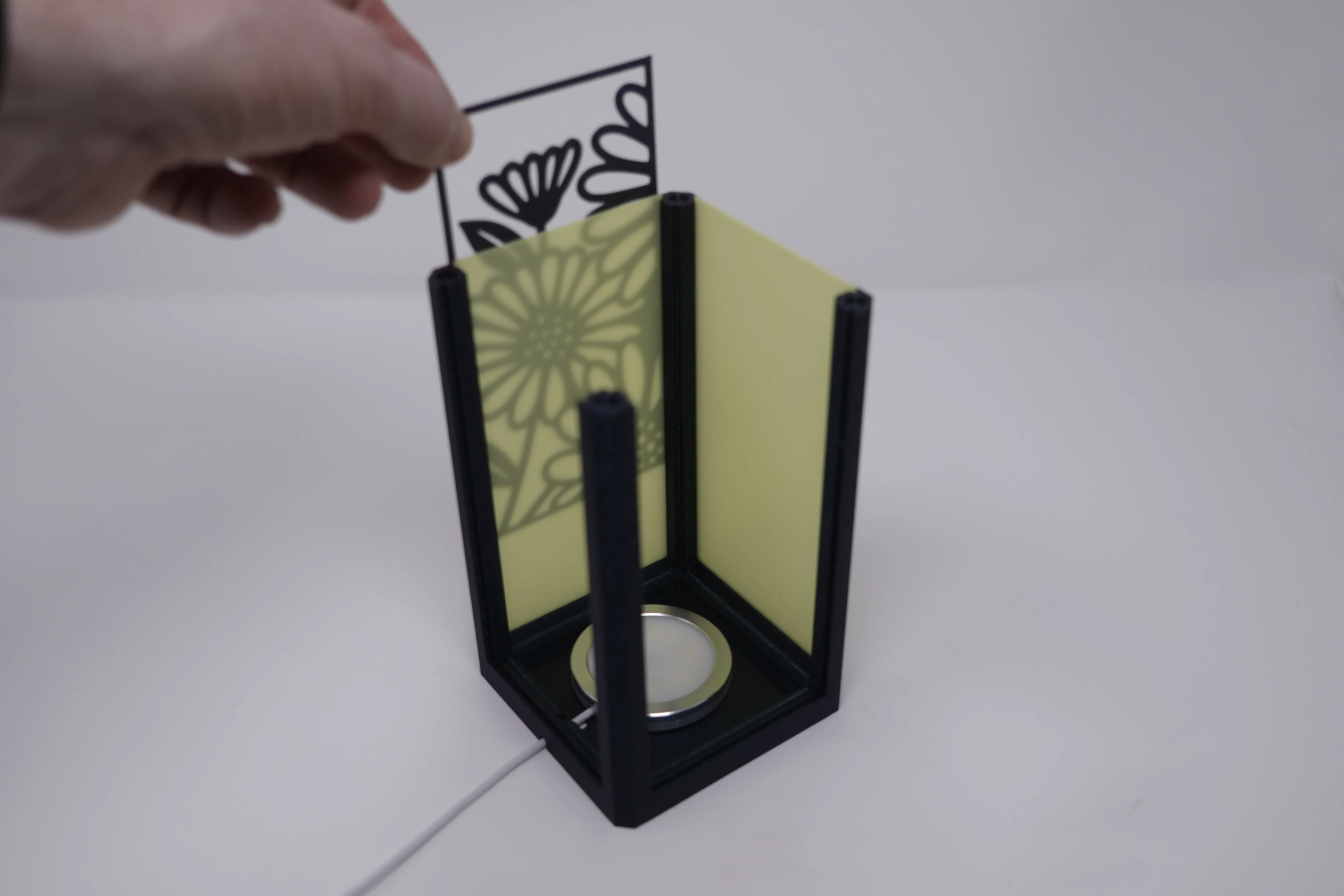

Pick your inserts and insert them in front or, if you want a less focused look behind the solid panels.

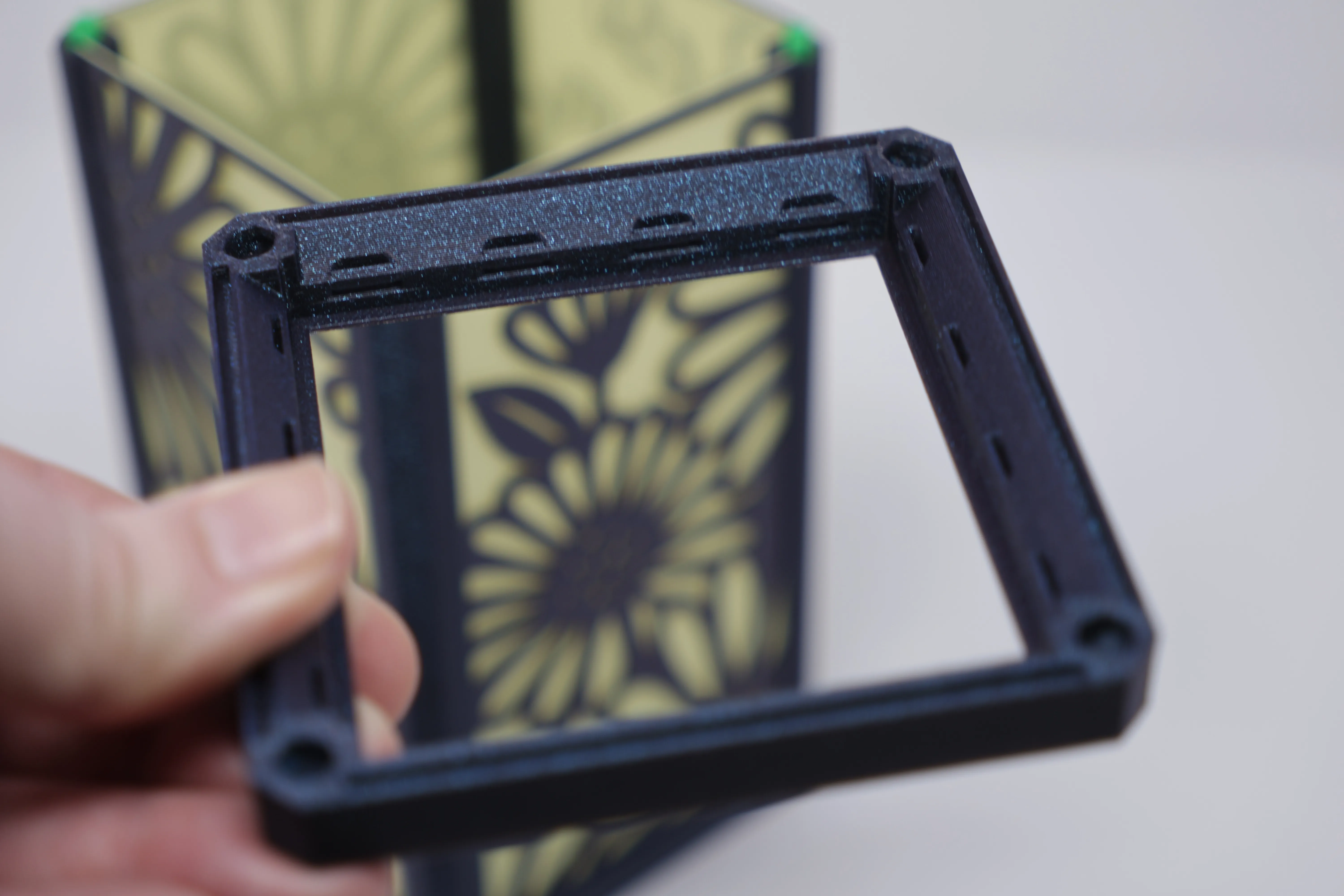

Spacer

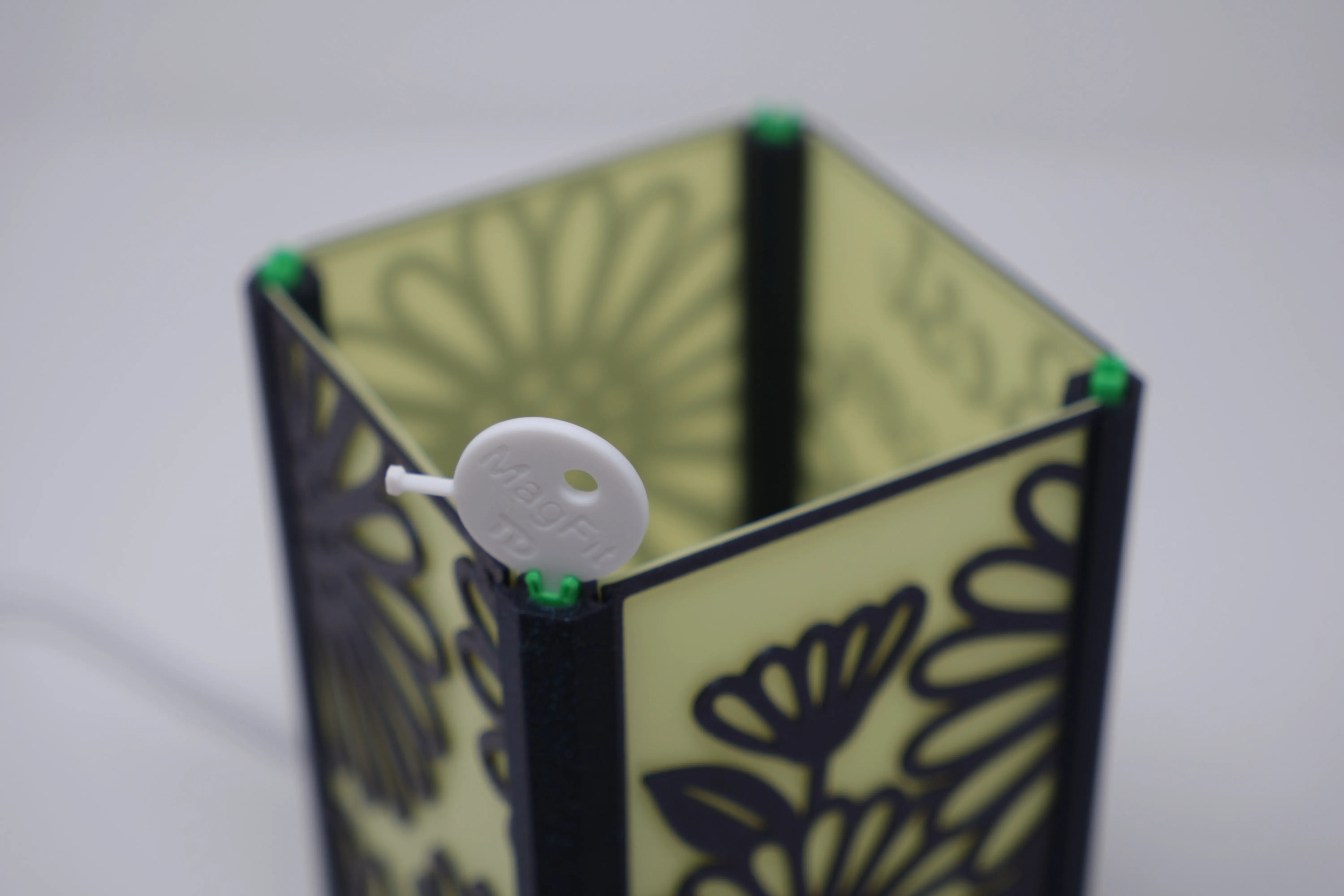

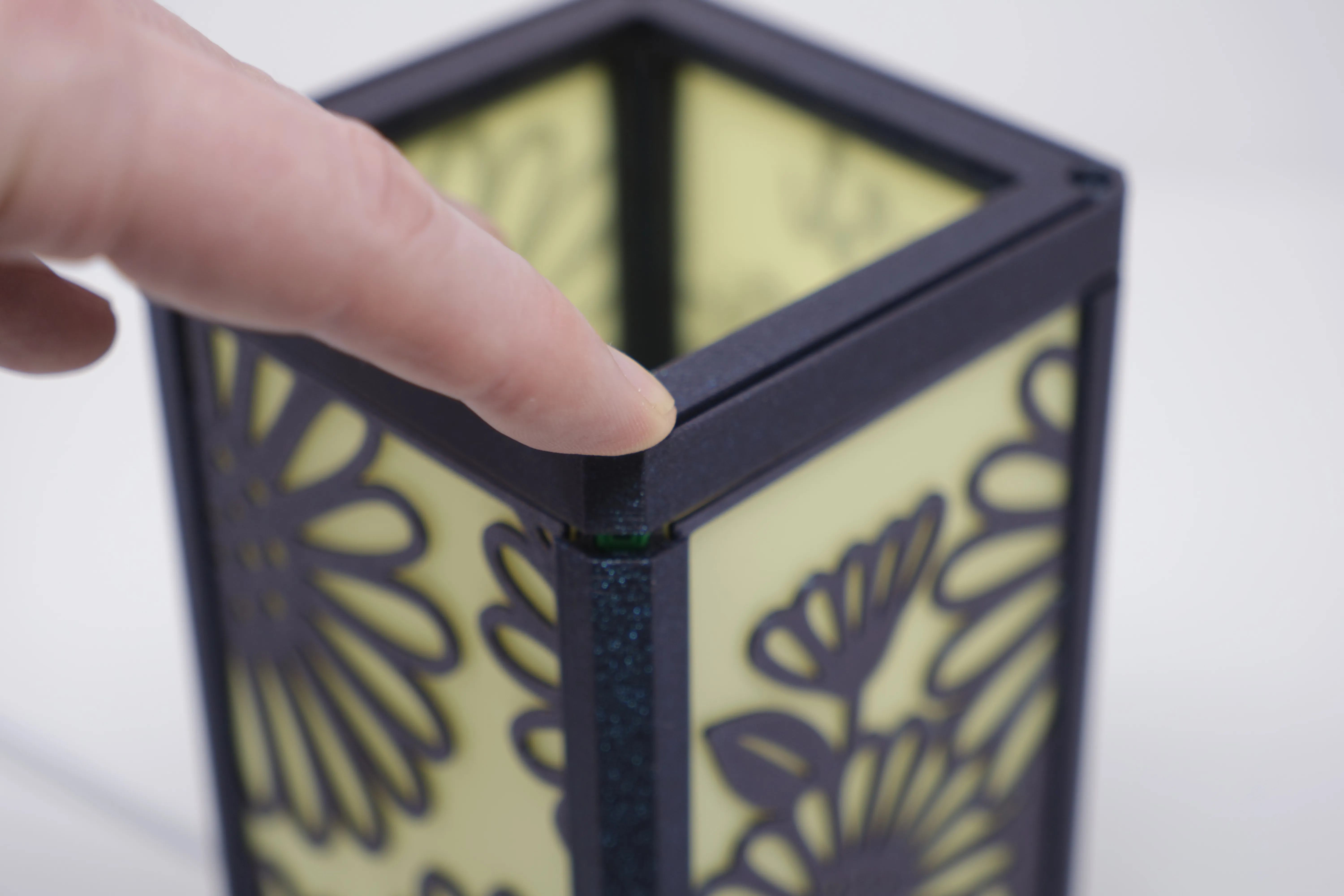

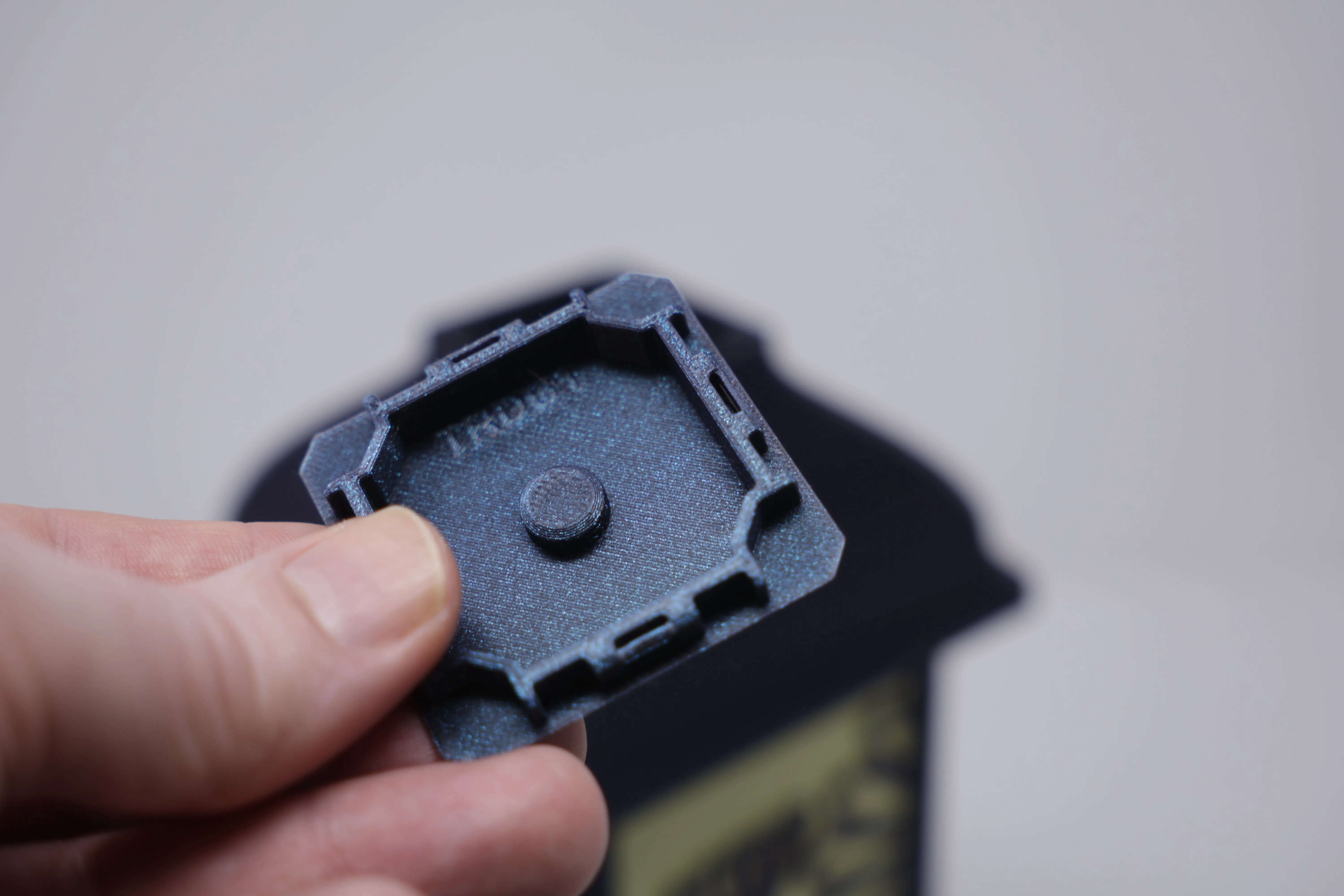

Now you have options on how you wish to attach parts to the lantern core. Personally I use my MagFit clips which can be downloaded here. They are designed to fit where the magnets go and can be easily replaced if they wear after replacing panels many times. Just push one into each post using the tool provided.

Using Magnets instead of the clip

You can use 6mmx4mm magnets and just glue them into the hole, the extra depth gives additional strength.

Alternatively print a couple of 2mm spacers and use 6mmx2mm magnets, but remember magnets are not great at stopping shearing movement:

To stop shearing movement in the direction of the arrows above you can use a 1mm and 3mm spacer. This is what I advise for my Modular Lantern posts, by forcing a magnet to protrude by 1mm and insetting the other by an extra mm we solve the problem:

Glue

You can also use the provided 8mm high cylinders in the print profile and glue them into the top of the lantern. But really I suggest using MagFit they have so many benefits.

Bell Top

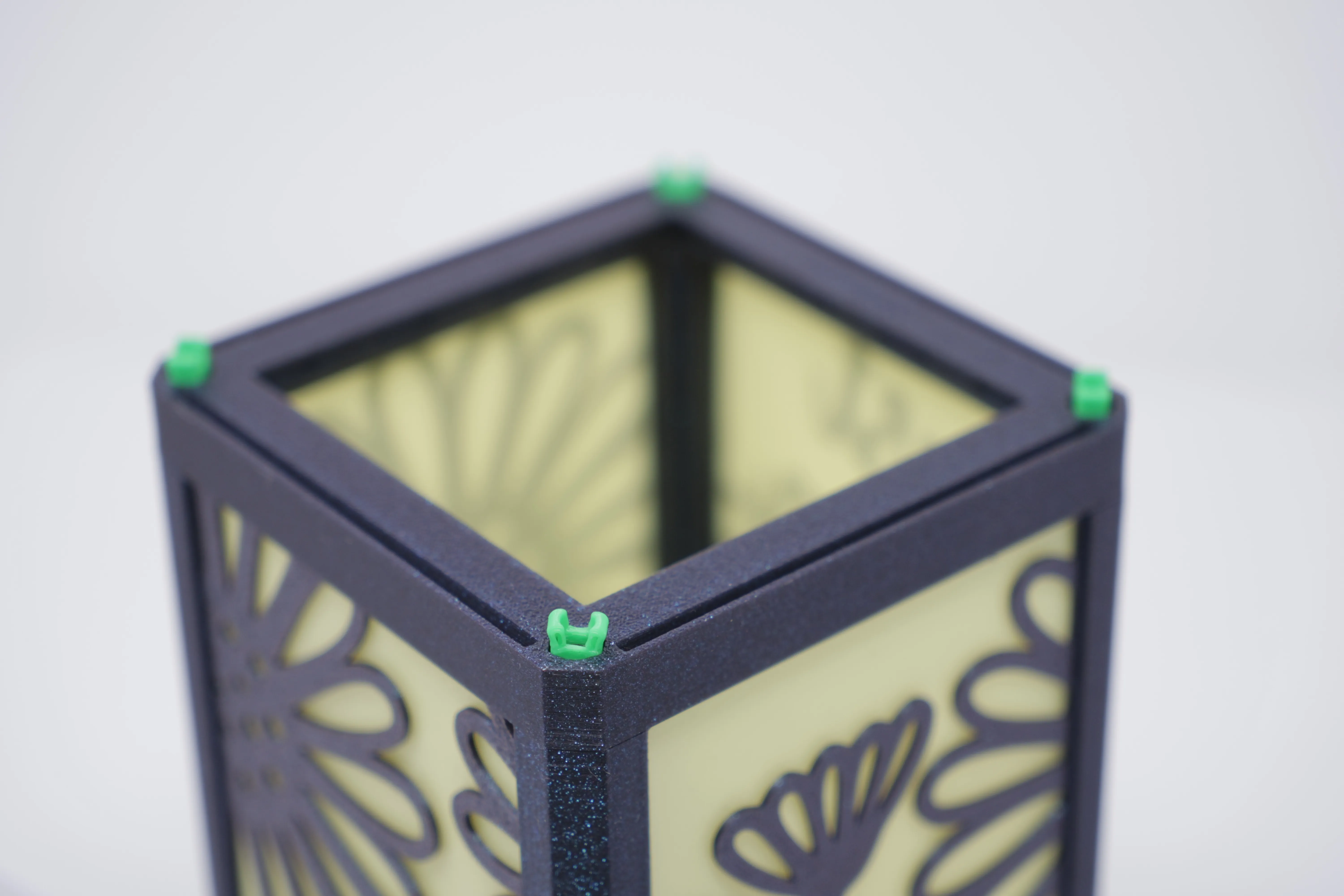

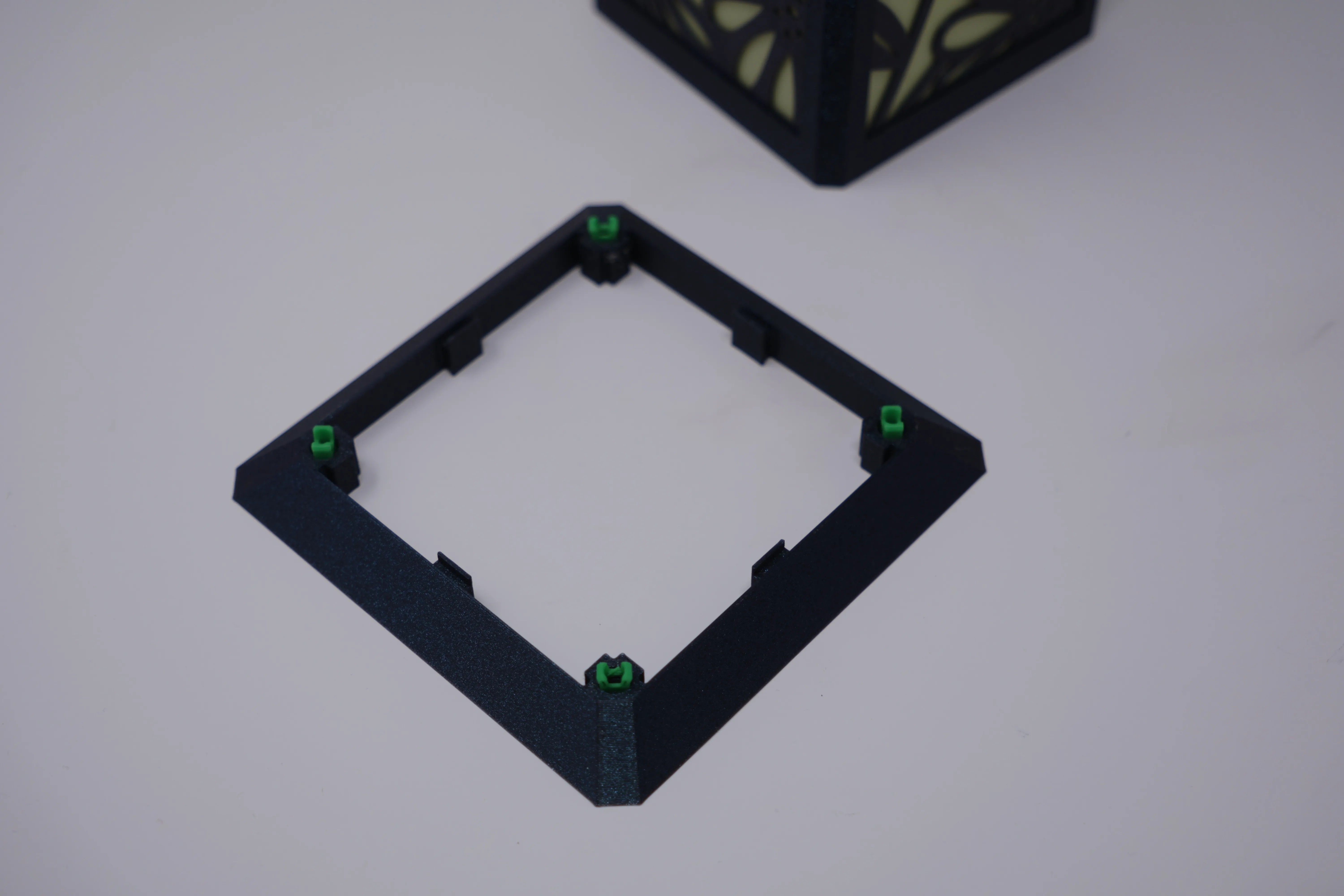

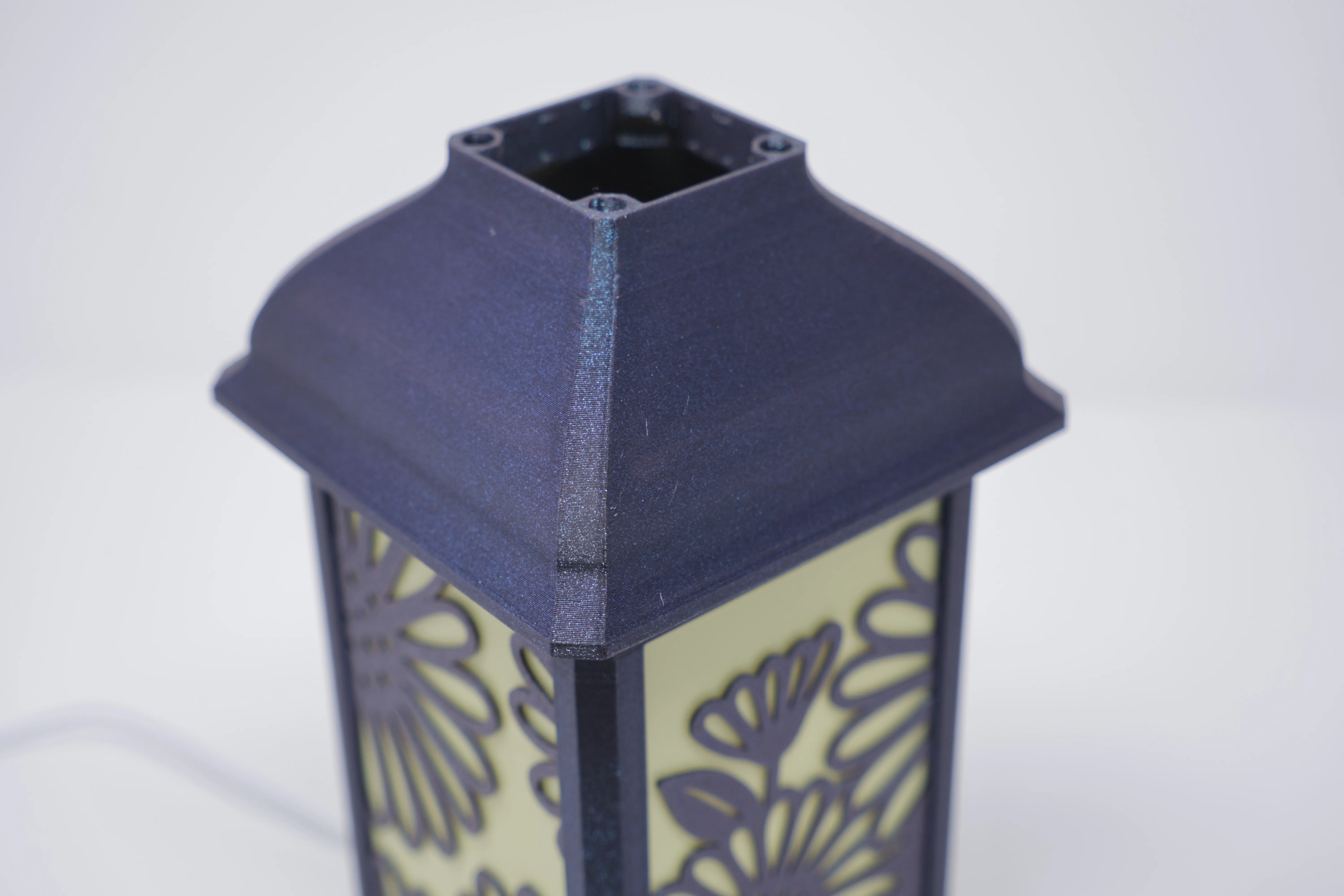

Now add 4 more clips into the top of the spacer and push the top onto it:

Blank Topper With Clip

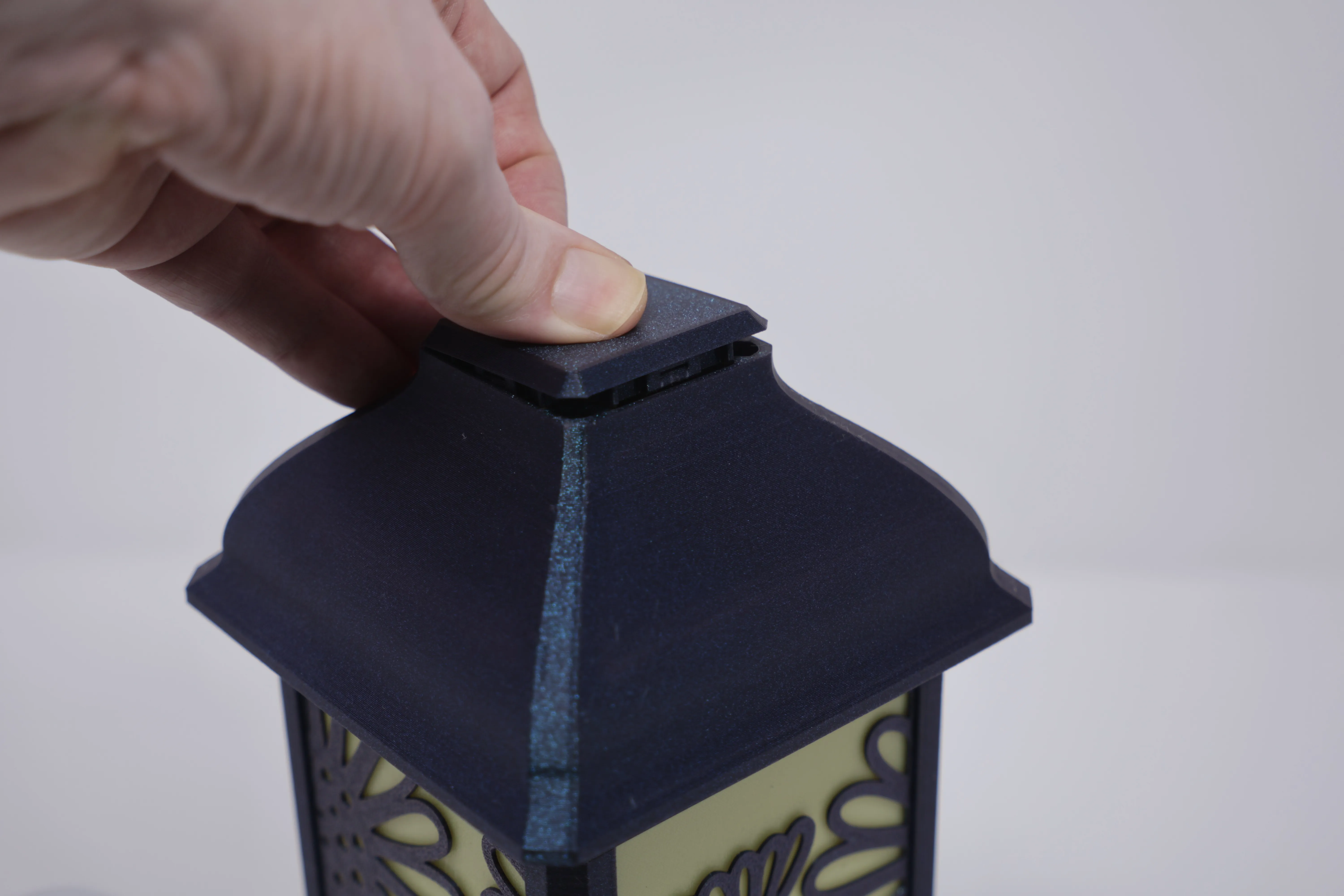

Next find the topper and just push it on, no magnets or clips required.

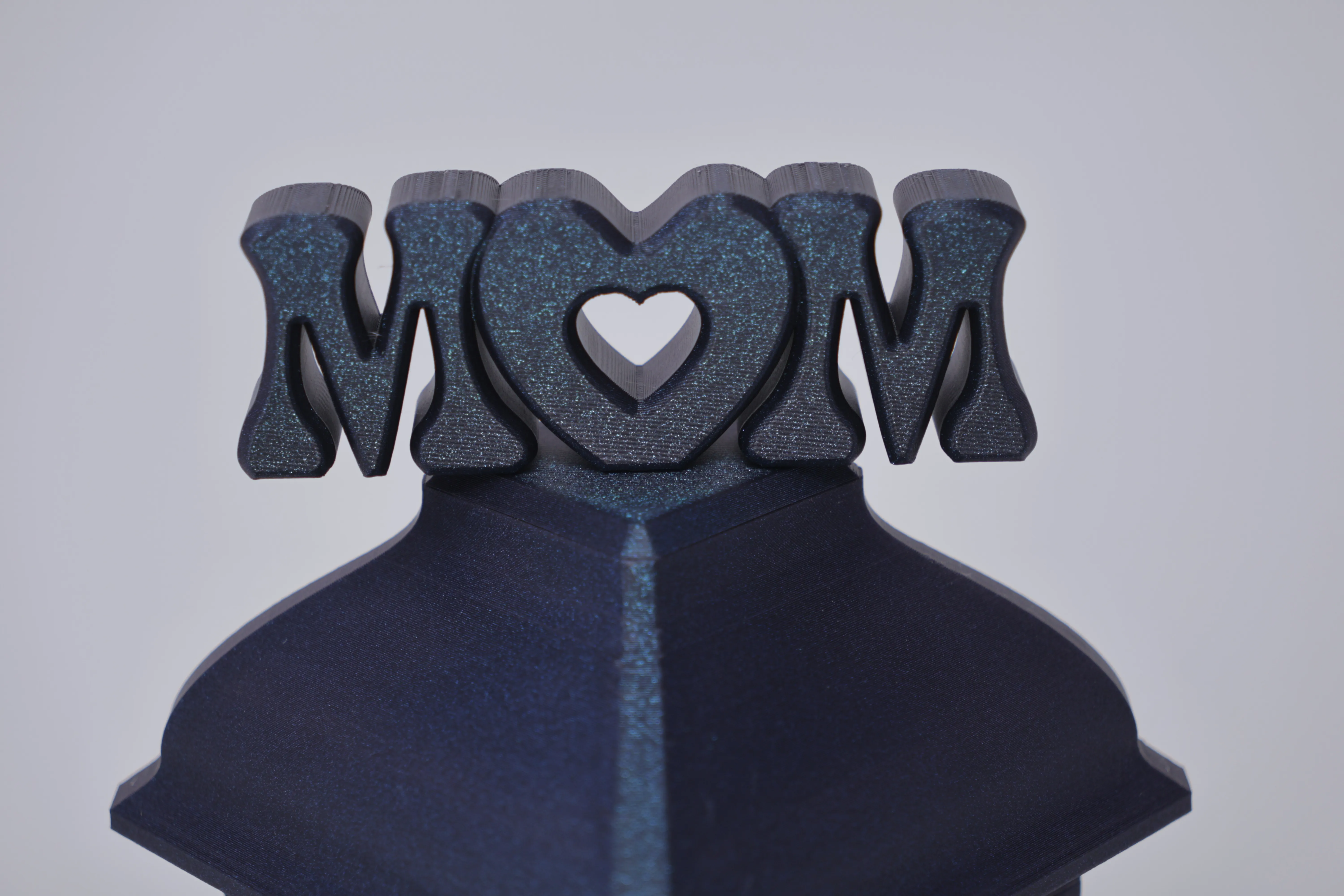

Mom Decorator

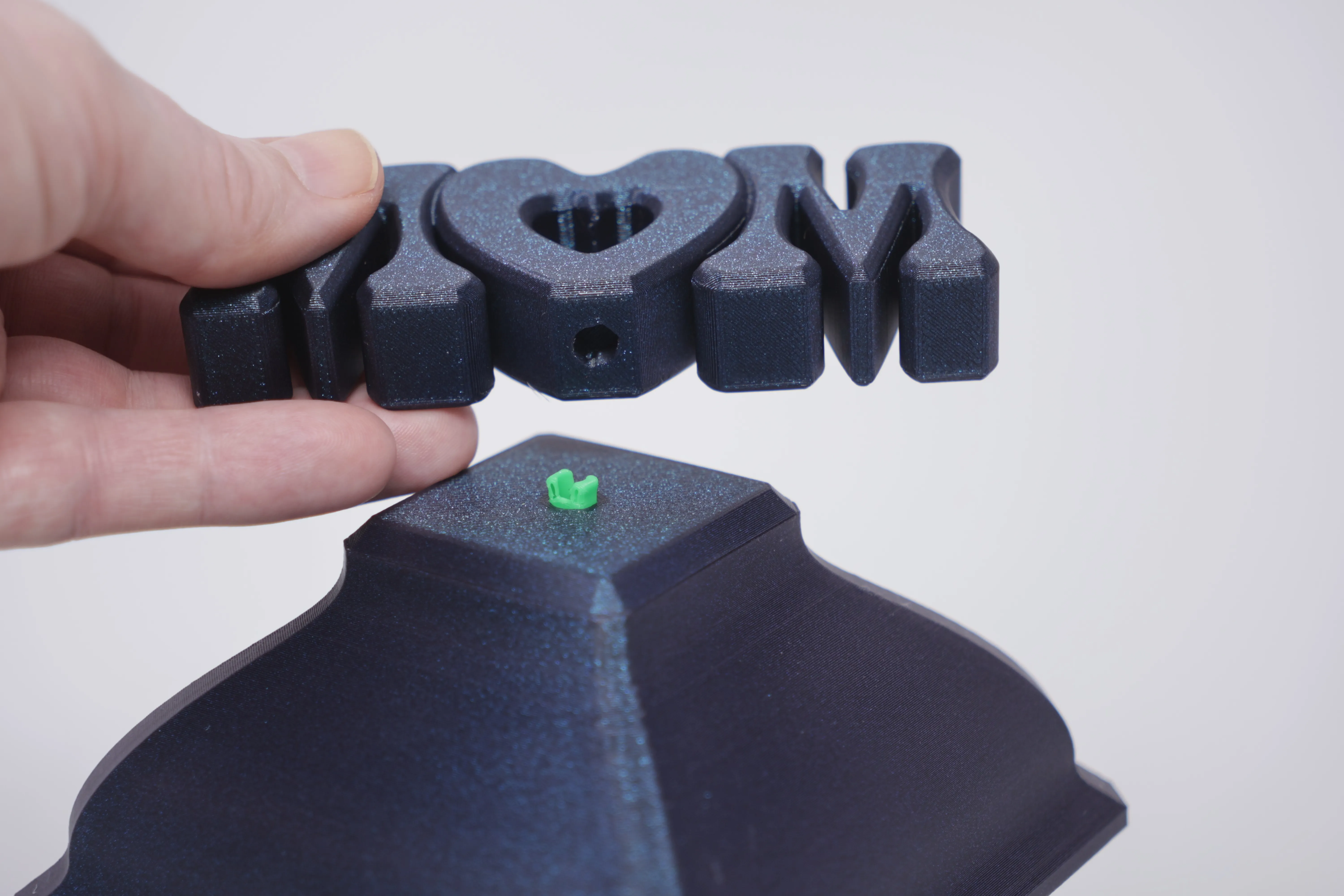

Now add a MagFit to attach the Mom decorator or any other decorator from the many available. Note the 45 degree angle of the connector in the bottom of the Mom. I suggest lining up the lantern like I have in the phot below and then connecting it as shown.

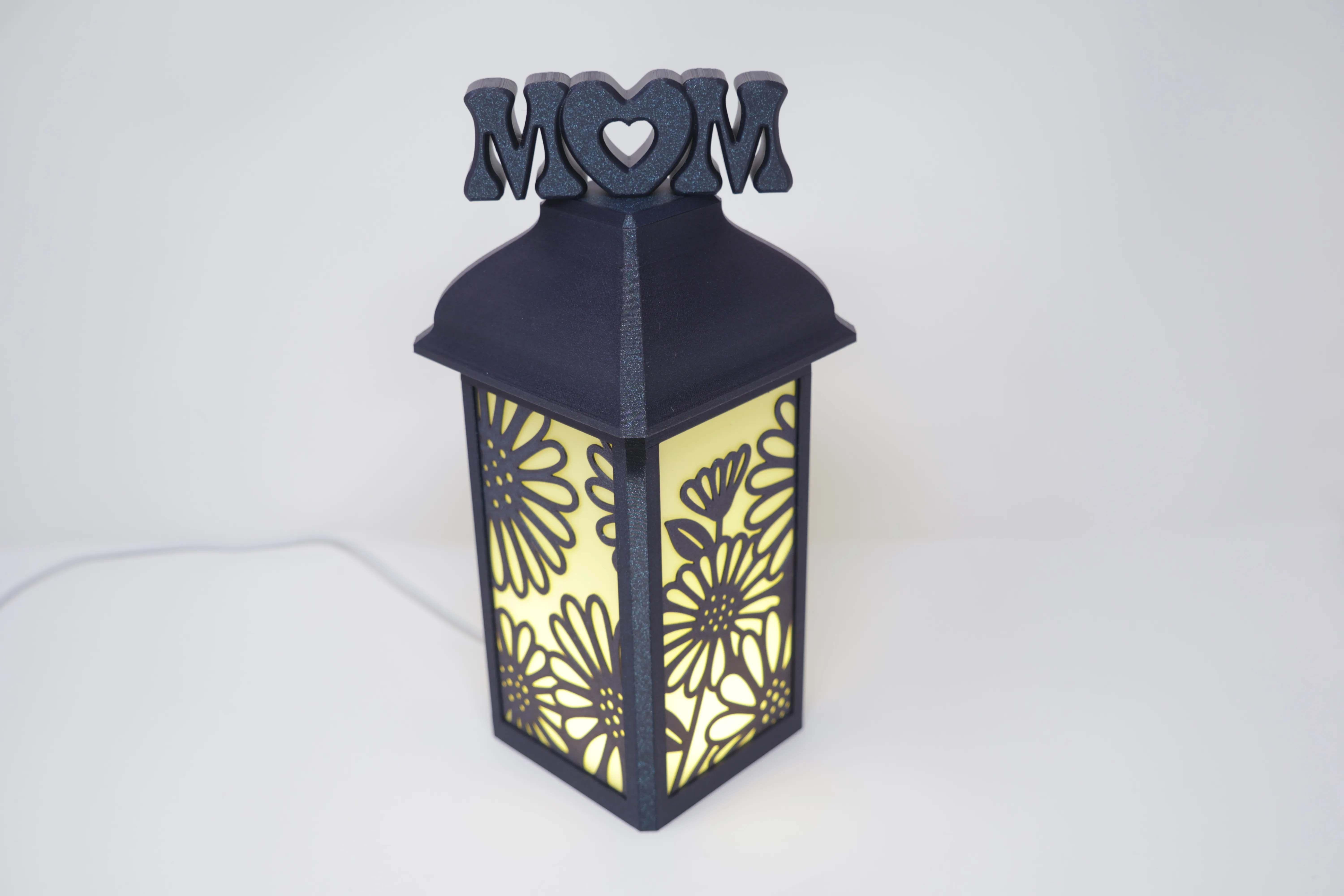

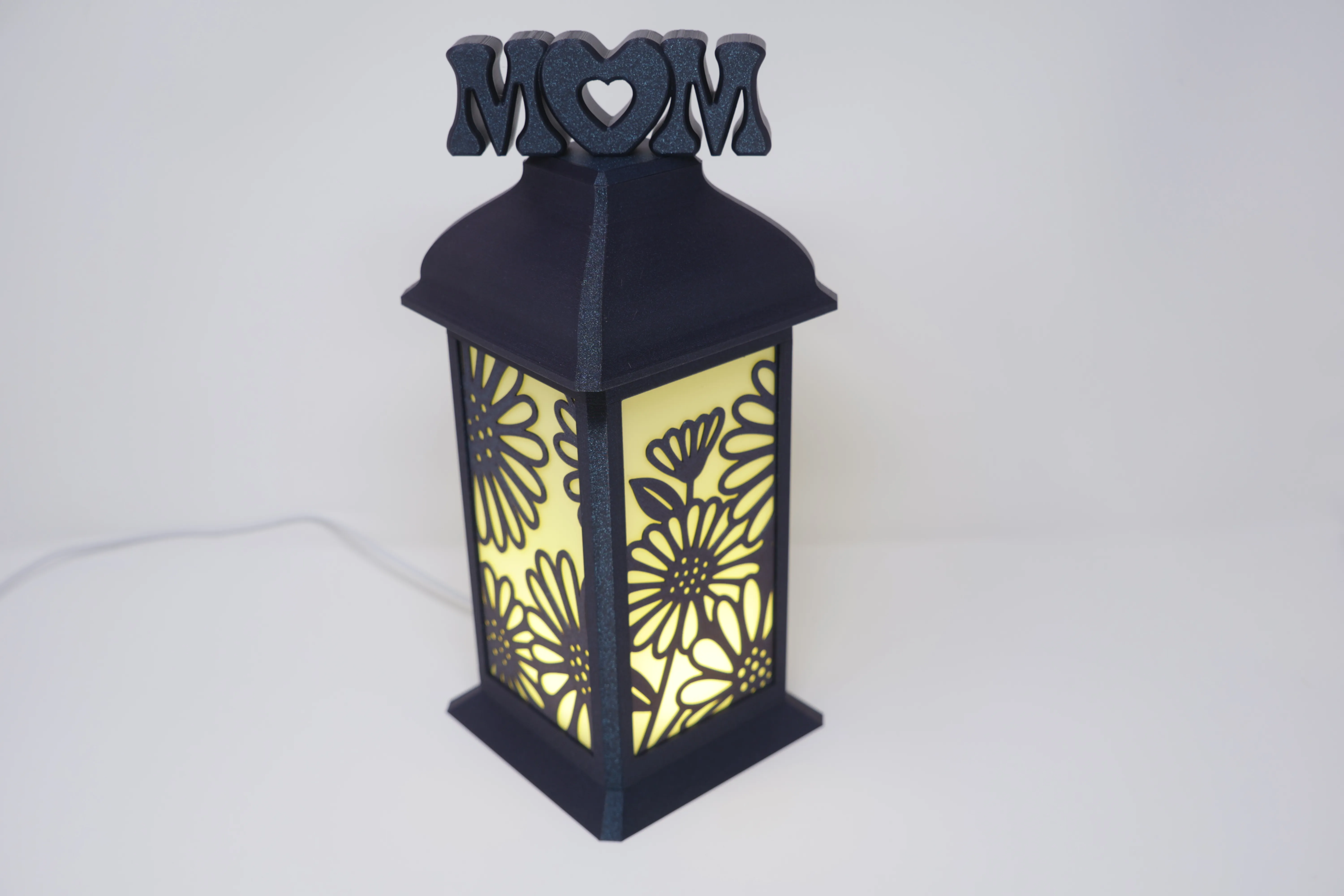

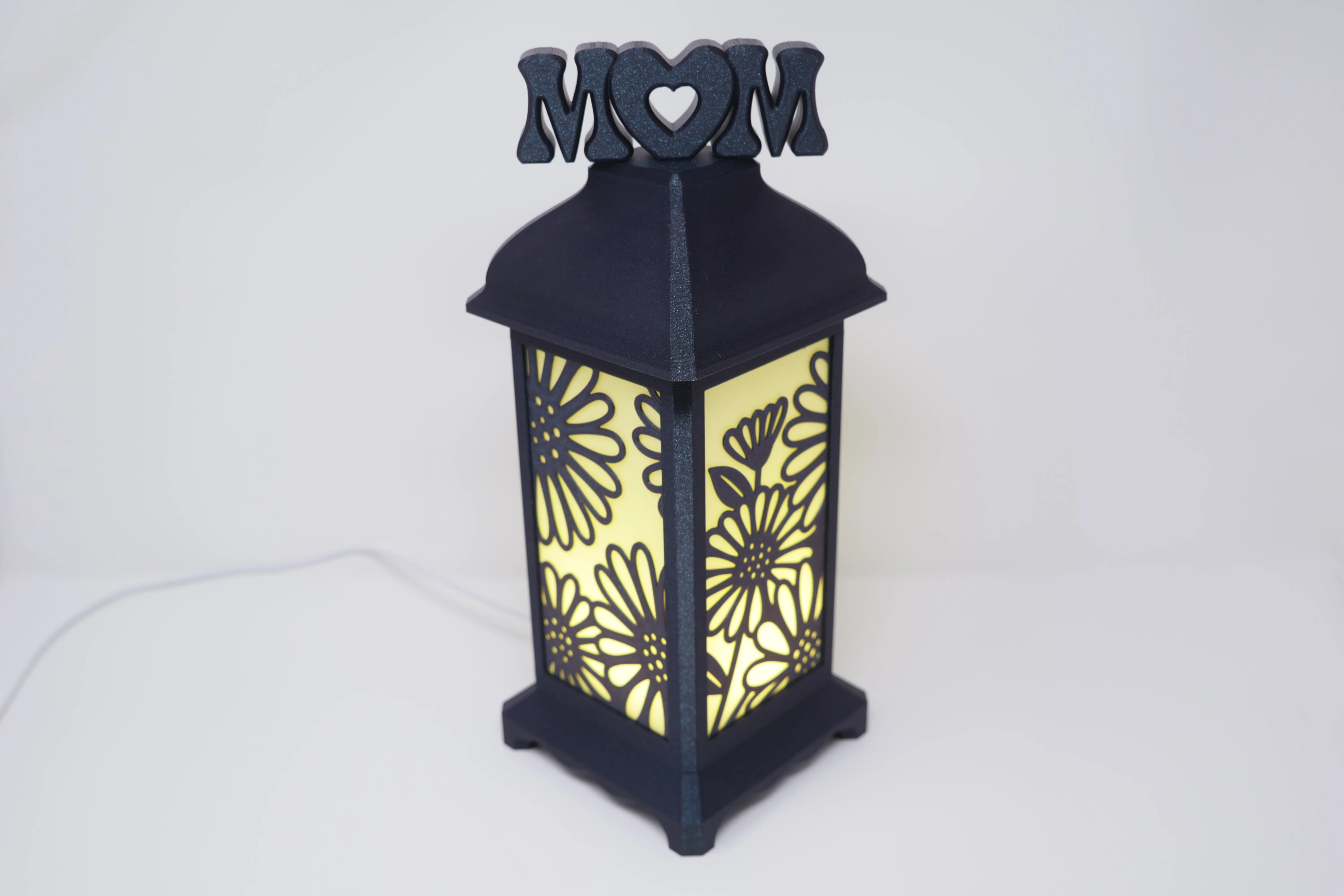

You now have a complete lantern:

Skirts

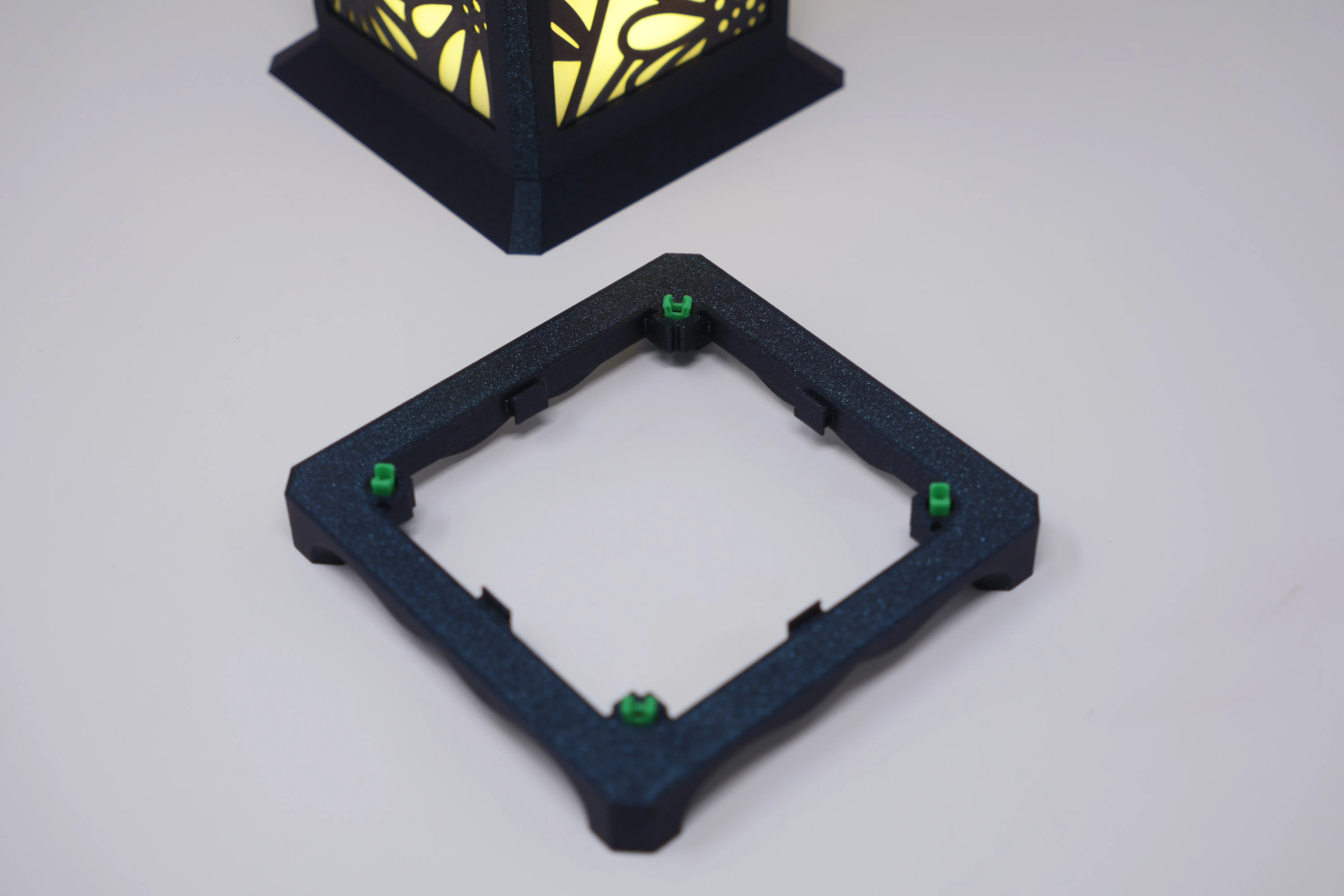

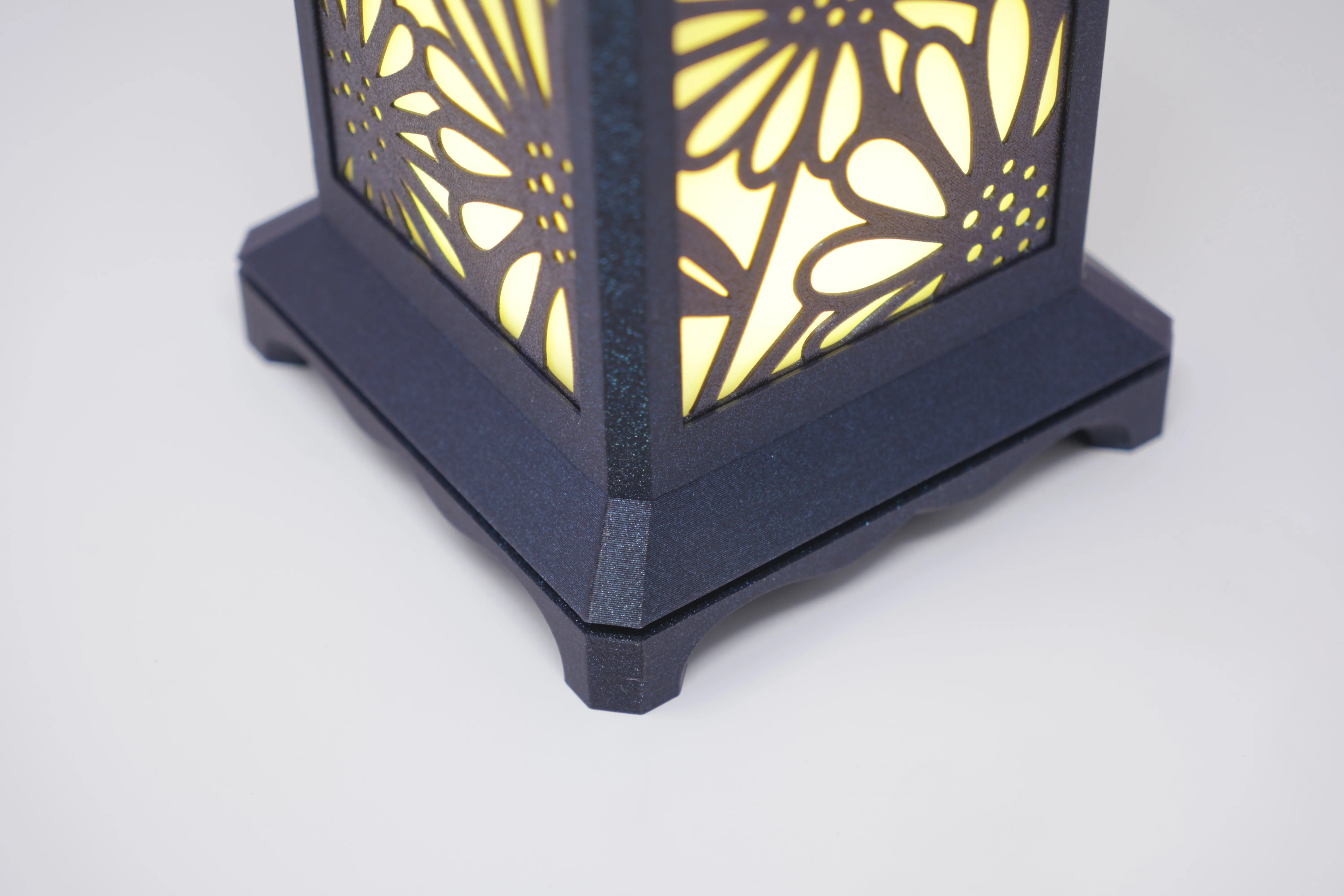

Skirt models can add that final flare to the lantern there are several styles available two of which are included in this profile. First attach the Straight skirt:

That may be enough but the lantern stack can continue with the serpentine skirt which attaches to the base of the straight skirt above:

That's it for this print profile. The below inserts continue the set and are available on my Patreon.
