Purge Waste Ramp and Collection Bin – Elegoo Centauri Carbon 2
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    2-disc

    PETG

    Designer

29

55

1.3k

385

Released 2026-01-16
Details
Files(5)
Makes & Comments (0)

Purge Waste Ramp and Collection Bin – Elegoo Centauri Carbon 2

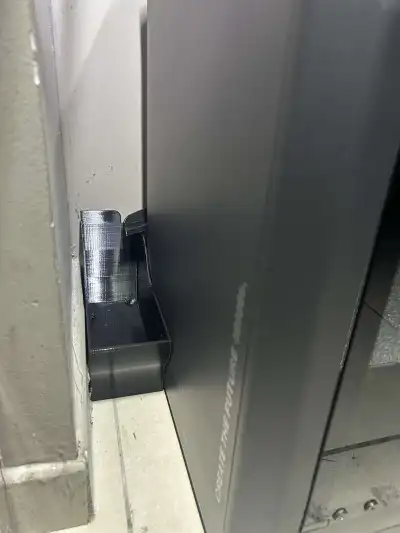

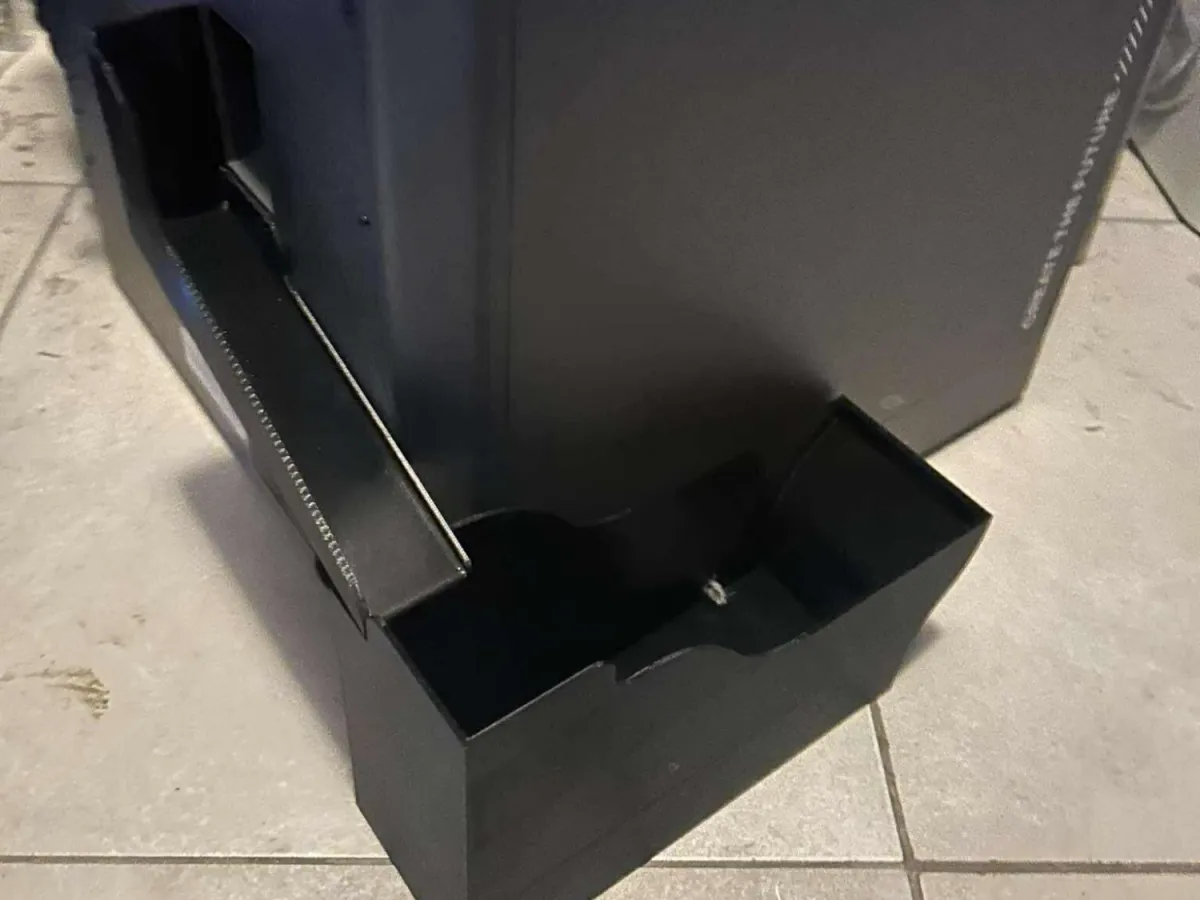

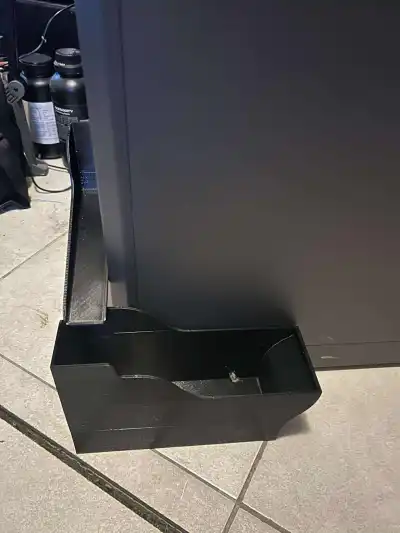

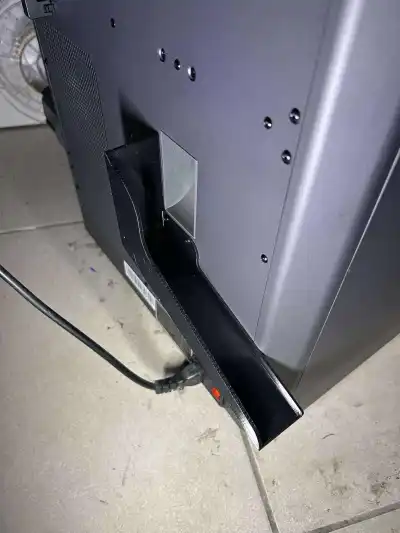

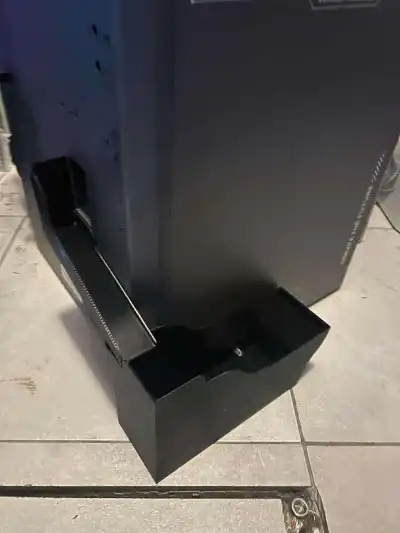

This model consists of a guiding ramp and a collection bin, designed to channel and collect purge waste from the Elegoo Centauri Carbon 2.

The ramp guides purge material directly into the bin, preventing waste from falling onto the floor or behind the machine.

📐 Dimensions

  • Ramp
    • Width: 40 mm
  • Collection bin
    • Width: 85 mm
    • Length: 252 mm

🖨️ Recommended material

  • PETG recommended

PETG is preferred to reduce adhesion of purge waste on the ramp surface and to ensure better durability over time.
PLA can be used but may cause purge material to stick more easily.

ℹ️ Notes

  • Designed for easy printing
  • No supports required
  • Simple installation
  • No permanent modification to the machine
  • Easy to remove and clean
  • Suitable for regular use, including multi-material printing

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
